SHIWOSI G3 Industrial Wet & Dry Vacuum | 380 V
Heavy-duty 380 V wet and dry industrial vacuum for fine and coarse solids, debris and contaminated liquids.
Get a Factory Quote
Configuration supportMachine selection based on your task
Export documentationConfirm documents by model and market
After-Sales & Spare Parts SupportMaintenance and spare-parts planning
Product information
Product Description
Heavy-duty 380 V wet and dry industrial vacuum for fine and coarse solids, debris and contaminated liquids.
G3 Configuration
The G3 is a 380 V wet and dry industrial vacuum with a stainless-steel collection vessel.
Technical data
Complete specifications
Values shown are for the available industrial vacuum configurations. Confirm the final model and voltage before ordering.
| Item | G3 | G3-1 | G3-2 | G3-3 | G3-4 |
|---|---|---|---|---|---|
| Machine Type | Industrial Wet & Dry Vacuum | ||||
| Rated Power | 0.75 kW | 1.5 kW | 2.2 kW | 3 kW | 4 kW |
| Max Air Flow | 145m3/h | 210m3/h | 318m3/h | 318m3/h | 420m3/h |
| Max Pressure | 120 mbar | 200 mbar | 210 mbar | 270 mbar | 290 mbar |
| Machine Weight | 28 kg | 38 kg | 40 kg | 45 kg | 55 kg |
| Voltage | 380 V/220 V | 380 V | |||
| Dust Cleaning Method | Manual cleaning | ||||
| Filter Configuration | Dustbag-HEPA High-Efficiency filter | ||||
| Filtration Accuracy | 0.3um | ||||
| Filtration Area | 12500 cm2 | ||||
| Container Capacity | 30 L | ||||
| Dimensions | 760 x 450 x 690 mm | ||||
| Power Supply | 380 V | ||||
| Filtration | H-class dust filtration | ||||
| Collection Bin | Acid-resistant stainless steel | ||||
| Suitable Materials | Dust, debris and contaminated liquids | ||||
Technical data
Complete specifications
Values apply to the listed configuration. Confirm final specifications before placing an order.
- Model
- G3
- Machine Type
- Industrial Wet & Dry Vacuum
- Model Options
- G3 / G3-1 / G3-2 / G3-3 / G3-4
- Rated Power
- G3: 0.75 kW; G3-1: 1.5 kW; G3-2: 2.2 kW; G3-3: 3 kW; G3-4: 4 kW
- Max Air Flow
- G3: 145m3/h; G3-1: 210m3/h; G3-2: 318m3/h; G3-3: 318m3/h; G3-4: 420m3/h
- Max Pressure
- G3: 120 mbar; G3-1: 200 mbar; G3-2: 210 mbar; G3-3: 270 mbar; G3-4: 290 mbar
- Machine Weight
- G3: 28 kg; G3-1: 38 kg; G3-2: 40 kg; G3-3: 45 kg; G3-4: 55 kg
- Voltage
- G3: 380 V/220 V; G3-1: 380 V
- Dust Cleaning Method
- G3: Manual cleaning
- Filter Configuration
- G3: Dustbag-HEPA High-Efficiency filter
- Filtration Accuracy
- G3: 0.3um
- Filtration Area
- G3: 12500 cm2
- Container Capacity
- G3: 30 L
- Dimensions
- G3: 760 x 450 x 690 mm
- Power Supply
- 380 V
- Filtration
- H-class dust filtration
- Collection Bin
- Acid-resistant stainless steel
- Suitable Materials
- Dust, debris and contaminated liquids
Product Highlights

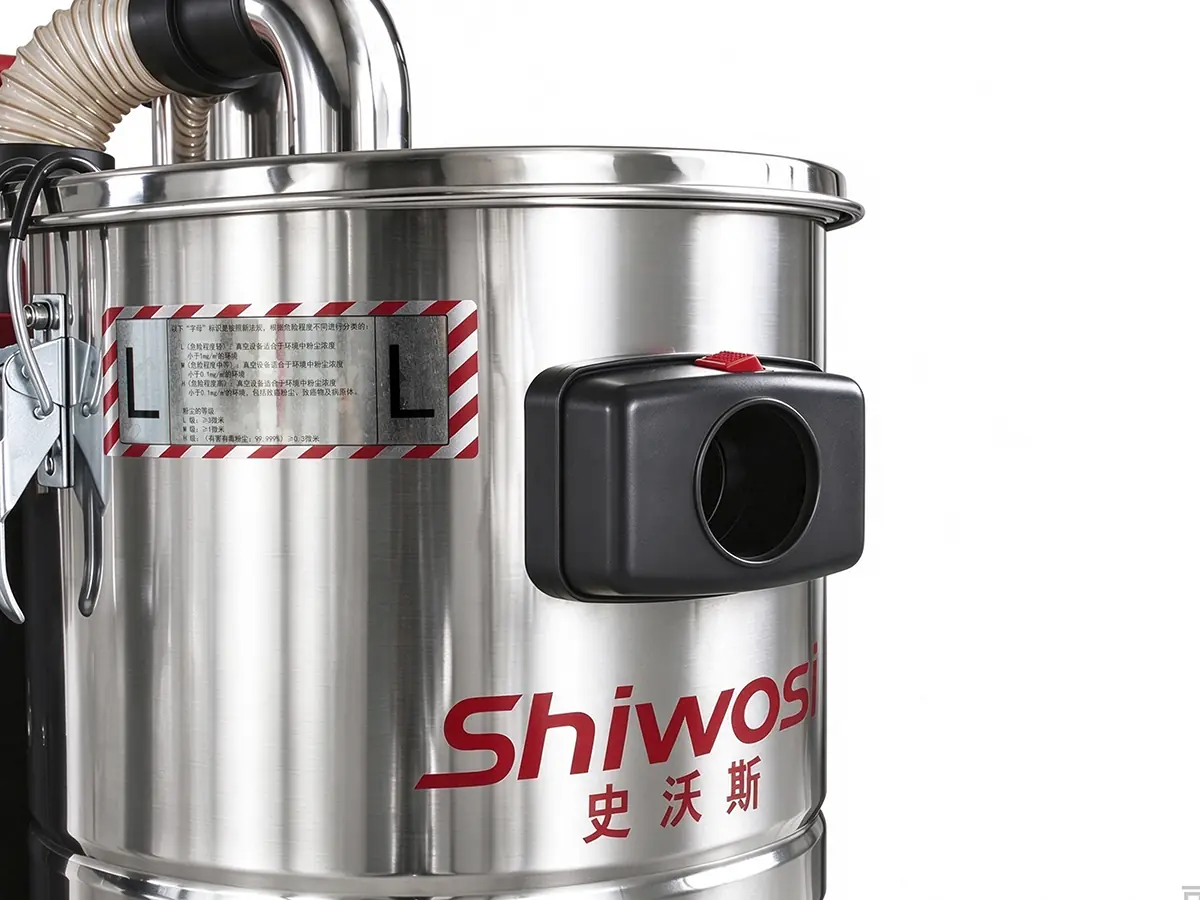

Collection Vessel Detail
Close-up of the stainless-steel collection vessel and side fitting.

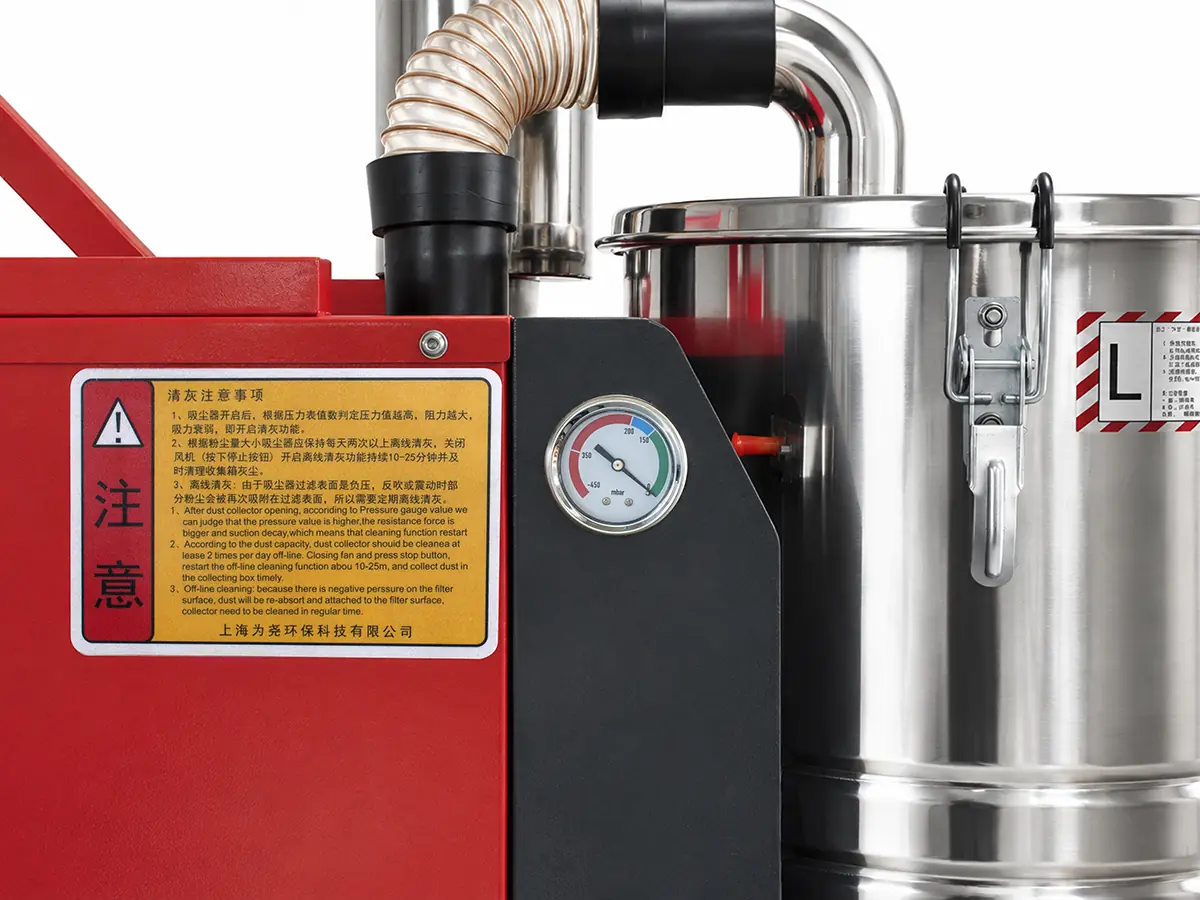

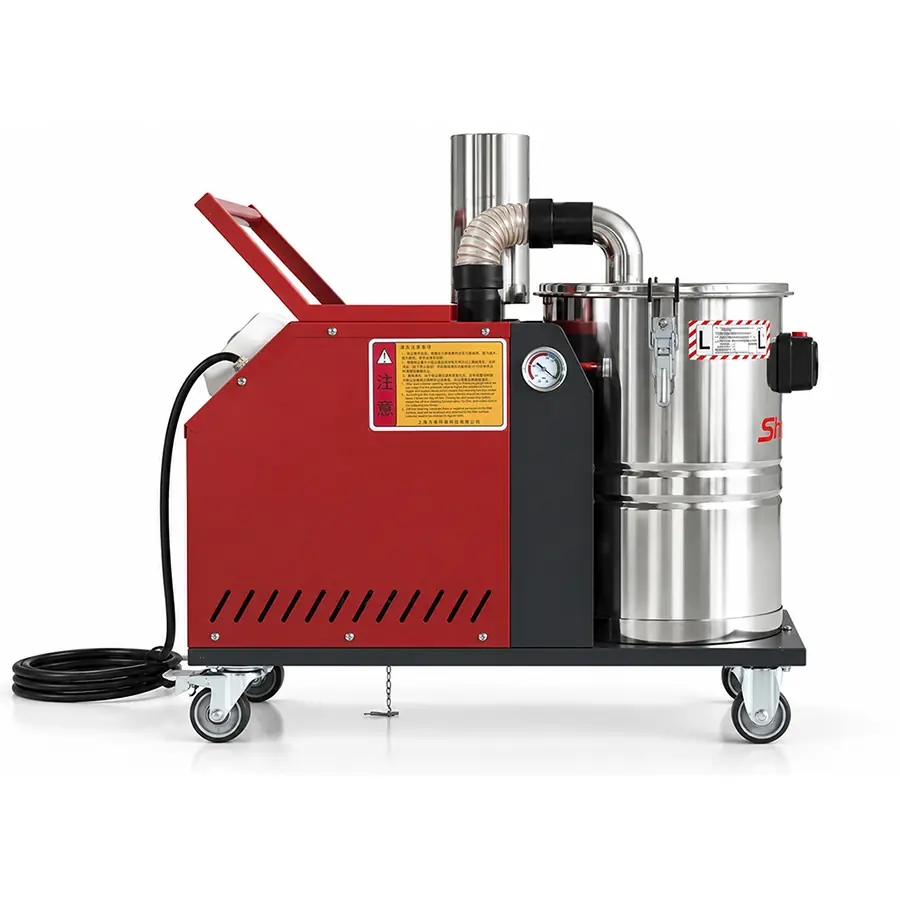

Vacuum Pressure Gauge
Pressure gauge mounted on the machine housing.

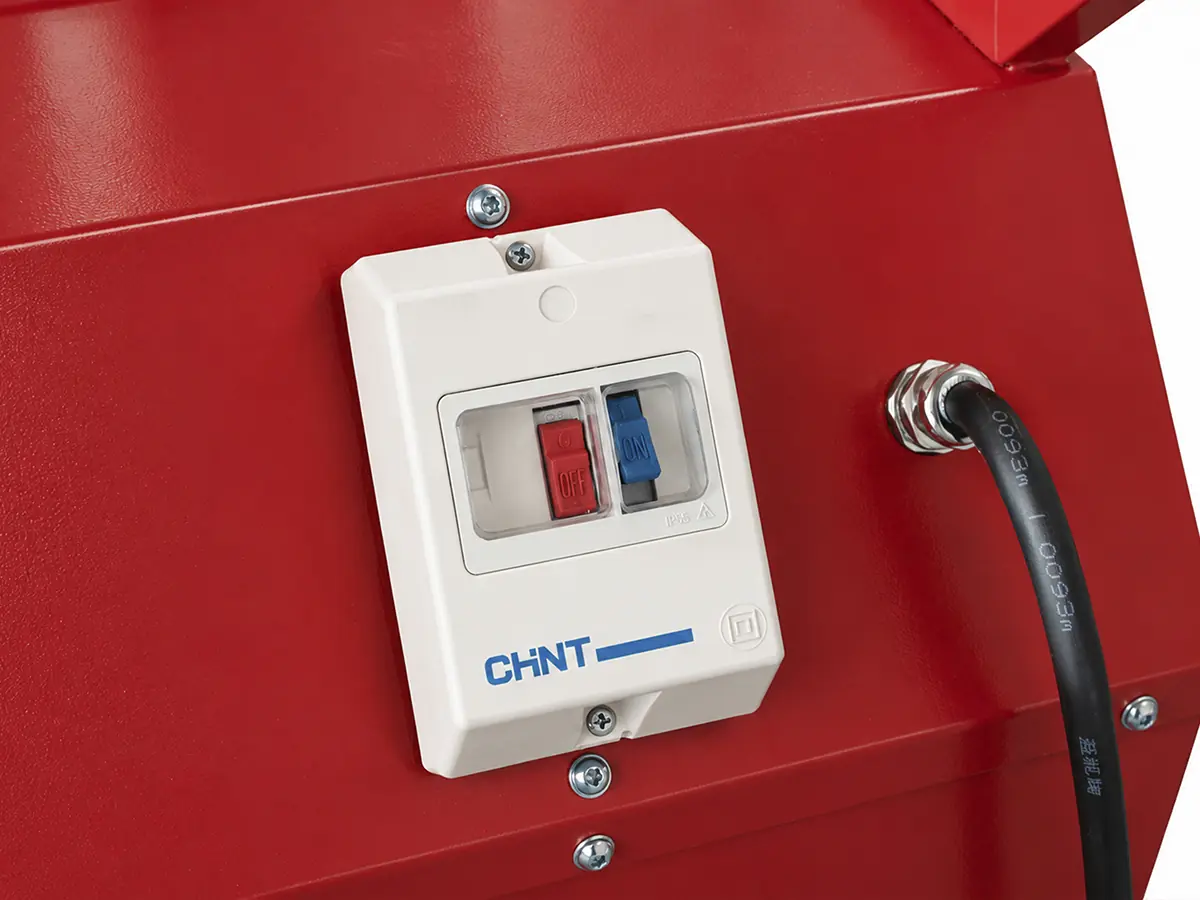

Control Panel
Operating buttons and power connection on the rear panel.

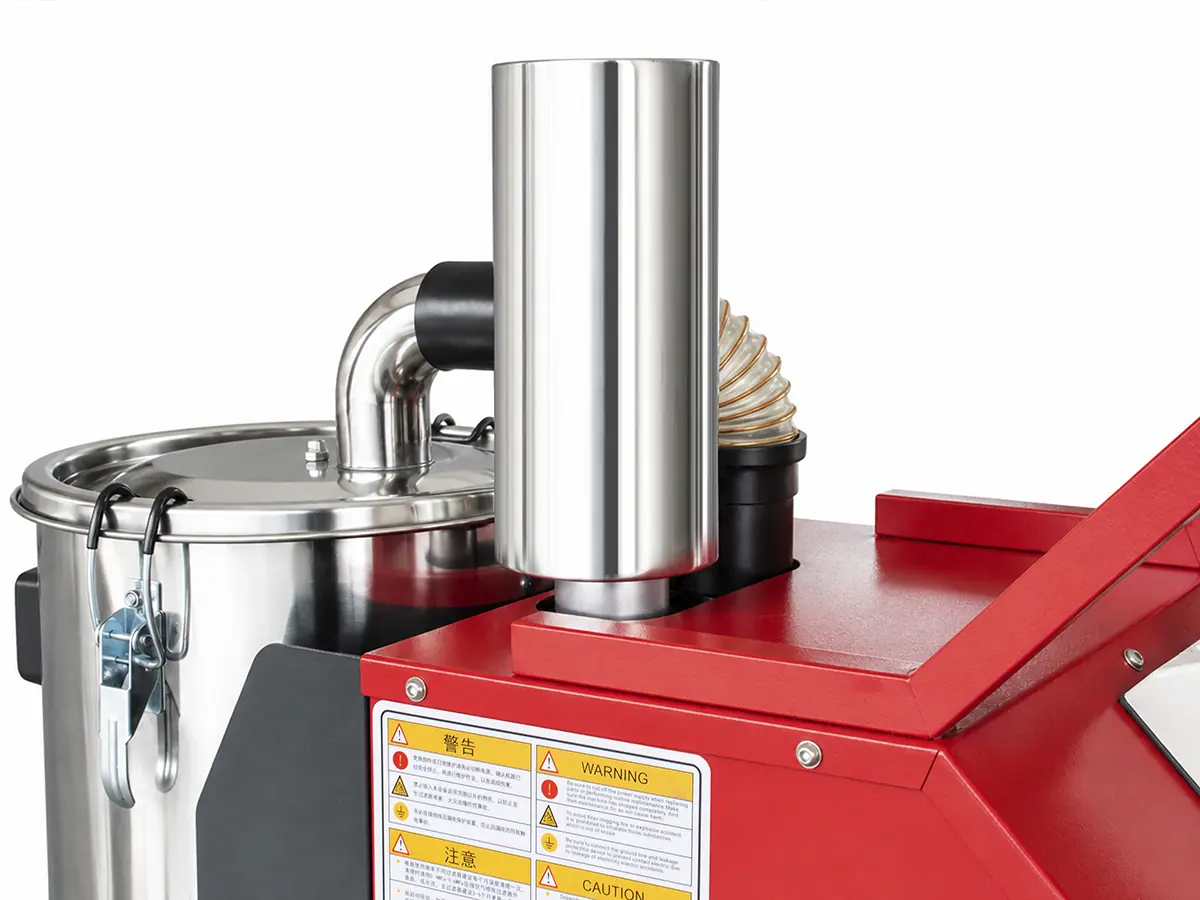

Upper Vacuum Assembly
Collection vessel and upper vacuum assembly.

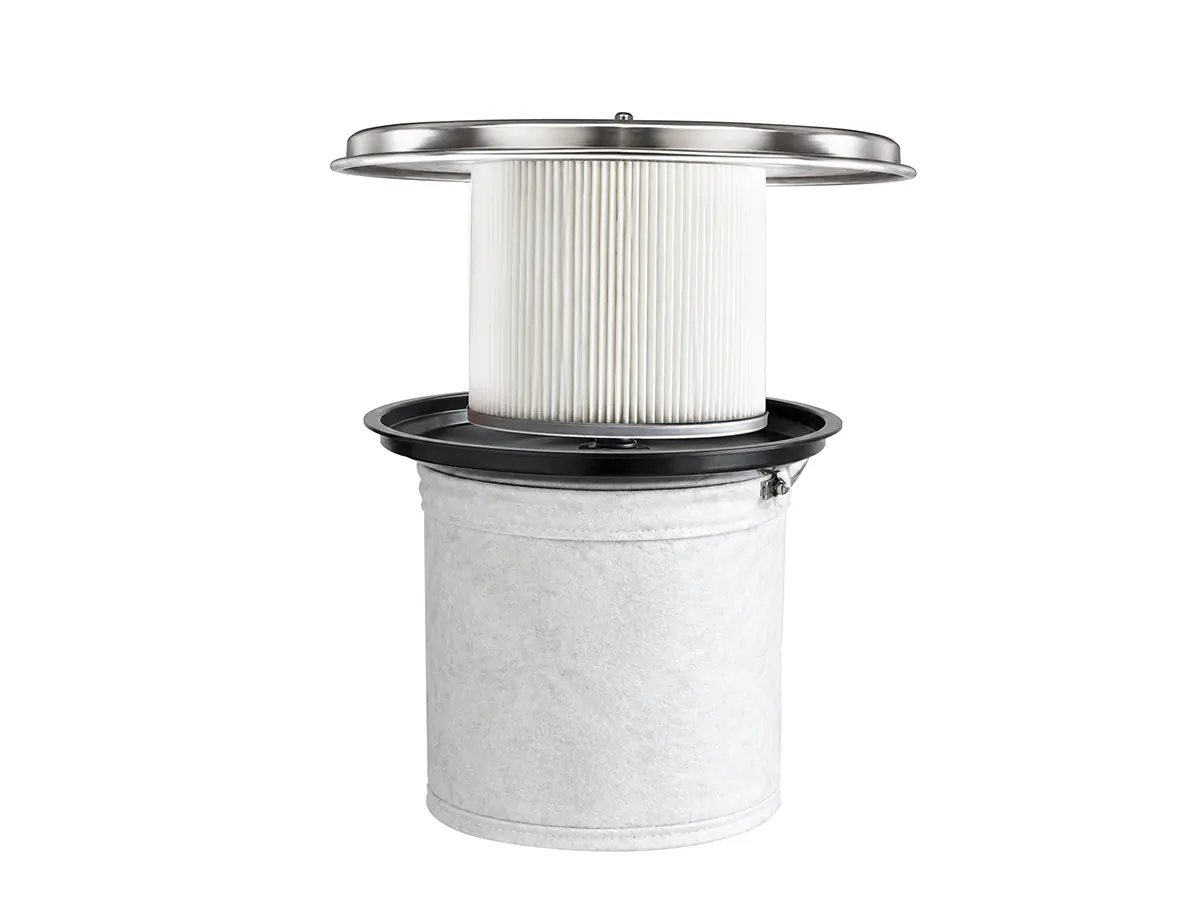

Filter Bag
The G3 filter information specifies HEPA media and 0.3 μm filtration accuracy.

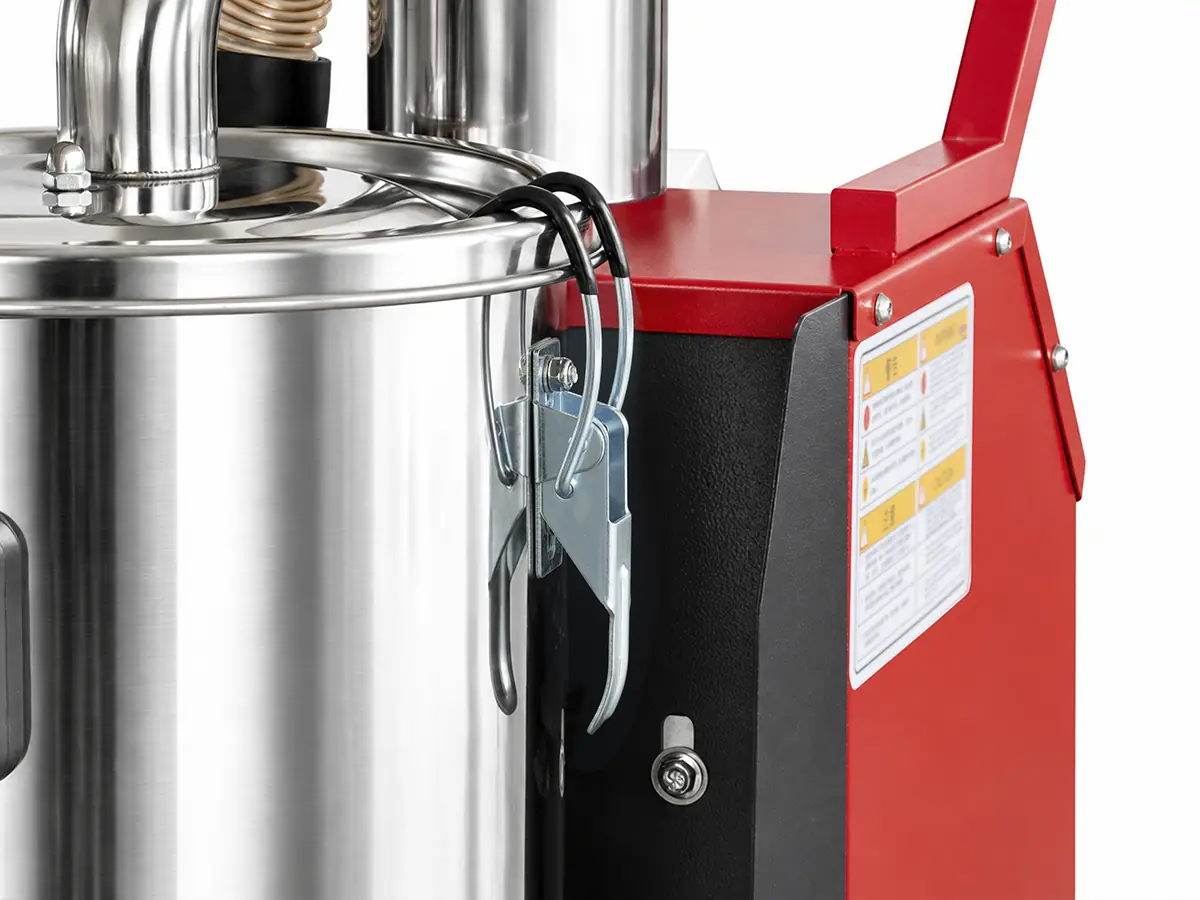

Collection Bin Clamp
Latch detail on the collection vessel.

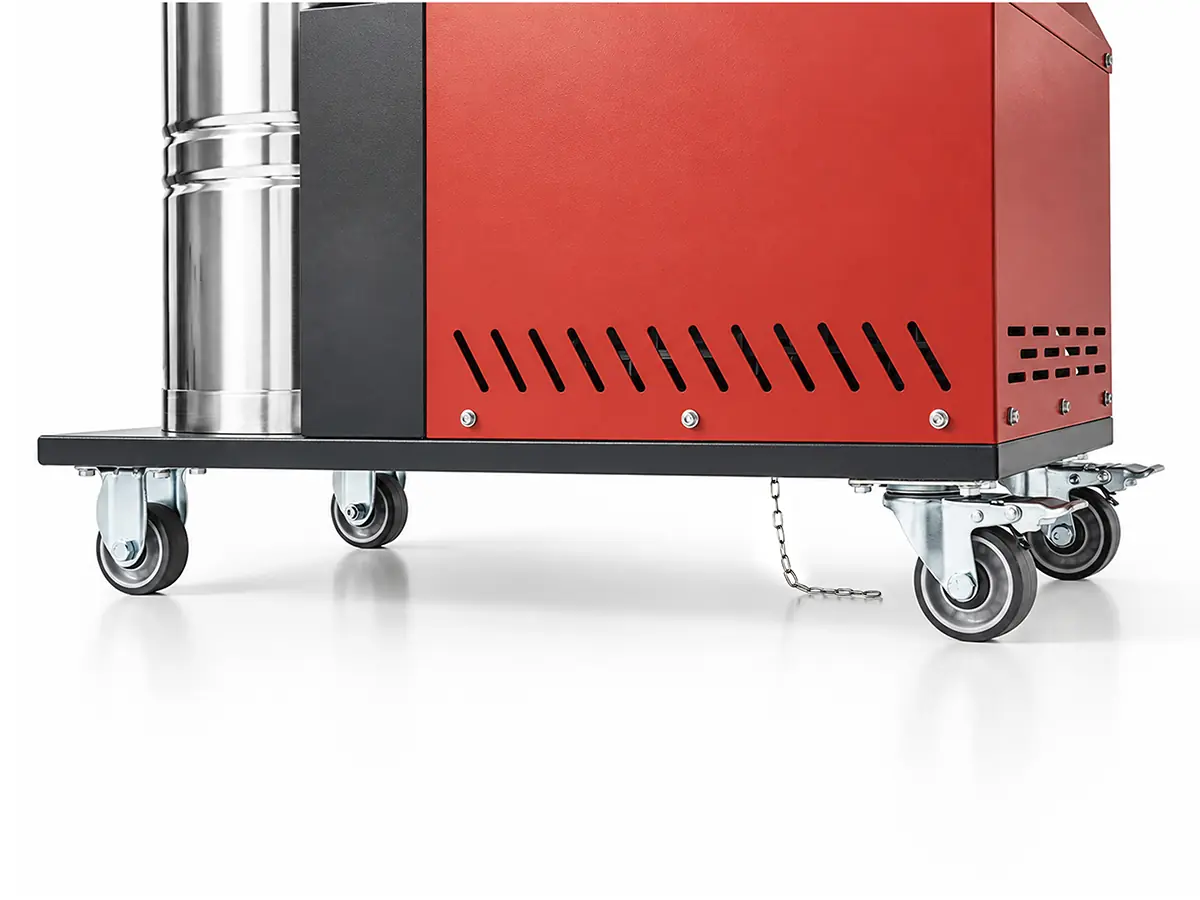

Caster Base
The G3 uses swivel and fixed casters for movement and support.
Vacuum Pressure Display
Digital pressure display shown at the inlet assembly.

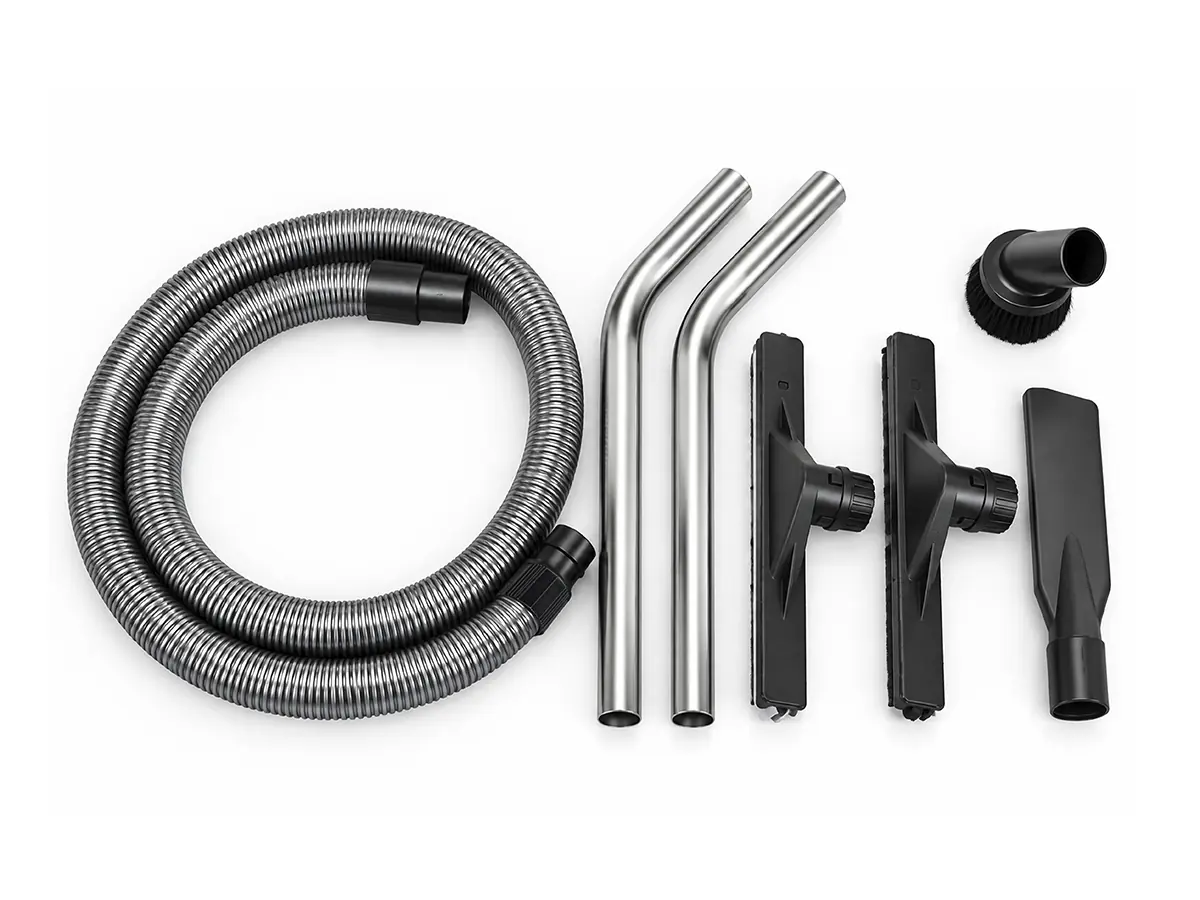

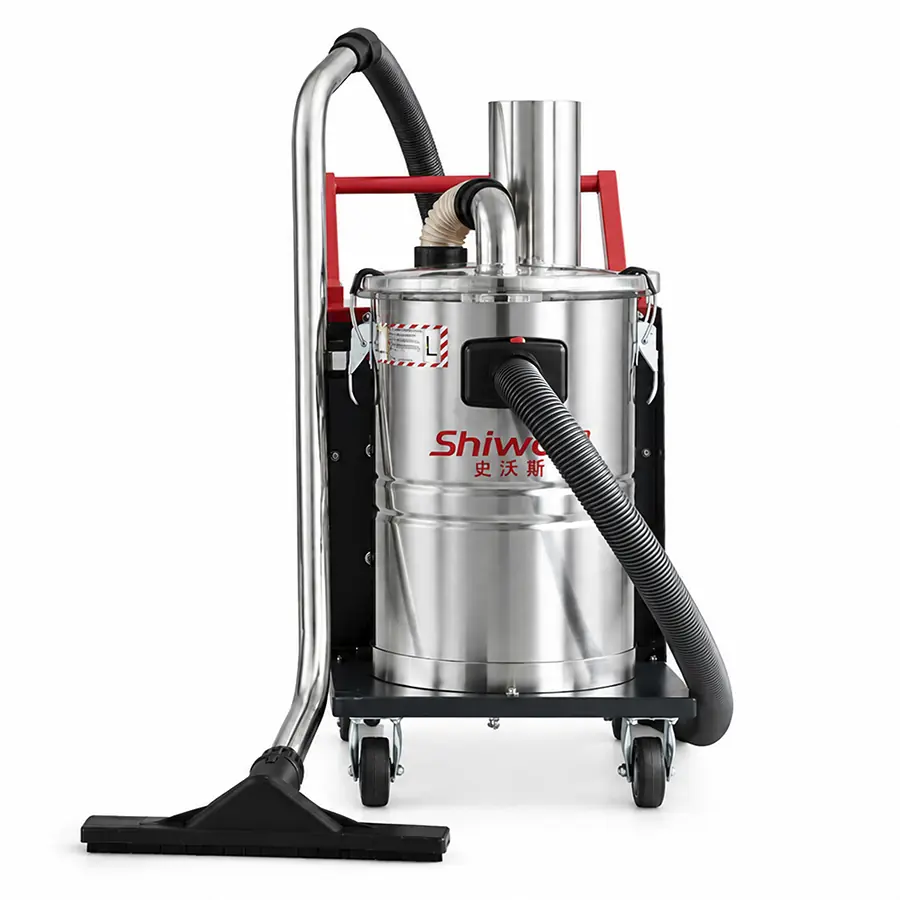

50 mm Suction Accessories
Vacuum hose, wet/dry brush, flat nozzle, metal tube and round brush. The front squeegee is optional.
Typical applications
Heavy-duty 380 V wet and dry industrial vacuum for fine and coarse solids, debris and contaminated liquids.
Configuration before ordering
Confirm the material, dust type, required airflow or vacuum, operating duration, power supply, collection method and attachments for the selected model before ordering.
