SHIWOSI X5/X5 Pro Industrial Wet & Dry Vacuum | 220/380 V
General-purpose wet and dry industrial vacuum for fine and coarse solids, debris and contaminated liquids.
Get a Factory Quote
Configuration supportMachine selection based on your task
Export documentationConfirm documents by model and market
After-Sales & Spare Parts SupportMaintenance and spare-parts planning
Product information
Product Description
General-purpose wet and dry industrial vacuum for fine and coarse solids, debris and contaminated liquids.
X5 / X5 Pro Configuration
The X5 and X5 Pro are wet and dry industrial vacuum configurations for solids, debris and compatible liquids.
Technical data
Complete specifications
Values shown are for the available industrial vacuum configurations. Confirm the final model and voltage before ordering.
| Item | X5-2 | X5-3 | X5-4 | X5pro-2 | X5Pro-3 | X5pro-4 |
|---|---|---|---|---|---|---|
| Machine Type | Industrial Wet & Dry Vacuum | |||||
| Rated Power | 2.2 kW | 3 kW | 4 kW | 2.2 kW | 3 kW | 4 kW |
| Max Air Flow | 318m3/h | 318m3/h | 420m3/h | 318m3/h | 318m3/h | 420m3/h |
| Max Pressure | 210 mbar | 270 mbar | 290 mbar | 210 mbar | 270 mbar | 290 mbar |
| Machine Weight | 45 kg | 50 kg | 60 kg | 45 kg | 50 kg | 60 kg |
| Voltage | 380 V/220 V | 380 V | 380 V | 380 V/220 V | 380 V | 380 V |
| Dust Cleaning Method | Manual Cleaning | One-Click reverse blow cleaning | ||||
| Filter Configuration | Dust bag+HEPA High-efficiency Filter | PTFE Coated Polyester Cartridge | ||||
| Filtration Accuracy | 0.3um | |||||
| Filtration Area | 25000cm2 | |||||
| Container Capacity | 80 L | |||||
| Dimensions | 1050 x 520 x 820 mm | |||||
| Power Options | 220 V / 380 V | |||||
| Filtration | H-class dust filtration | |||||
| Collection Bin | Acid-resistant stainless steel | |||||
| Suitable Materials | Dust, debris and contaminated liquids | |||||
Technical data
Complete specifications
Values apply to the listed configuration. Confirm final specifications before placing an order.
- Model
- X5 / X5 Pro
- Machine Type
- Industrial Wet & Dry Vacuum
- Model Options
- X5-2 / X5-3 / X5-4 / X5pro-2 / X5Pro-3 / X5pro-4
- Rated Power
- X5-2: 2.2 kW; X5-3: 3 kW; X5-4: 4 kW; X5pro-2: 2.2 kW; X5Pro-3: 3 kW; X5pro-4: 4 kW
- Max Air Flow
- X5-2: 318m3/h; X5-3: 318m3/h; X5-4: 420m3/h; X5pro-2: 318m3/h; X5Pro-3: 318m3/h; X5pro-4: 420m3/h
- Max Pressure
- X5-2: 210 mbar; X5-3: 270 mbar; X5-4: 290 mbar; X5pro-2: 210 mbar; X5Pro-3: 270 mbar; X5pro-4: 290 mbar
- Machine Weight
- X5-2: 45 kg; X5-3: 50 kg; X5-4: 60 kg; X5pro-2: 45 kg; X5Pro-3: 50 kg; X5pro-4: 60 kg
- Voltage
- X5-2: 380 V/220 V; X5-3: 380 V; X5-4: 380 V; X5pro-2: 380 V/220 V; X5Pro-3: 380 V; X5pro-4: 380 V
- Dust Cleaning Method
- X5-2: Manual Cleaning; X5-3: One-Click reverse blow cleaning
- Filter Configuration
- X5-2: Dust bag+HEPA High-efficiency Filter; X5-3: PTFE Coated Polyester Cartridge
- Filtration Accuracy
- X5-2: 0.3um
- Filtration Area
- X5-2: 25000cm2
- Container Capacity
- X5-2: 80 L
- Dimensions
- X5-2: 1050 x 520 x 820 mm
- Power Options
- 220 V / 380 V
- Filtration
- H-class dust filtration
- Collection Bin
- Acid-resistant stainless steel
- Suitable Materials
- Dust, debris and contaminated liquids
Product Highlights

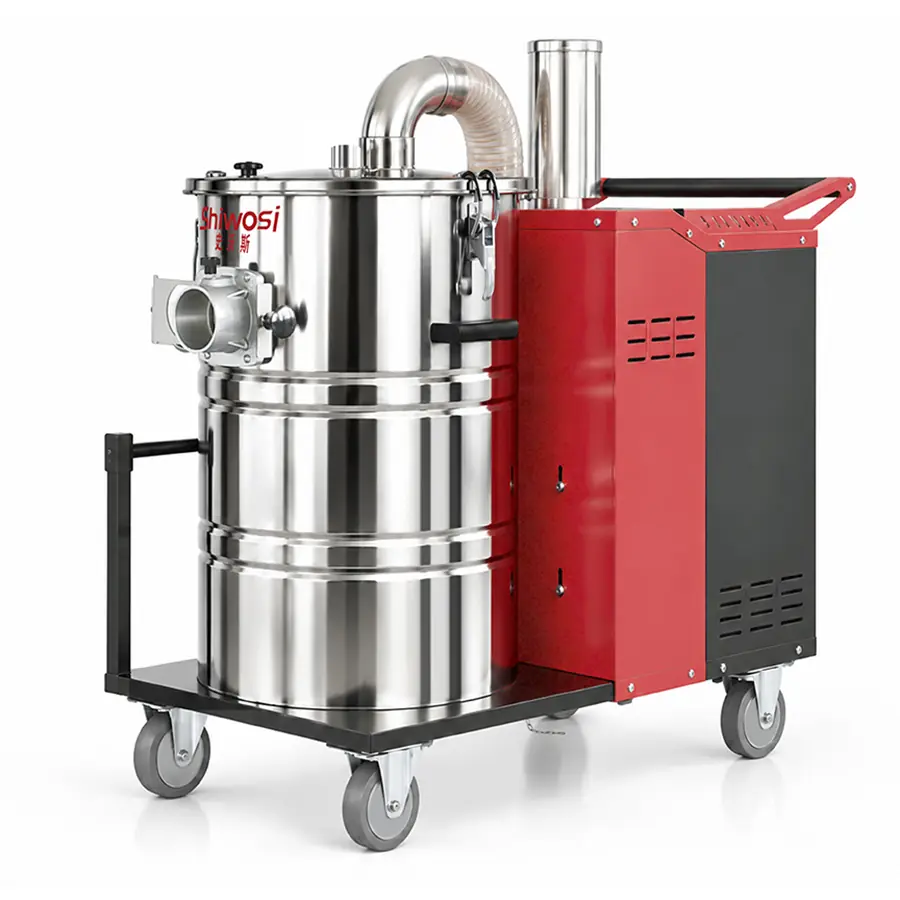

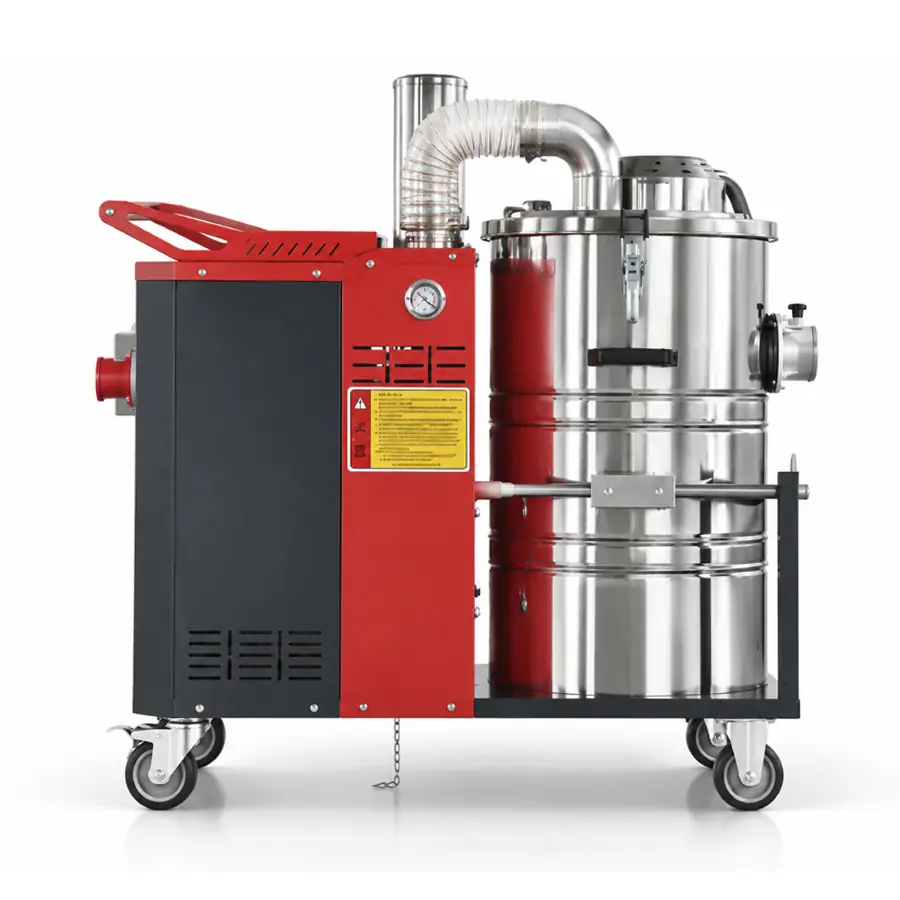

X5 Machine View
Overall view of the X5 collection vessel and mobile frame.

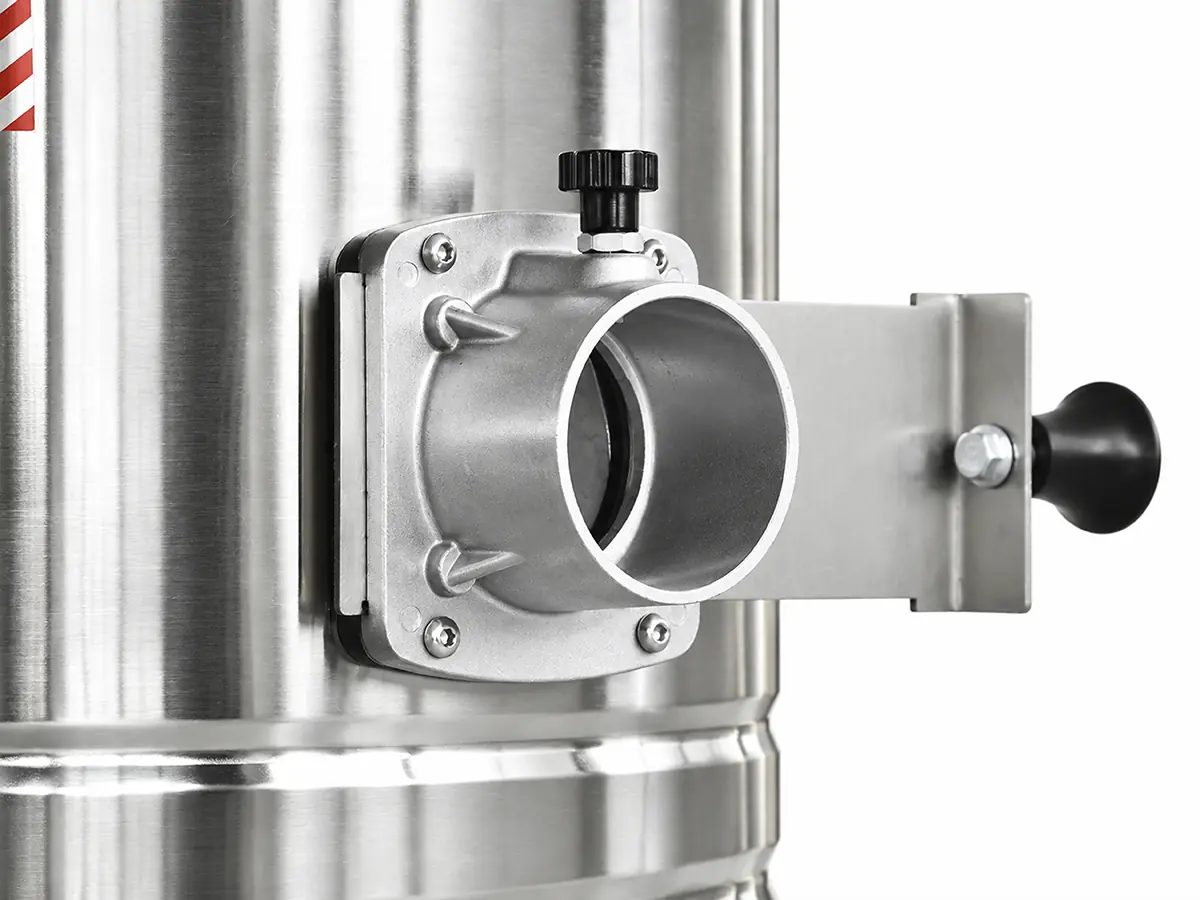

40 mm Cast Aluminum Inlet
40 mm cast aluminum inlet.

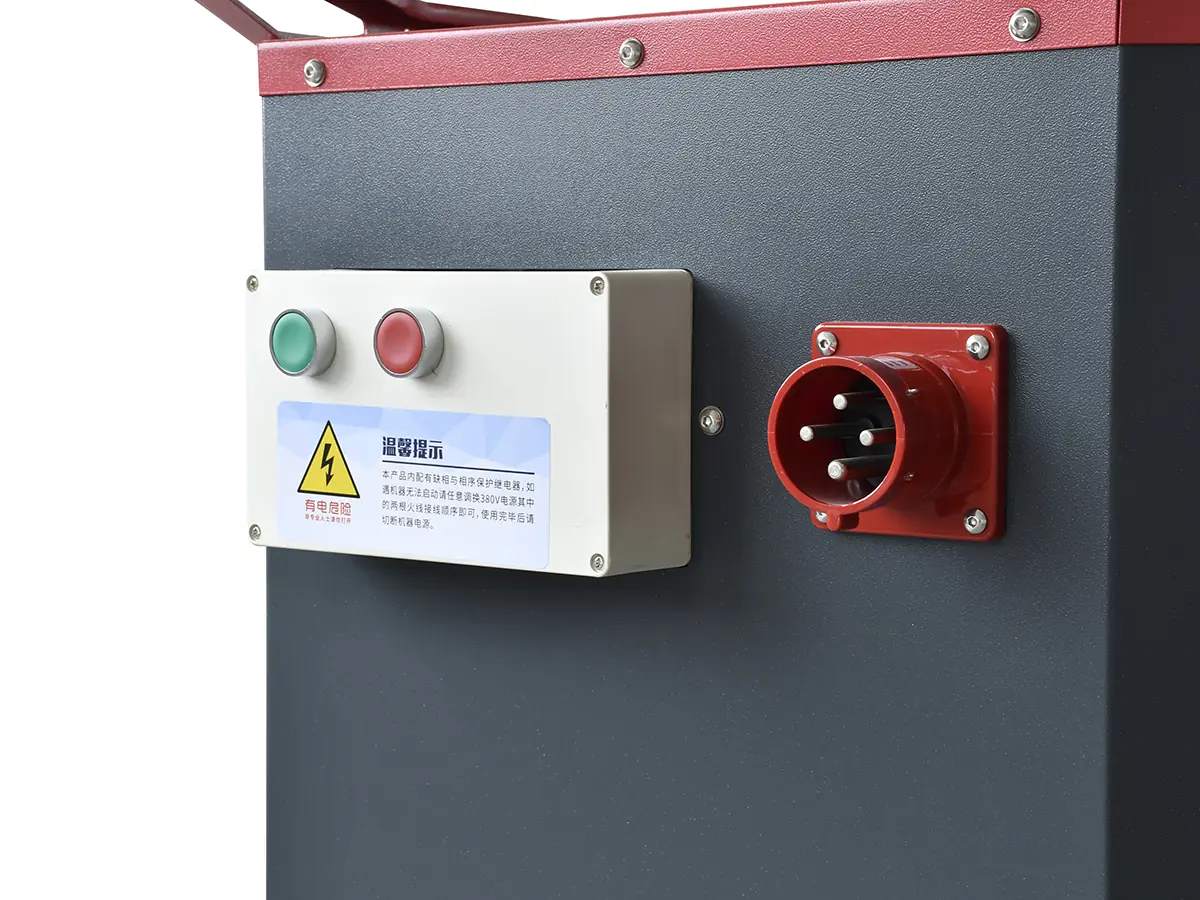

Control Panel
Control box and power connection shown on the rear panel.

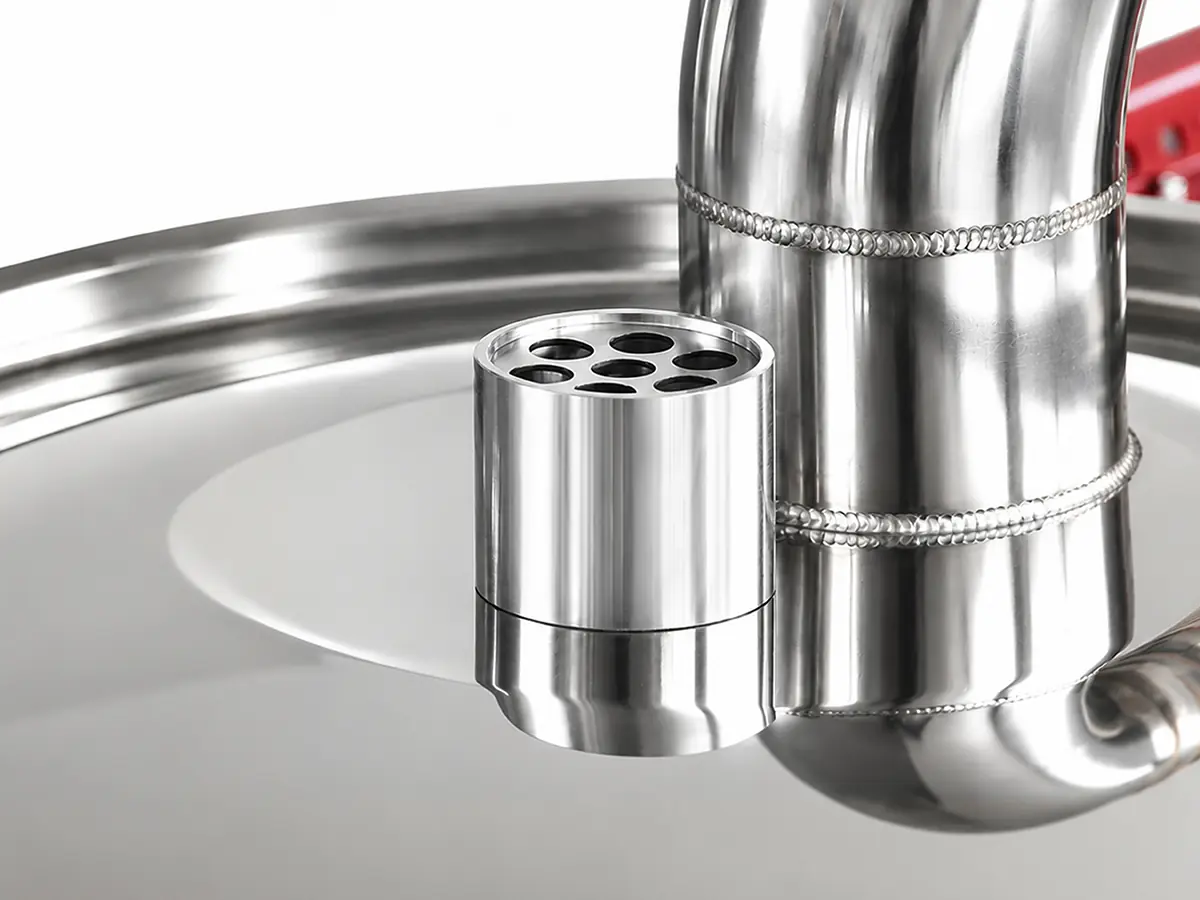

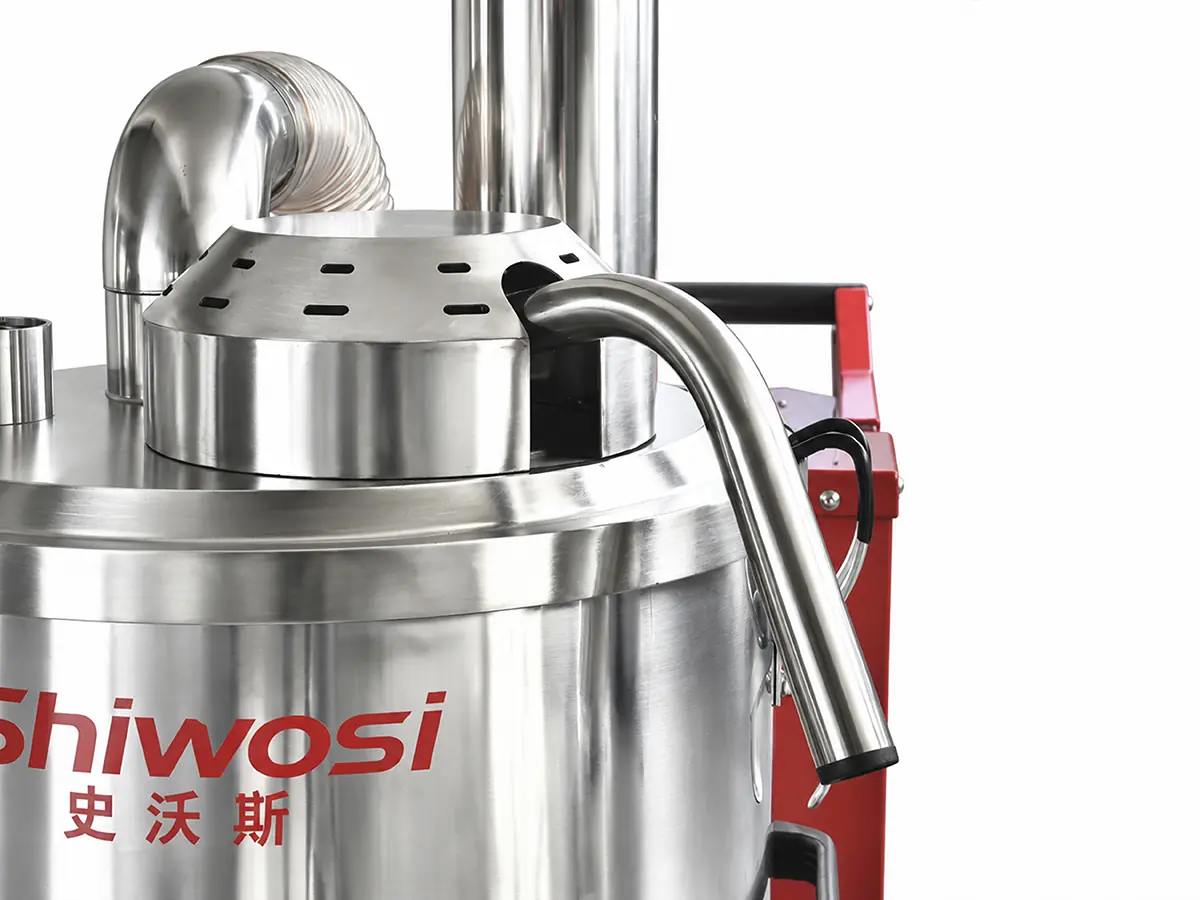

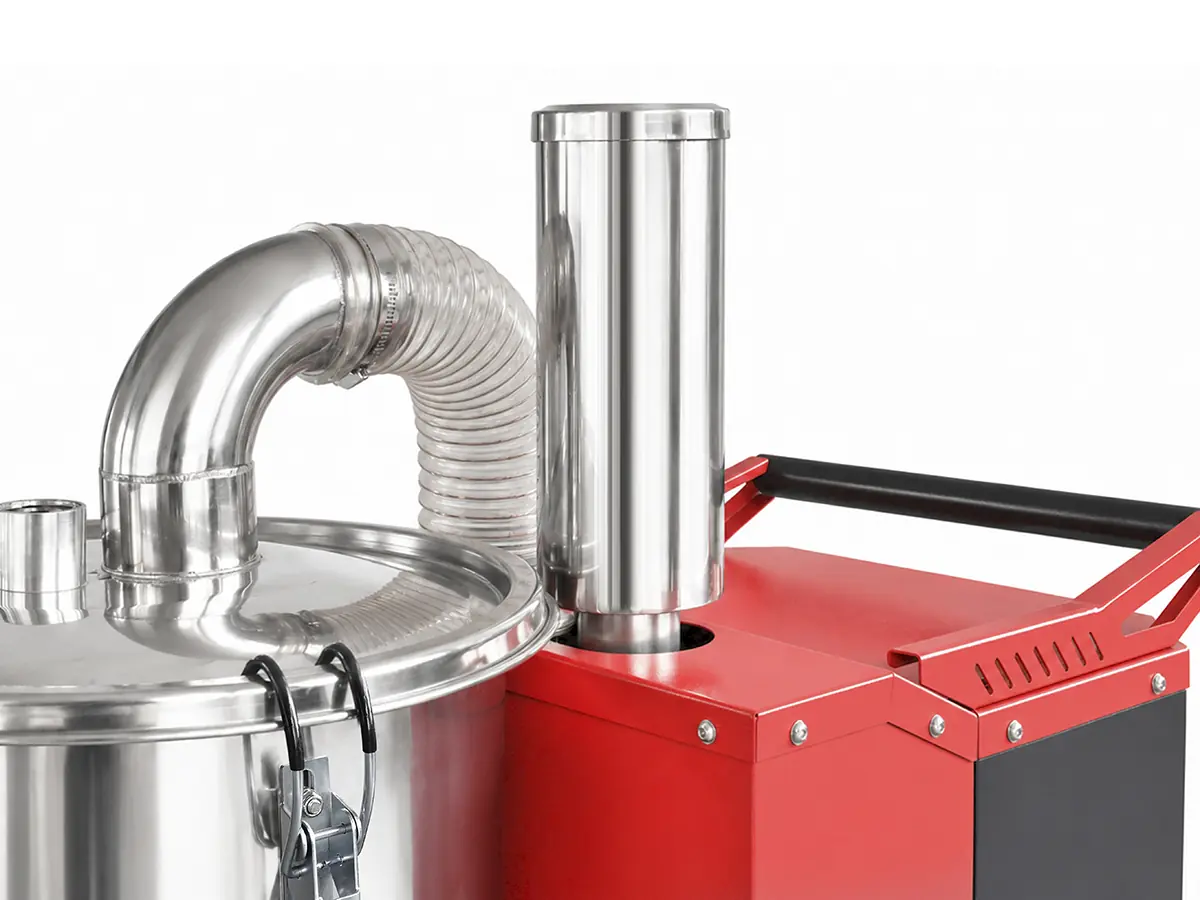

Upper Vacuum Assembly
Upper pipework and collection vessel detail.

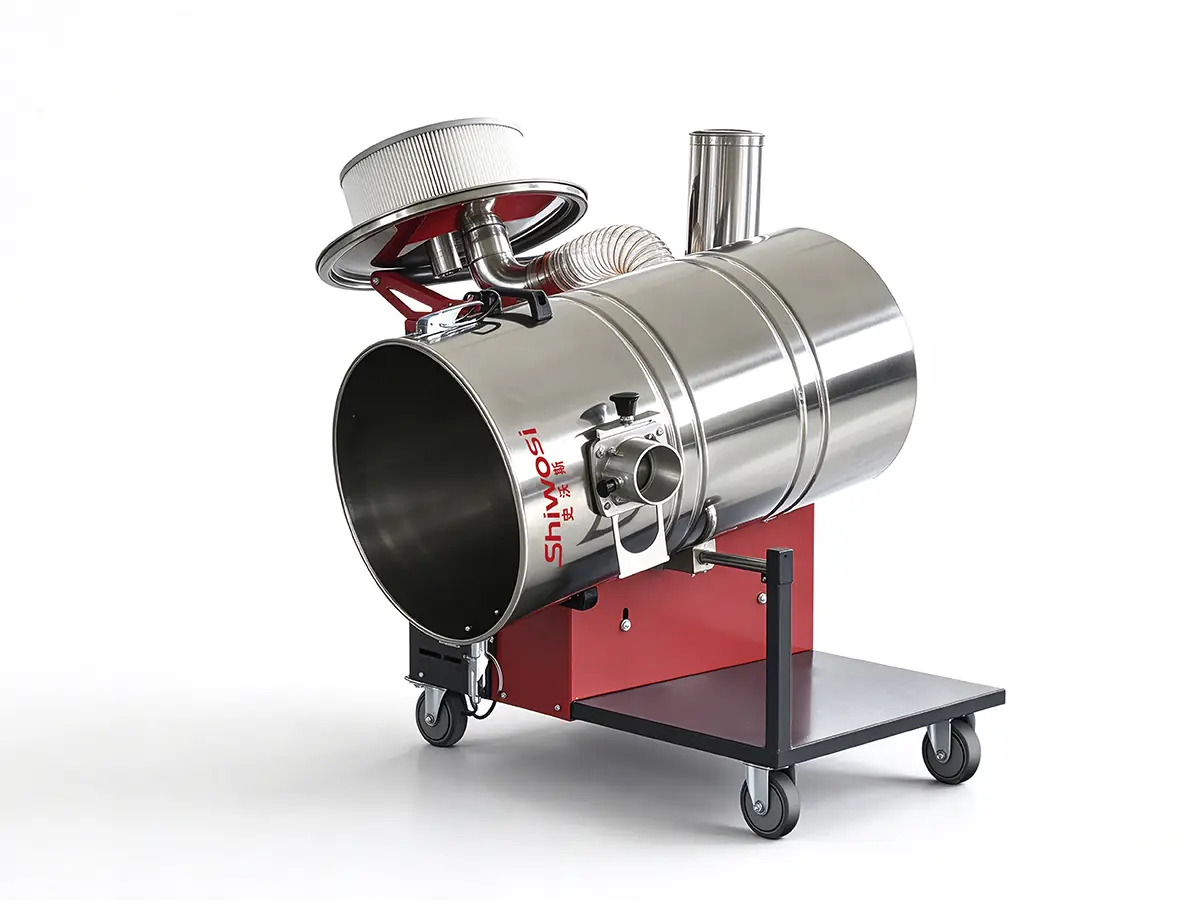

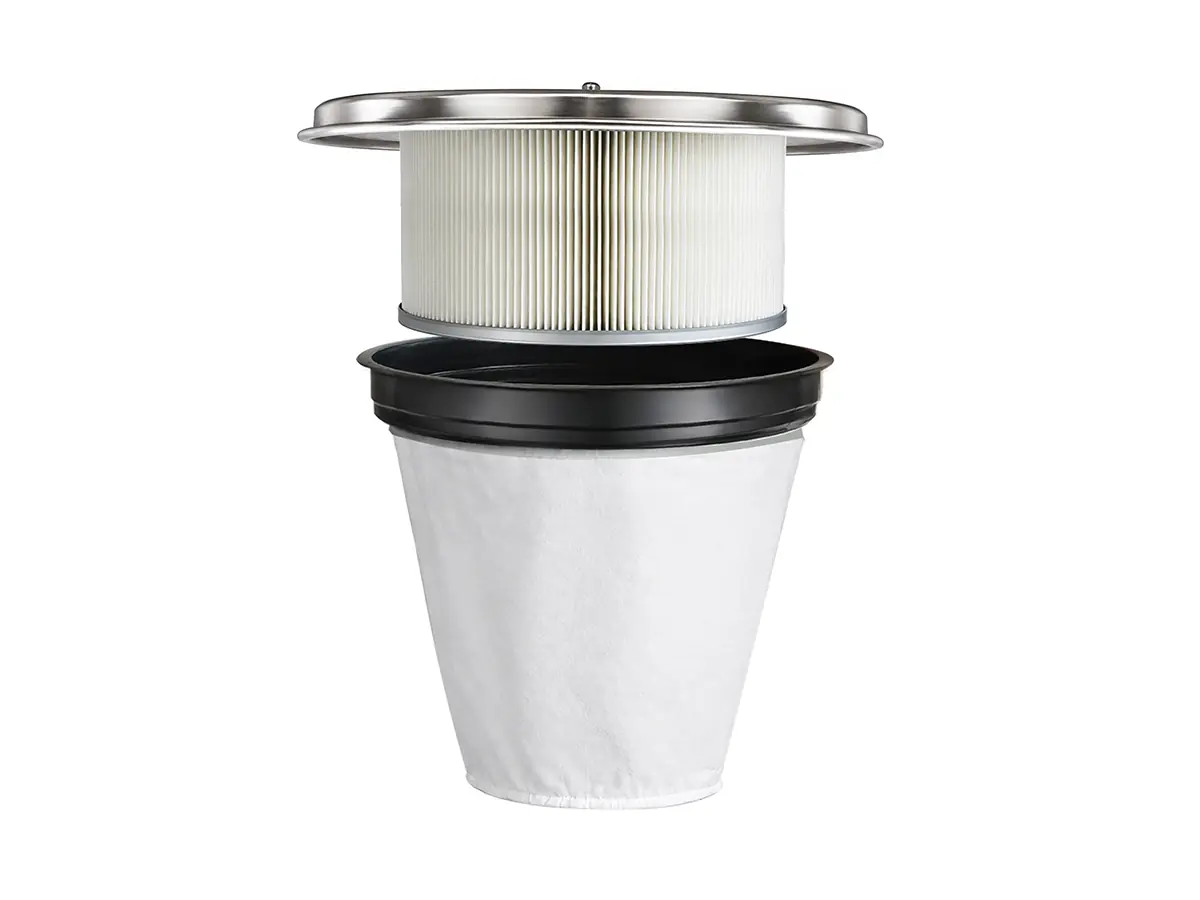

Filter and Separator Assembly
Close-up of the internal filter and separator components.

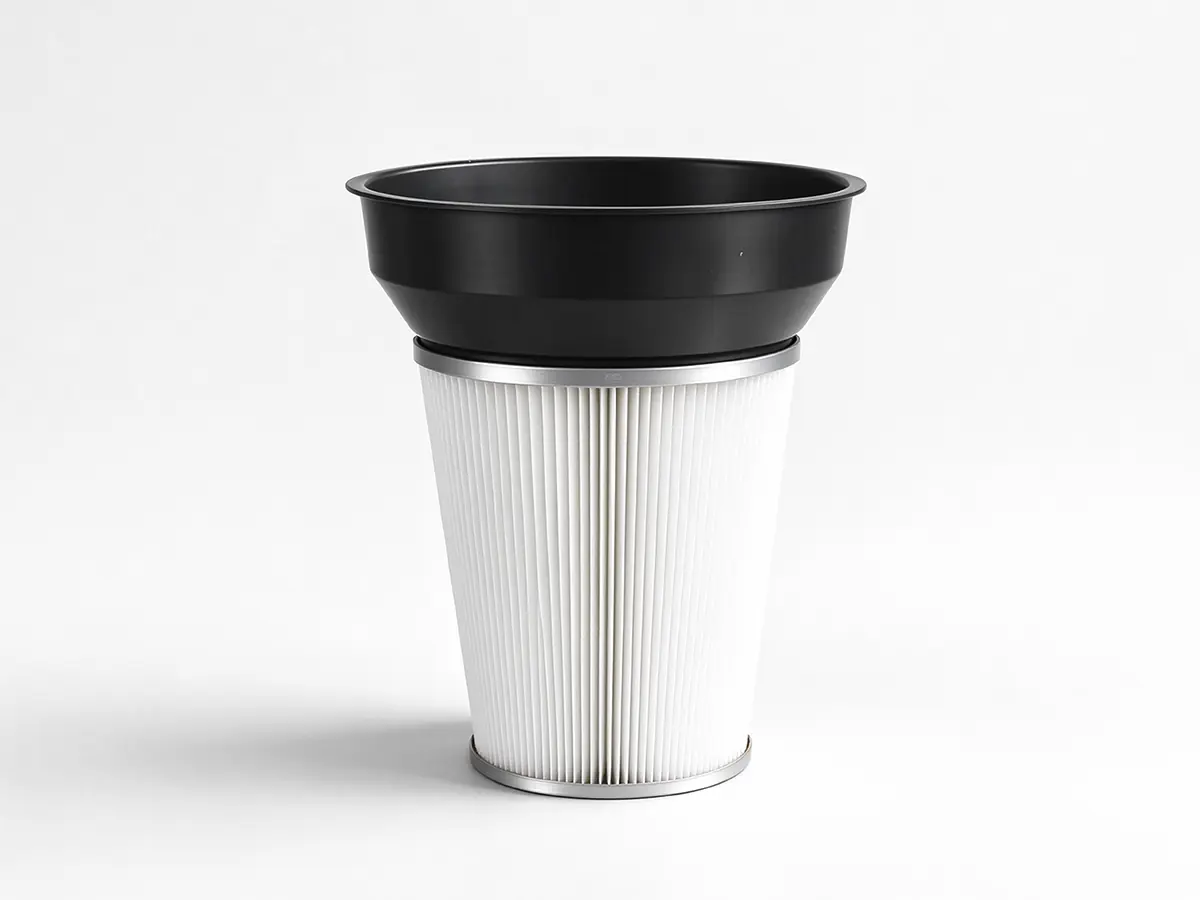

Filter Cartridge
Filter cartridge shown for the X5 configuration.

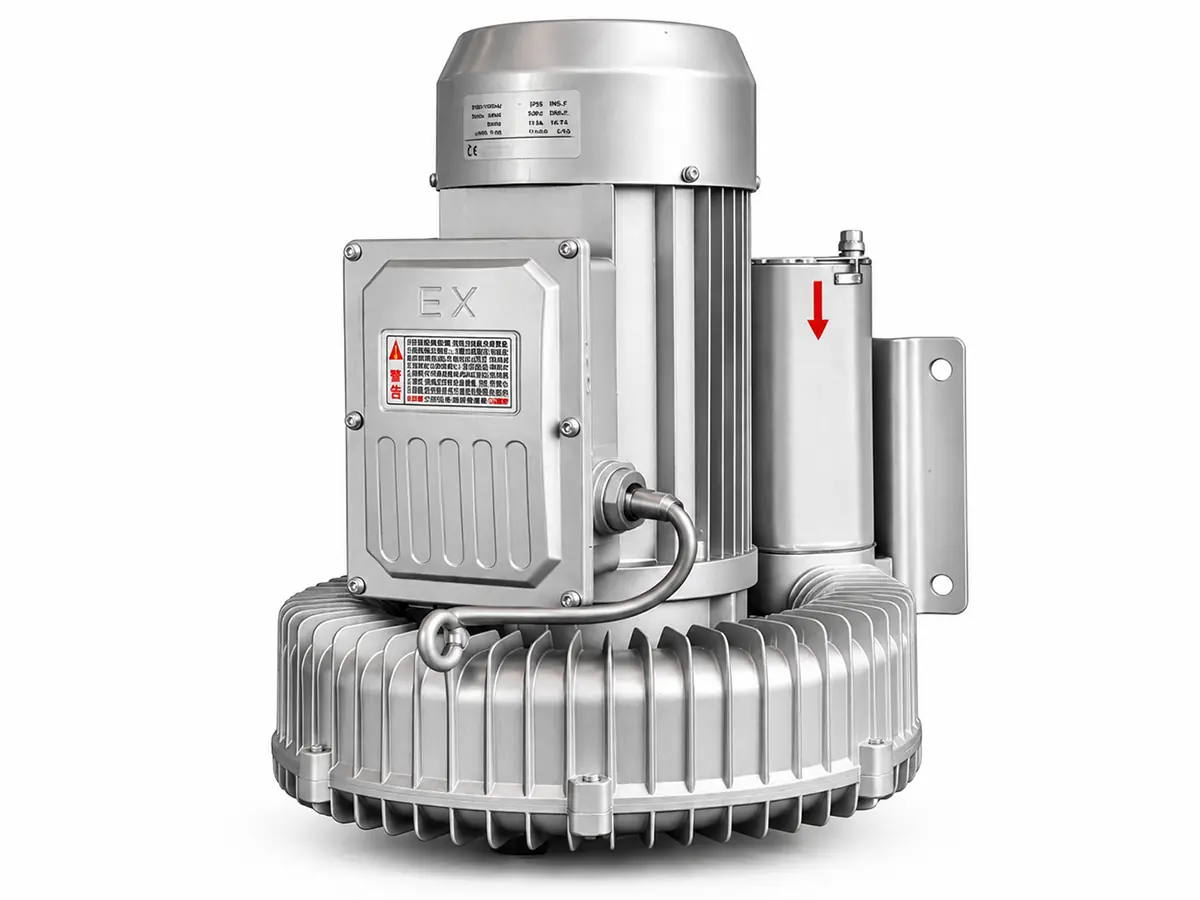

Vacuum Motor
The X5 product information specifies dual-ventilation cooling and copper windings.

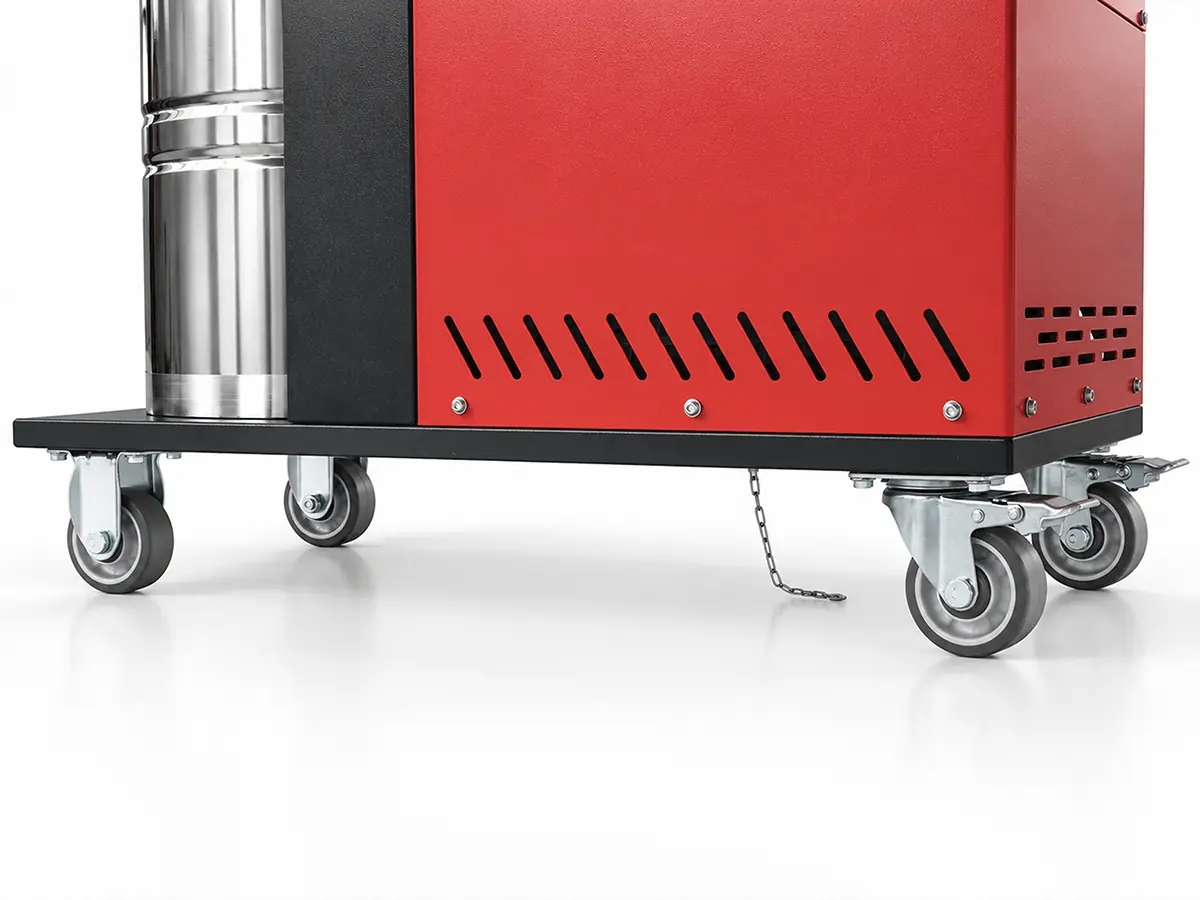

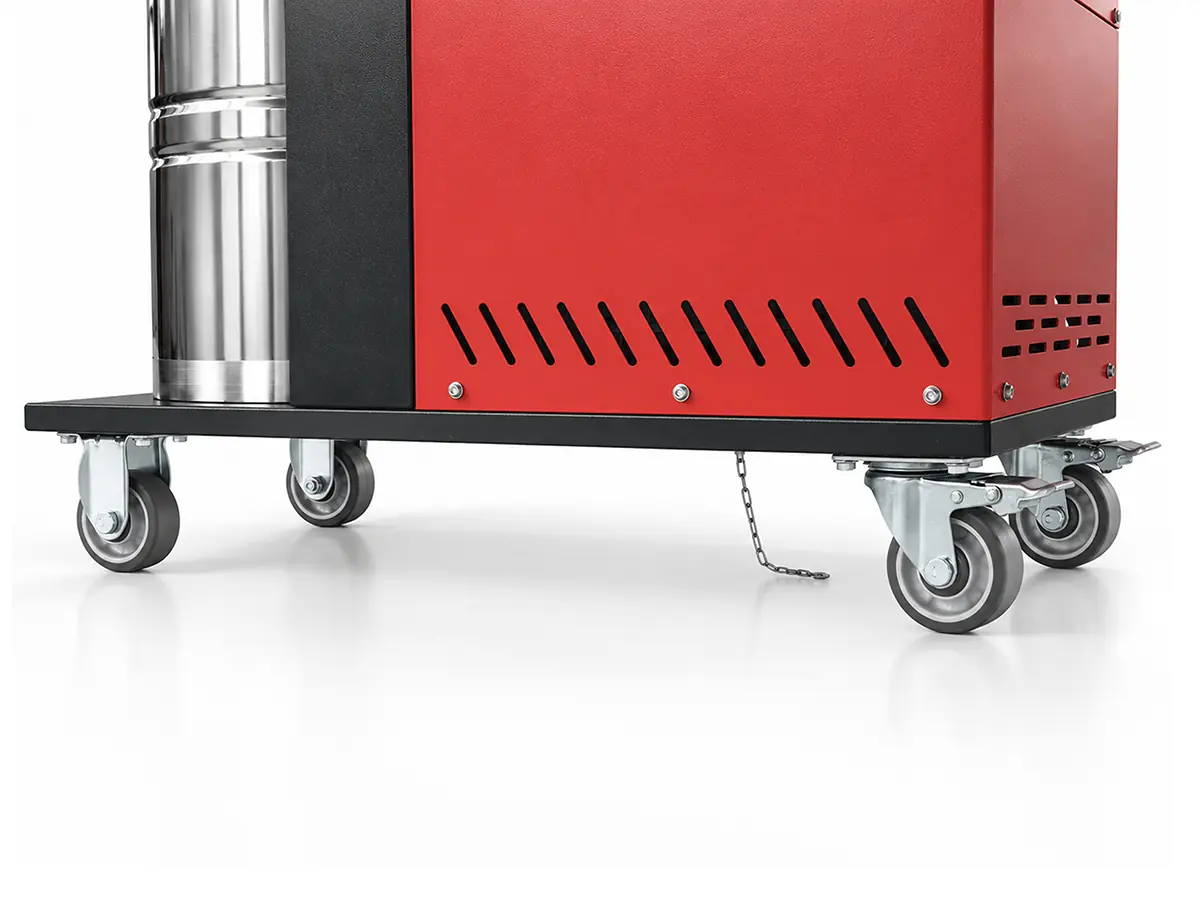

Caster Base
Caster assembly on the X5 mobile base.

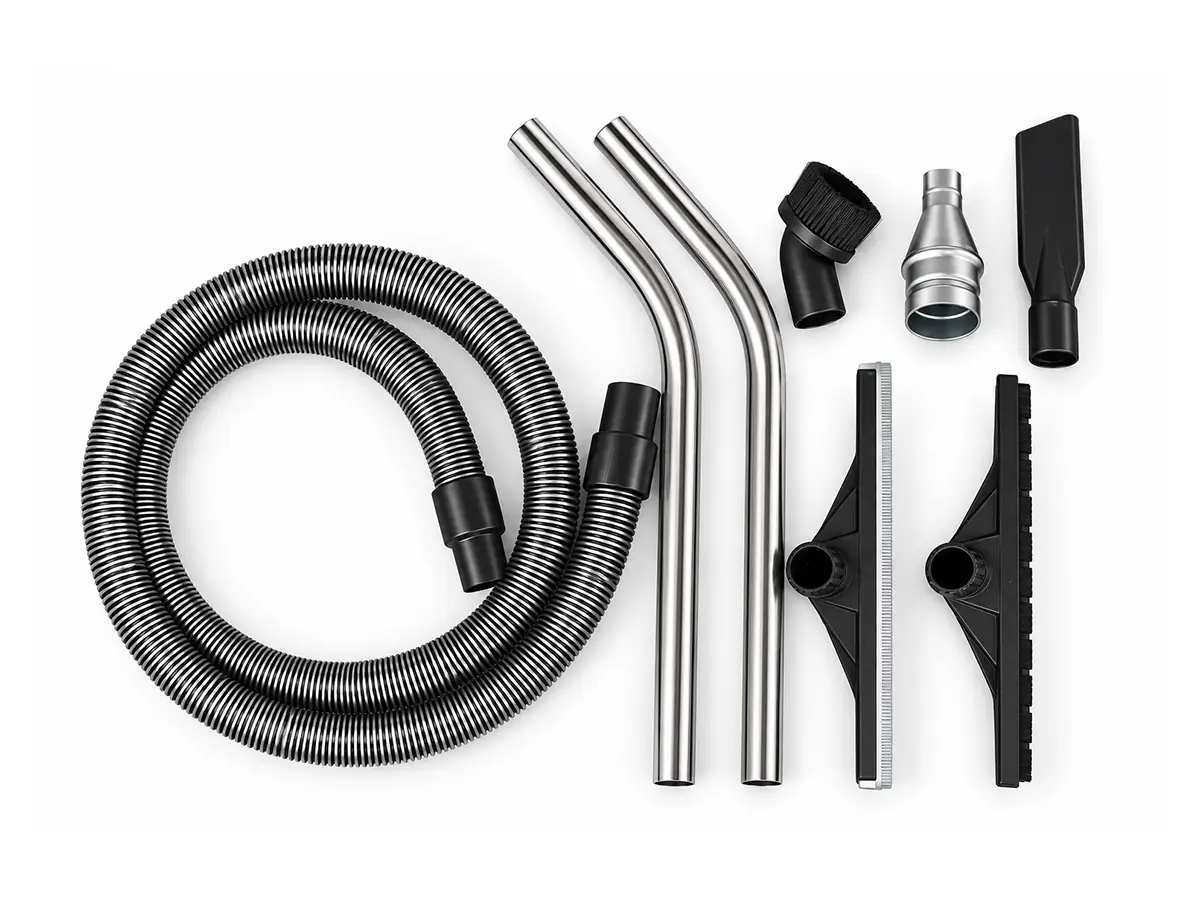

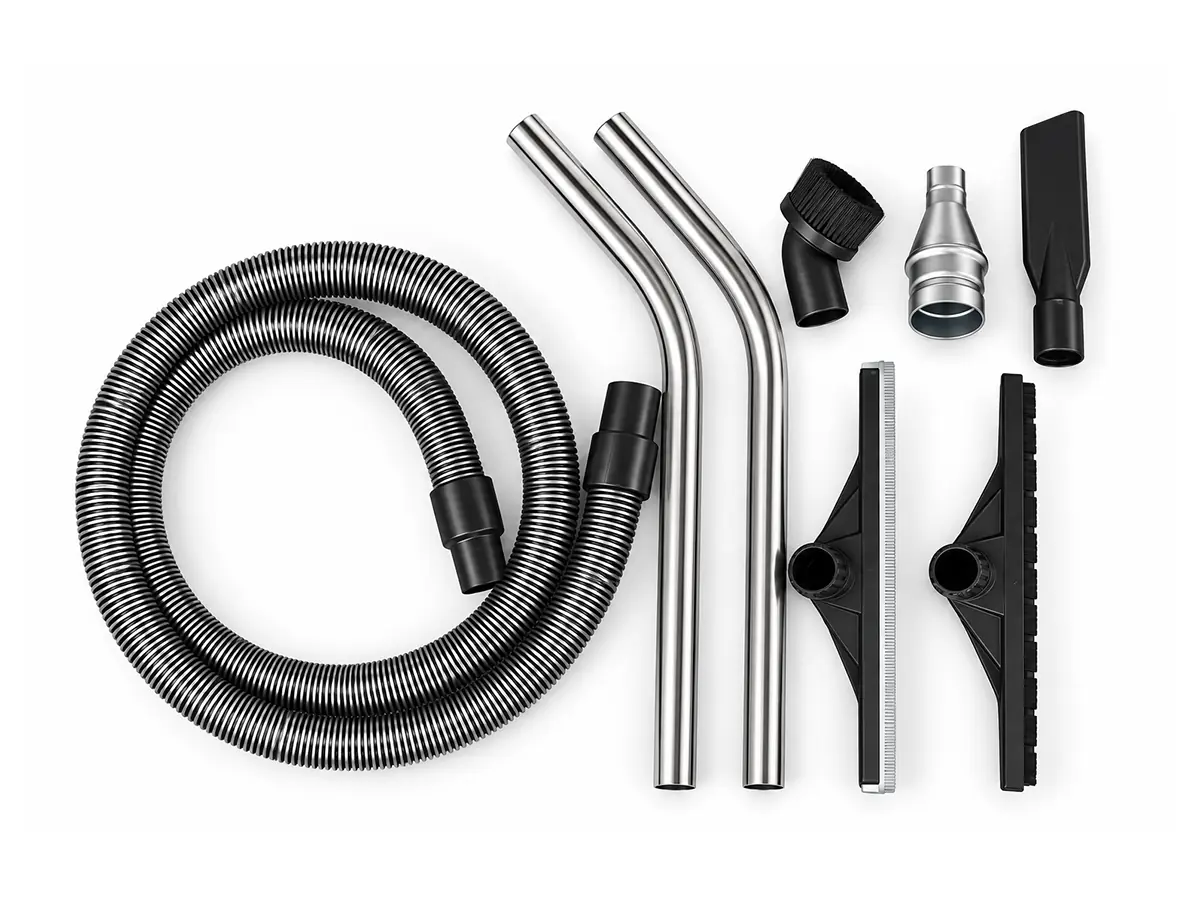

50 mm Suction Accessories
Hose and cleaning tools for different pickup tasks. The front squeegee is optional.
X5 Pro Product Views

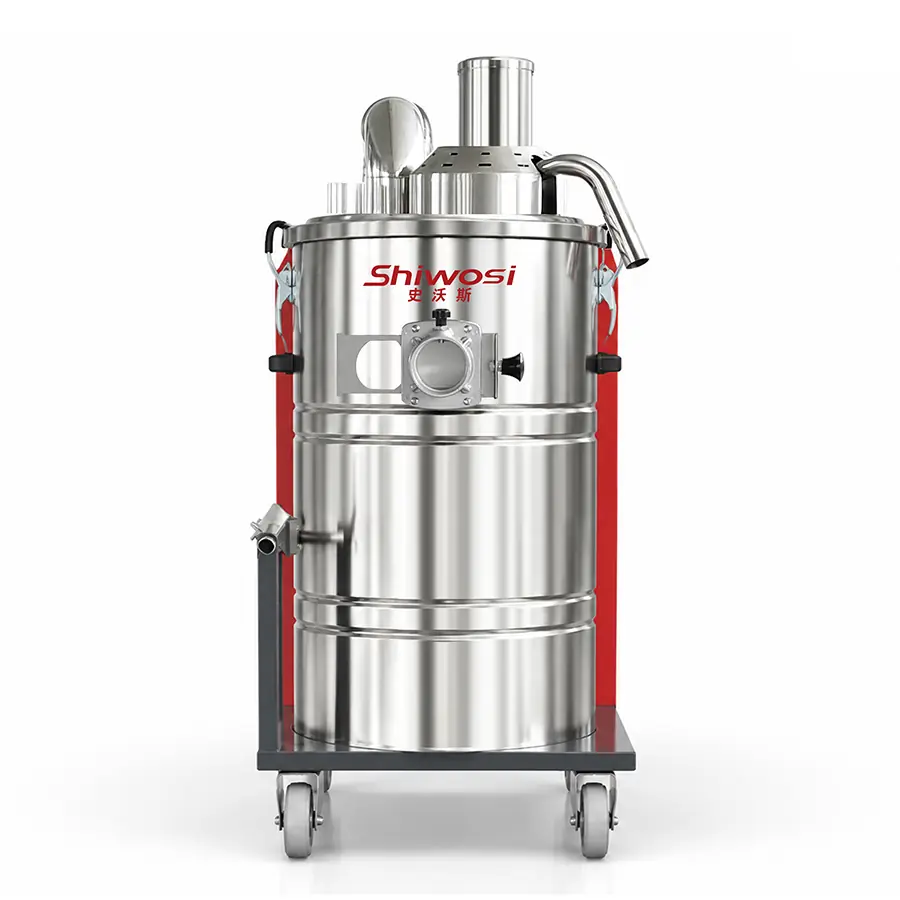

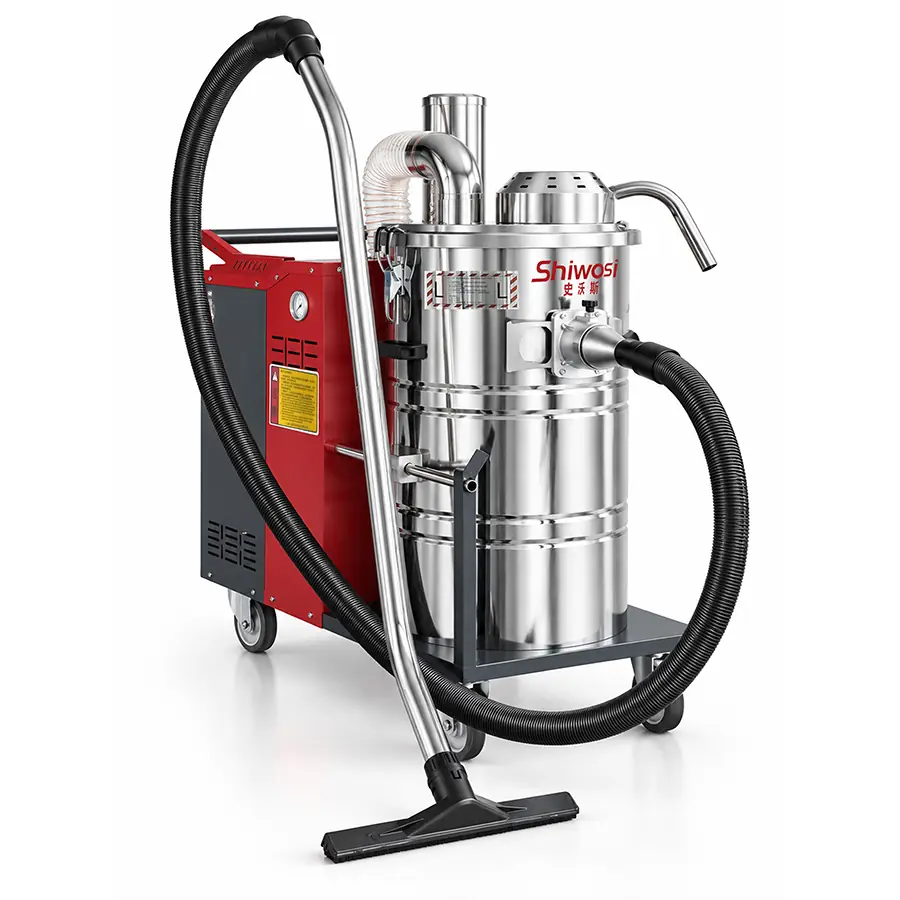

X5 Pro View 1
Product view 1 of the X5 Pro.
X5 Pro View 2
Product view 2 of the X5 Pro.

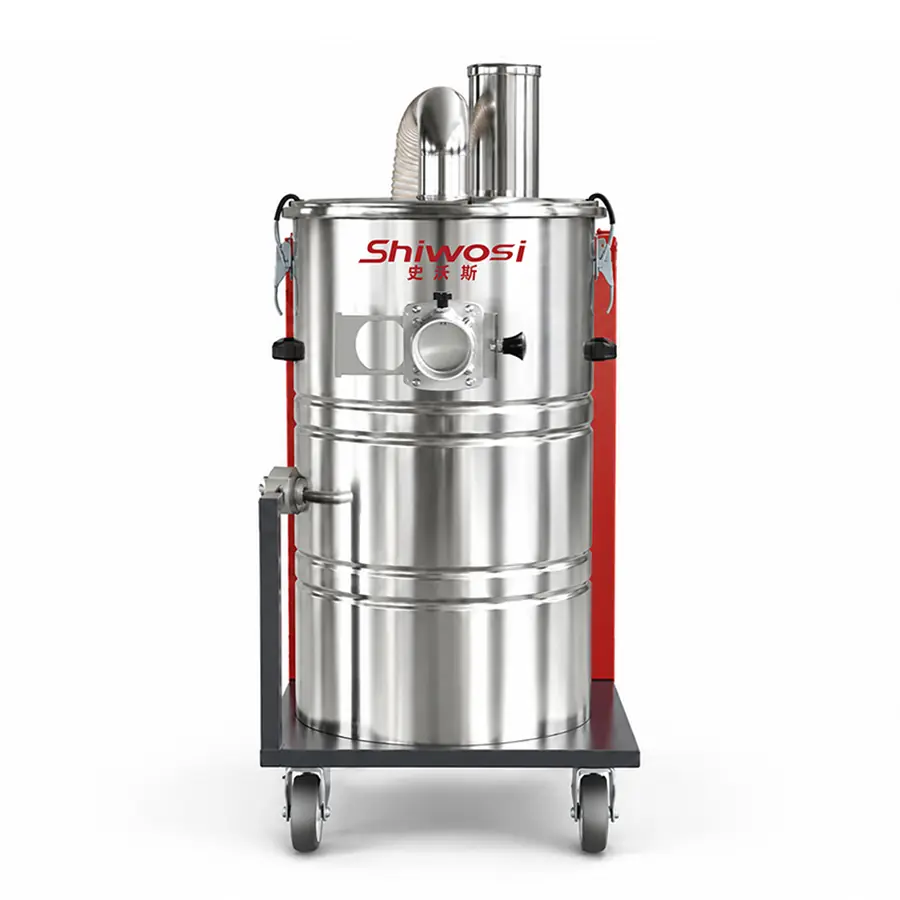

X5 Pro View 3
Product view 3 of the X5 Pro.

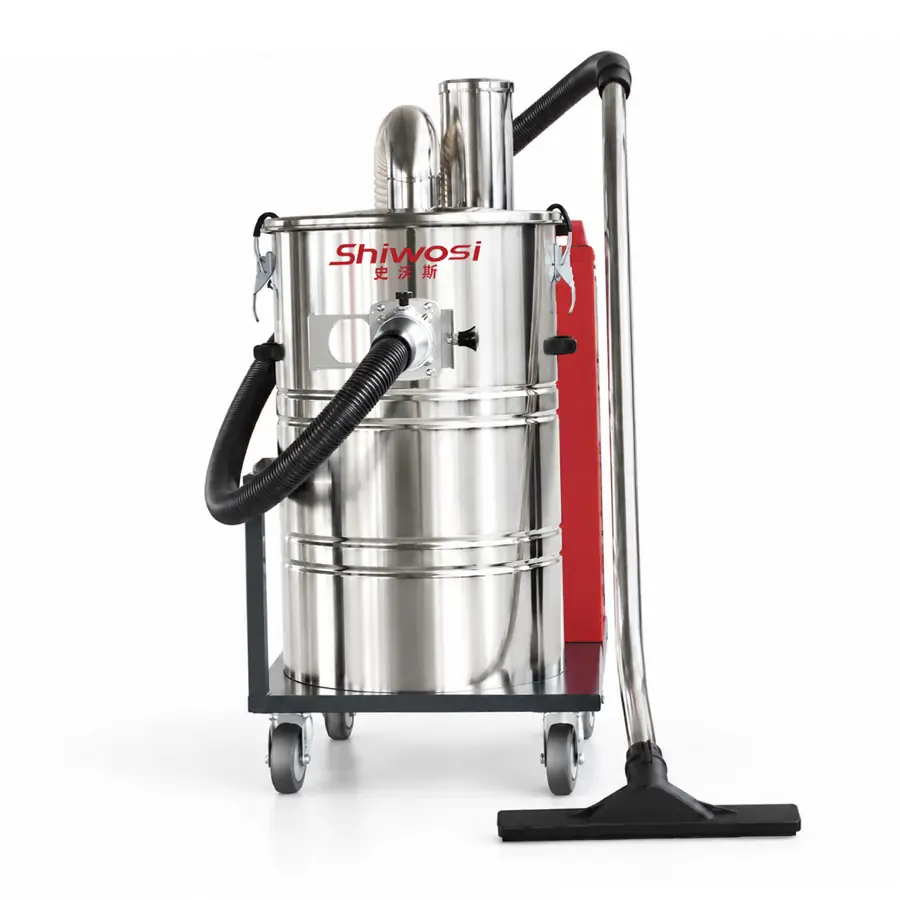

X5 Pro View 4
Product view 4 of the X5 Pro.
X5 Pro Details
Collection Lid and Handle
Upper collection-bin and handle detail.
40 mm Cast Aluminum Inlet
Inlet connection shown on the X5 Pro.

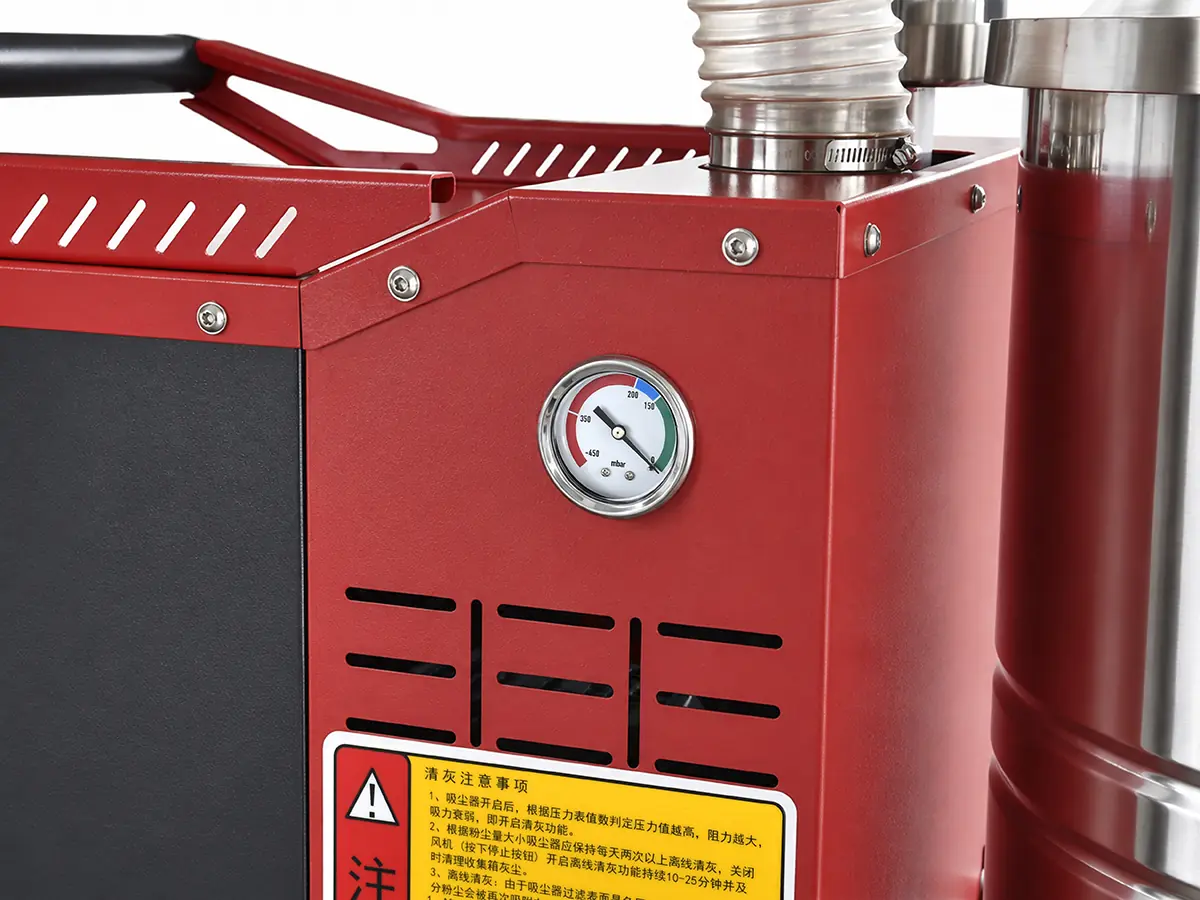

Vacuum Gauge and Housing
Gauge and housing detail on the X5 Pro.

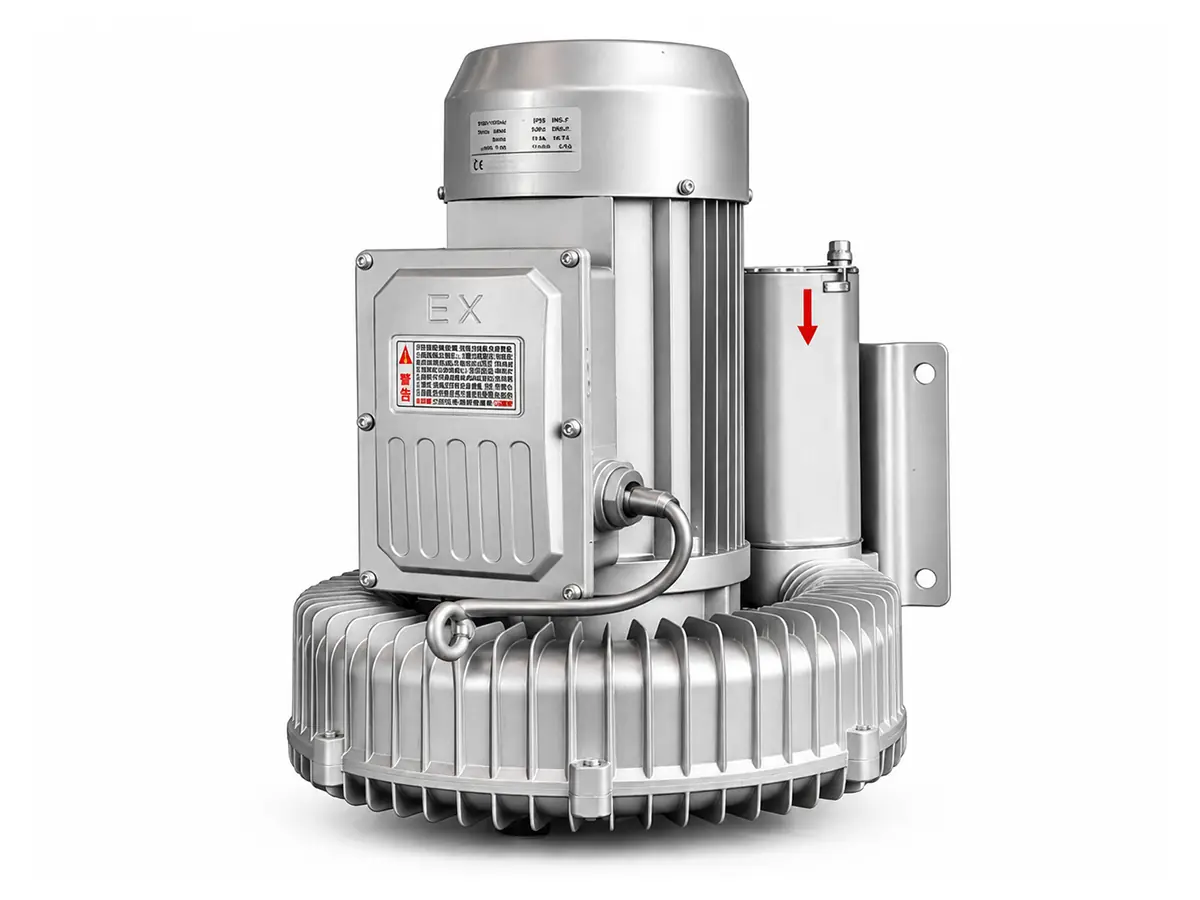

Vacuum Motor
Dual-ventilation cooling, copper windings and wet/dry cleaning noise below 72 dB.
Caster Base
Caster assembly on the X5 Pro mobile base.

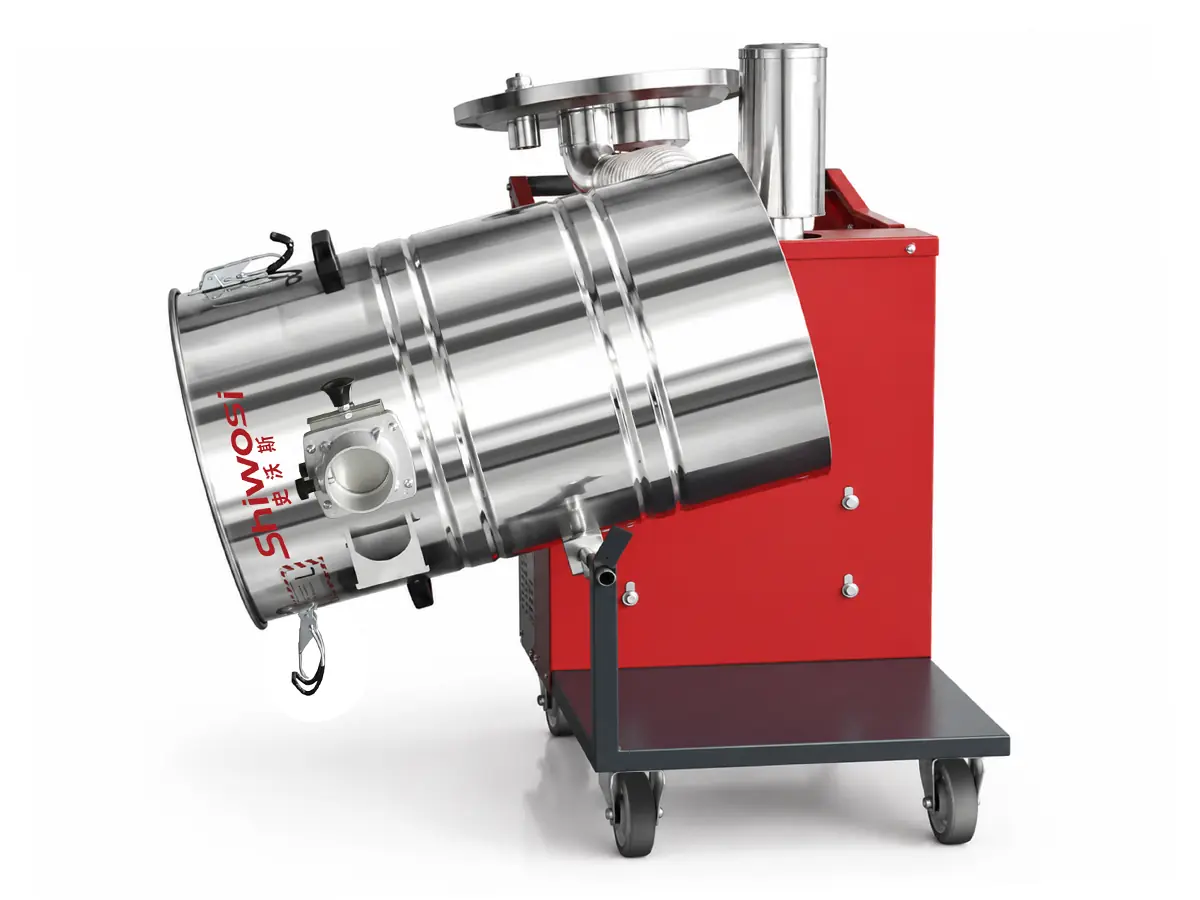

Detachable Hopper
The product information describes a detachable stainless-steel hopper with a pull handle and push-to-lock fitting.
Filter Cartridge
Filter cartridge shown for the X5 Pro configuration.
Control Panel
Operating controls and power connection on the rear panel.
50 mm Suction Accessories
Hose and cleaning tools for different pickup tasks. The front squeegee is optional.
Typical applications
General-purpose wet and dry industrial vacuum for fine and coarse solids, debris and contaminated liquids.
Configuration before ordering
Confirm the material, dust type, required airflow or vacuum, operating duration, power supply, collection method and attachments for the selected model before ordering.
Download
Documents & compliance
Document scope varies by model and destination. Confirm the required files with export sales before ordering.
Product documentation
Product manual PDF
Download the product manual for this model or model family. The current files include bilingual covers and Chinese operating instructions.
