SHIWOSI X8 Wet & Dry Industrial Vacuum | Manual Filter Cleaning
Wet and dry industrial vacuum with manual reverse-blow filter cleaning for metal shavings, cement dust and demanding workshops.
Get a Factory Quote
Configuration supportMachine selection based on your task
Export documentationConfirm documents by model and market
After-Sales & Spare Parts SupportMaintenance and spare-parts planning
Product information
Product Description
The X8 reverse-blow dust extraction vacuum cleaner is a manual reverse-blow industrial vacuum designed for high-dust environments. When suction power decreases, operate the filter-cleaning lever to dislodge dust from the filter without removing the cartridge. The unit features an industrial-grade motor and a reinforced, wear-resistant body. Suitable for wet and dry pickup, it can handle tasks such as collecting metal shavings and cement dust when configured for the application.
Manual Reverse-Blow Filter Cleaning
Operate the cleaning lever to dislodge dust from the filter cartridge without removing it. This keeps routine filter cleaning accessible during demanding workshop use.
Technical data
Complete specifications
Values shown are for the available industrial vacuum configurations. Confirm the final model and voltage before ordering.
| Item | X8-2 | X8-3 | X8-4 | X8-5 | X8-7 | X8-9 | X8-11 | X8-12 | X8-15 |
|---|---|---|---|---|---|---|---|---|---|
| Machine Type | Wet & Dry Industrial Vacuum | ||||||||
| Rated Power | 2.2 kW | 3 kW | 4 kW | 5.5 kW | 7.5 kW | 9.5 kW | 11 kW | 12.5 kW | 15 kW |
| Max Air Flow | 318m3/h | 318m3/h | 420m3/h | 530m3/h | 530m3/h | 1050m3/h | 1050m3/h | 1050m3/h | 1050m3/h |
| Max Pressure | 210 mbar | 270 mbar | 290 mbar | 300 mbar | 320 mbar | 210 mbar | 280 mbar | 290 mbar | 310 mbar |
| Machine Weight | 85 kg | 90 kg | 100 kg | 115 kg | 125 kg | 162 kg | 170 kg | 170 kg | 170 kg |
| Voltage | 380 V/220 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V |
| Dust Cleaning Method | One-click reverse blow cleaning | ||||||||
| Filter Configuration | PTFE coated polyester cartridge | ||||||||
| Filtration Accuracy | 0.3um | ||||||||
| Filtration Area | 25000 cm2 | ||||||||
| Container Capacity | 100 L | ||||||||
| Dimensions | 1350 x 590 x 1390 mm | 1450 x 630 x 1560 mm | |||||||
| Filter Cleaning | Manual reverse-blow | ||||||||
| Motor | Industrial-grade motor | ||||||||
| Suitable Materials | Metal shavings and cement dust | ||||||||
| Body | Reinforced wear-resistant construction | ||||||||
Technical data
Complete specifications
Values apply to the listed configuration. Confirm final specifications before placing an order.
- Model
- X8
- Machine Type
- Wet & Dry Industrial Vacuum
- Model Options
- X8-2 / X8-3 / X8-4 / X8-5 / X8-7 / X8-9 / X8-11 / X8-12 / X8-15
- Rated Power
- X8-2: 2.2 kW; X8-3: 3 kW; X8-4: 4 kW; X8-5: 5.5 kW; X8-7: 7.5 kW; X8-9: 9.5 kW; X8-11: 11 kW; X8-12: 12.5 kW; X8-15: 15 kW
- Max Air Flow
- X8-2: 318m3/h; X8-3: 318m3/h; X8-4: 420m3/h; X8-5: 530m3/h; X8-7: 530m3/h; X8-9: 1050m3/h; X8-11: 1050m3/h; X8-12: 1050m3/h; X8-15: 1050m3/h
- Max Pressure
- X8-2: 210 mbar; X8-3: 270 mbar; X8-4: 290 mbar; X8-5: 300 mbar; X8-7: 320 mbar; X8-9: 210 mbar; X8-11: 280 mbar; X8-12: 290 mbar; X8-15: 310 mbar
- Machine Weight
- X8-2: 85 kg; X8-3: 90 kg; X8-4: 100 kg; X8-5: 115 kg; X8-7: 125 kg; X8-9: 162 kg; X8-11: 170 kg; X8-12: 170 kg; X8-15: 170 kg
- Voltage
- X8-2: 380 V/220 V; X8-3: 380 V; X8-4: 380 V; X8-5: 380 V; X8-7: 380 V; X8-9: 380 V; X8-11: 380 V; X8-12: 380 V; X8-15: 380 V
- Dust Cleaning Method
- X8-2: One-click reverse blow cleaning
- Filter Configuration
- X8-2: PTFE coated polyester cartridge
- Filtration Accuracy
- X8-2: 0.3um
- Filtration Area
- X8-2: 25000 cm2
- Container Capacity
- X8-2: 100 L
- Dimensions
- X8-2: 1350 x 590 x 1390 mm; X8-3: 1450 x 630 x 1560 mm
- Filter Cleaning
- Manual reverse-blow
- Motor
- Industrial-grade motor
- Suitable Materials
- Metal shavings and cement dust
- Body
- Reinforced wear-resistant construction
Product Highlights

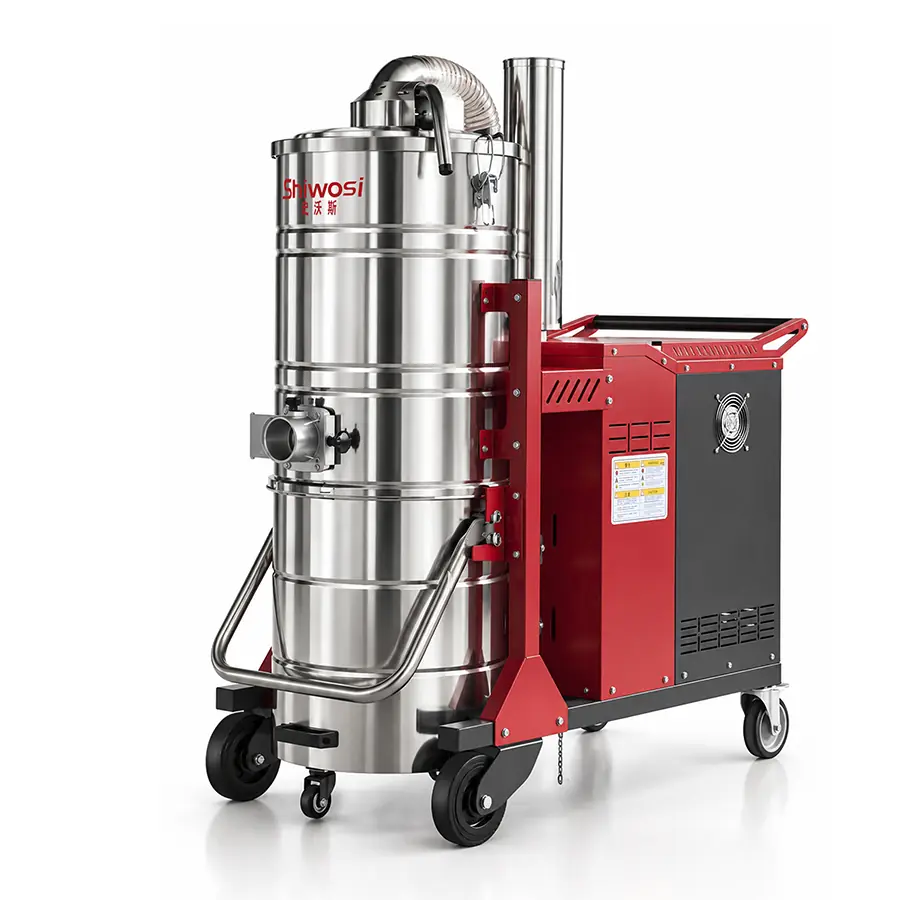

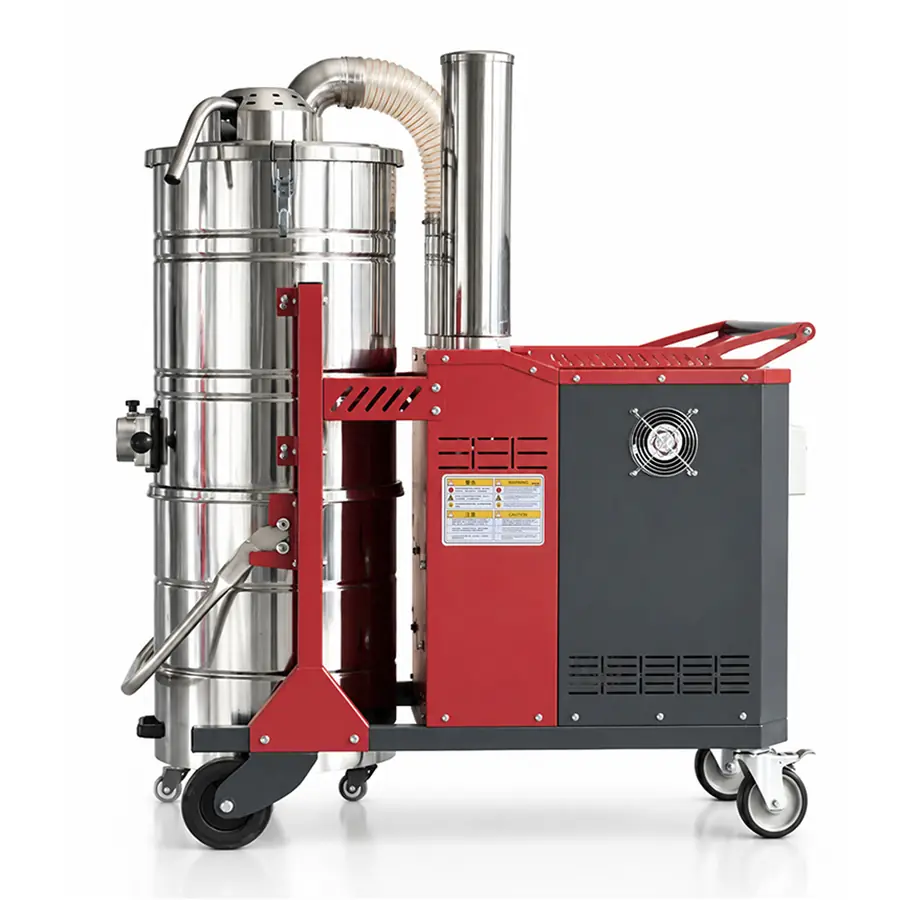

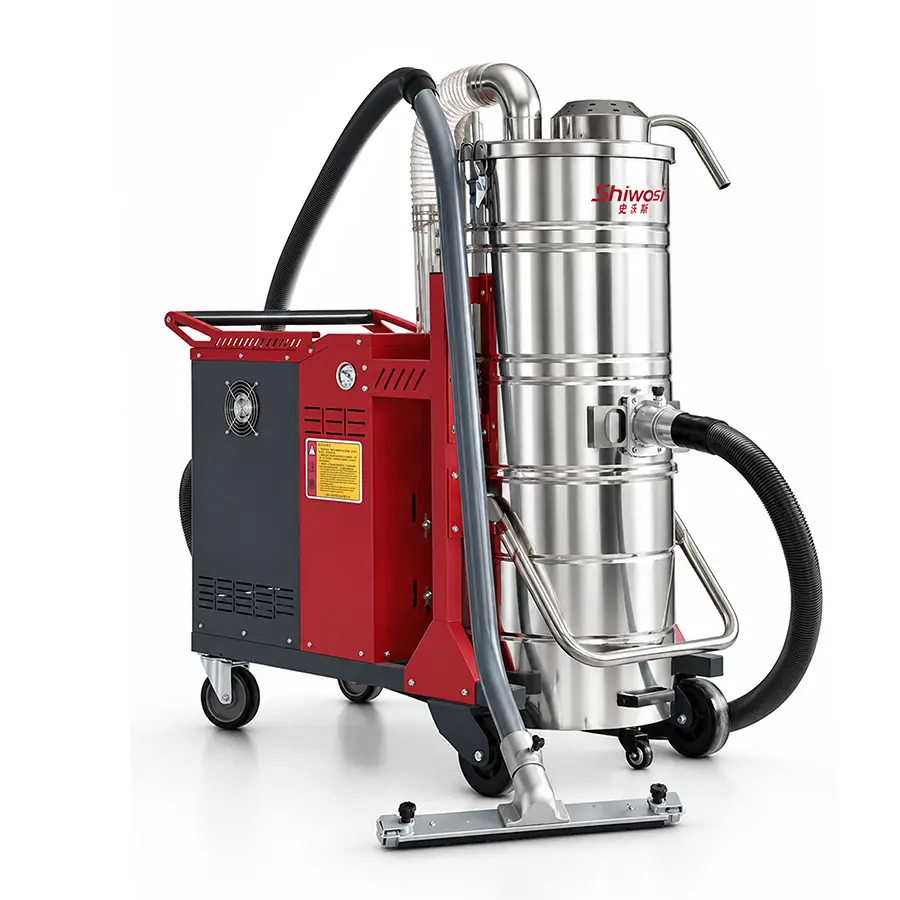

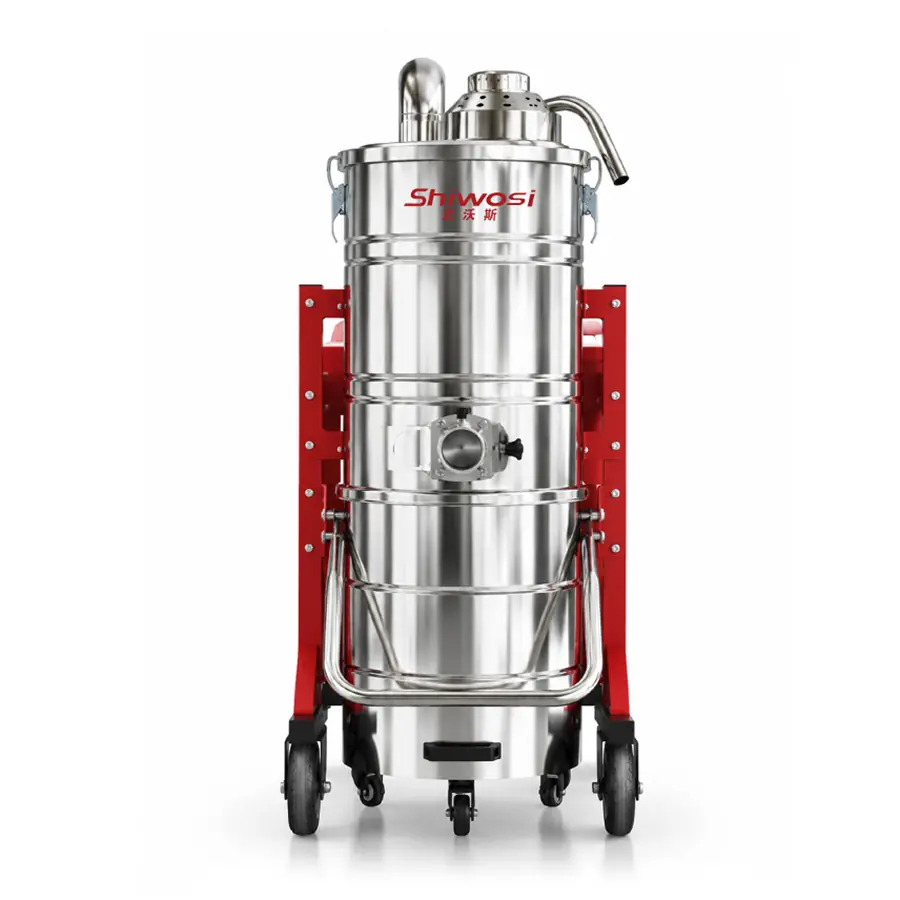

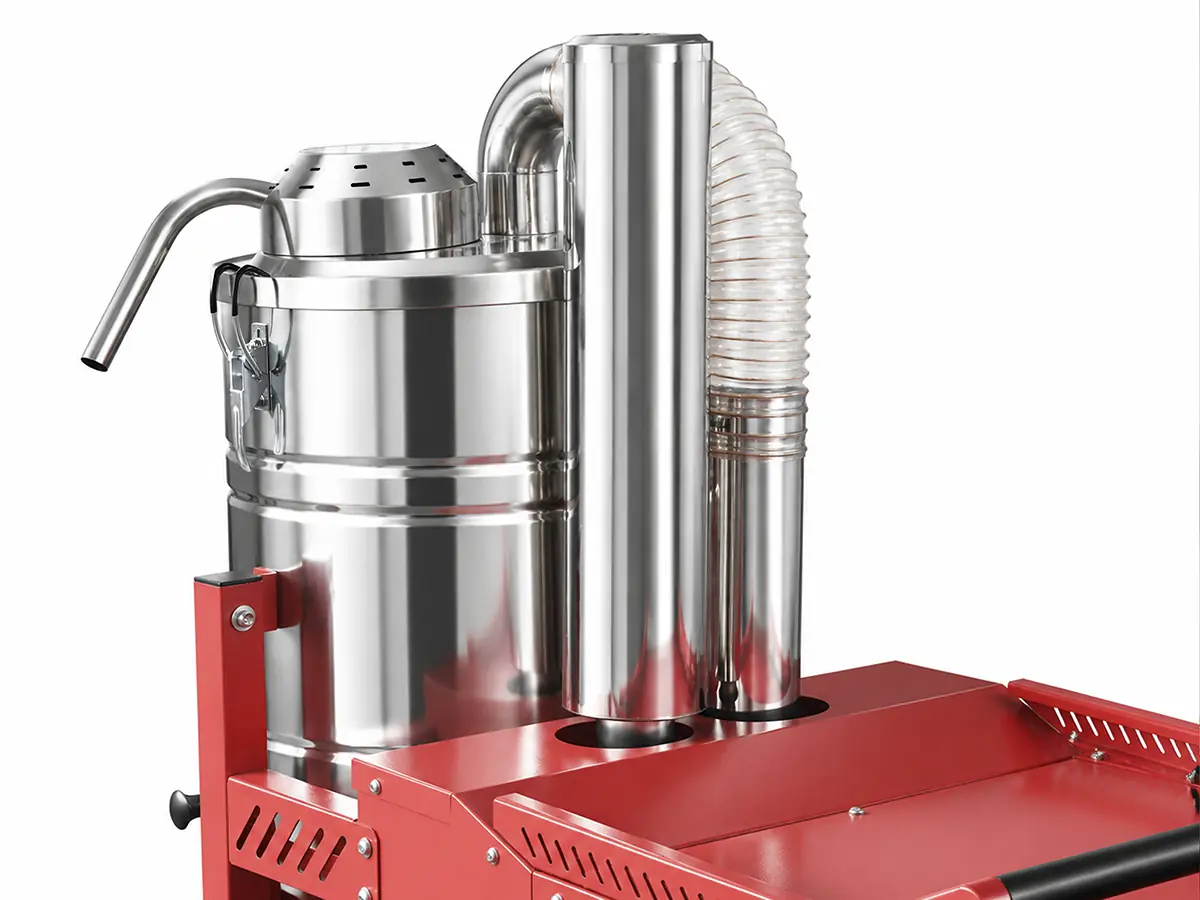

X8 Machine View
Overall view of the X8 industrial vacuum and collection bin.

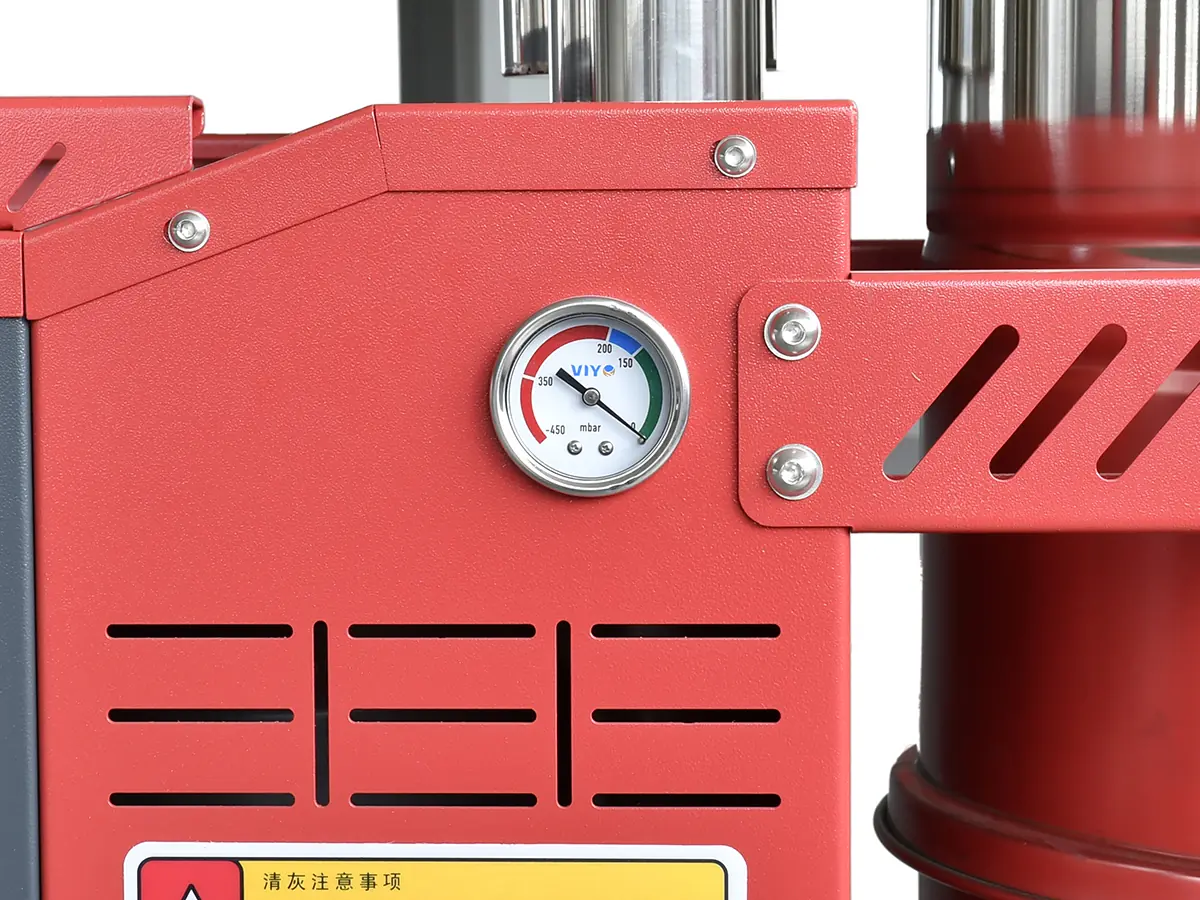

Vacuum Gauge
Gauge mounted on the machine housing.

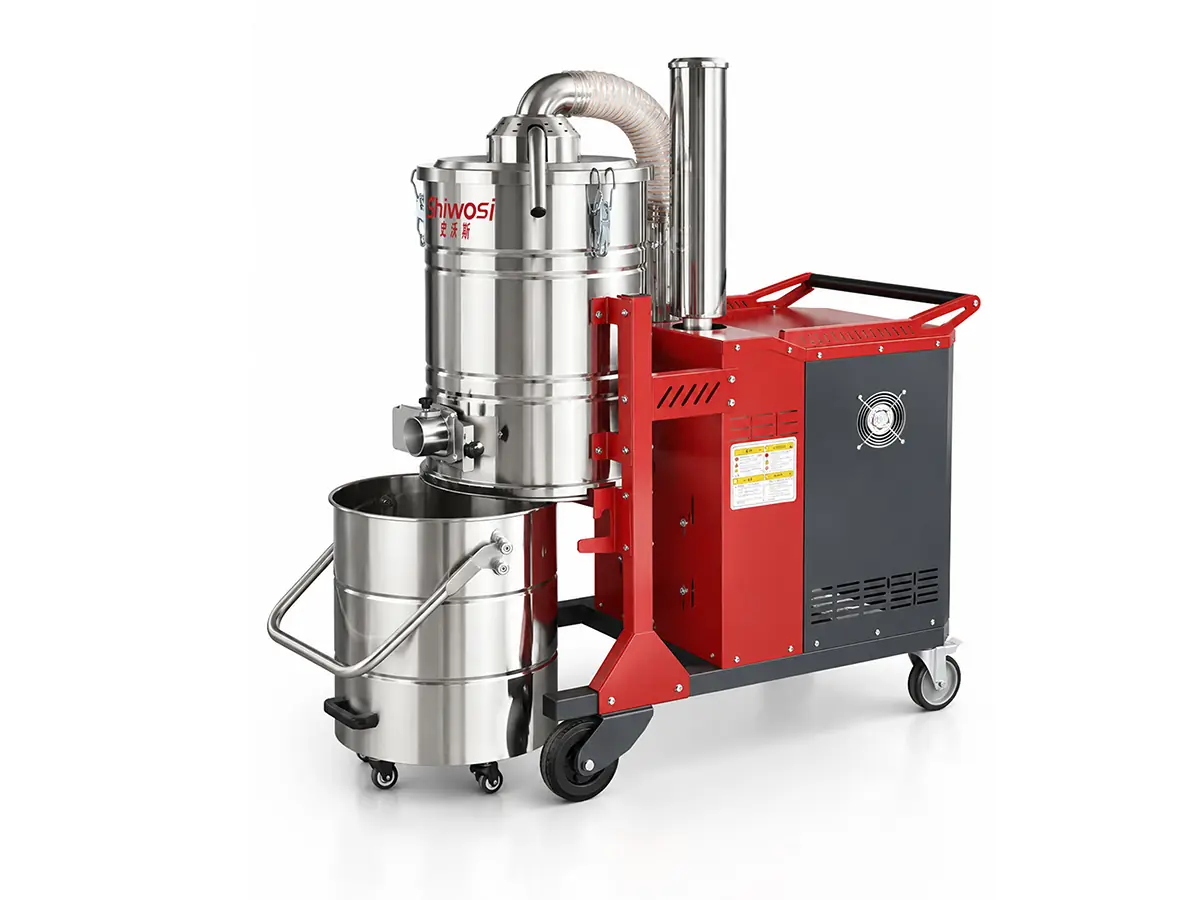

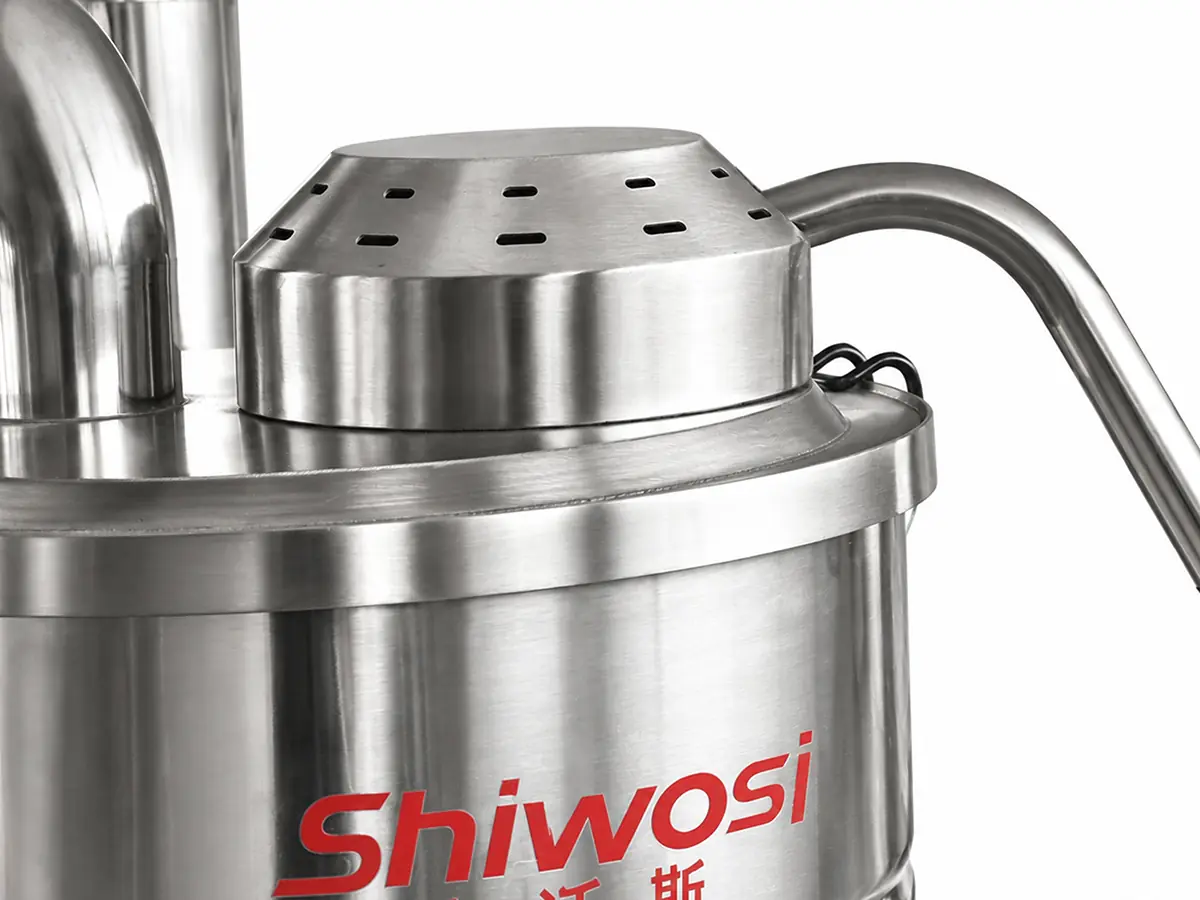

Stainless-Steel Collection Bin
Detachable 100 L stainless-steel dust collection bin for waste disposal.

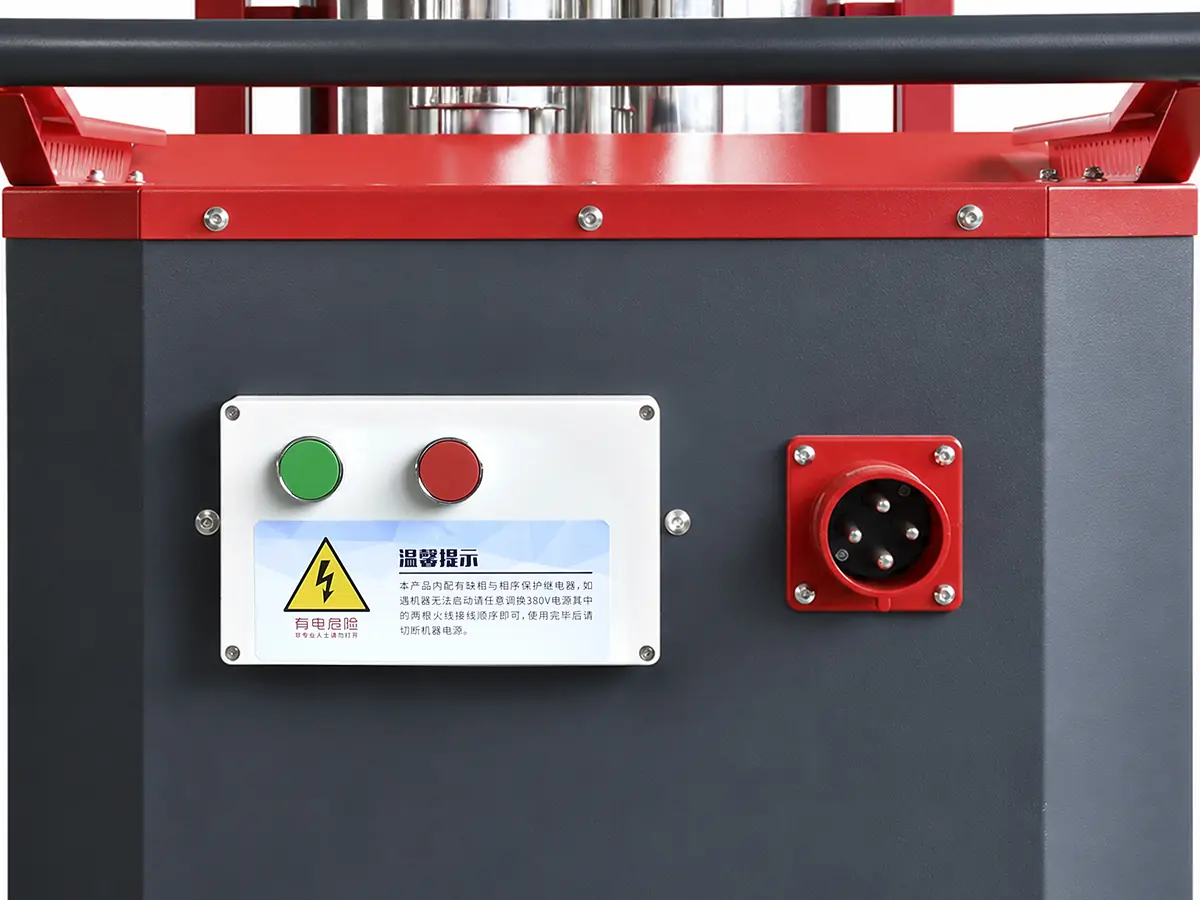

Controls and Power Connection
Control buttons and a power connector are shown on the rear panel.

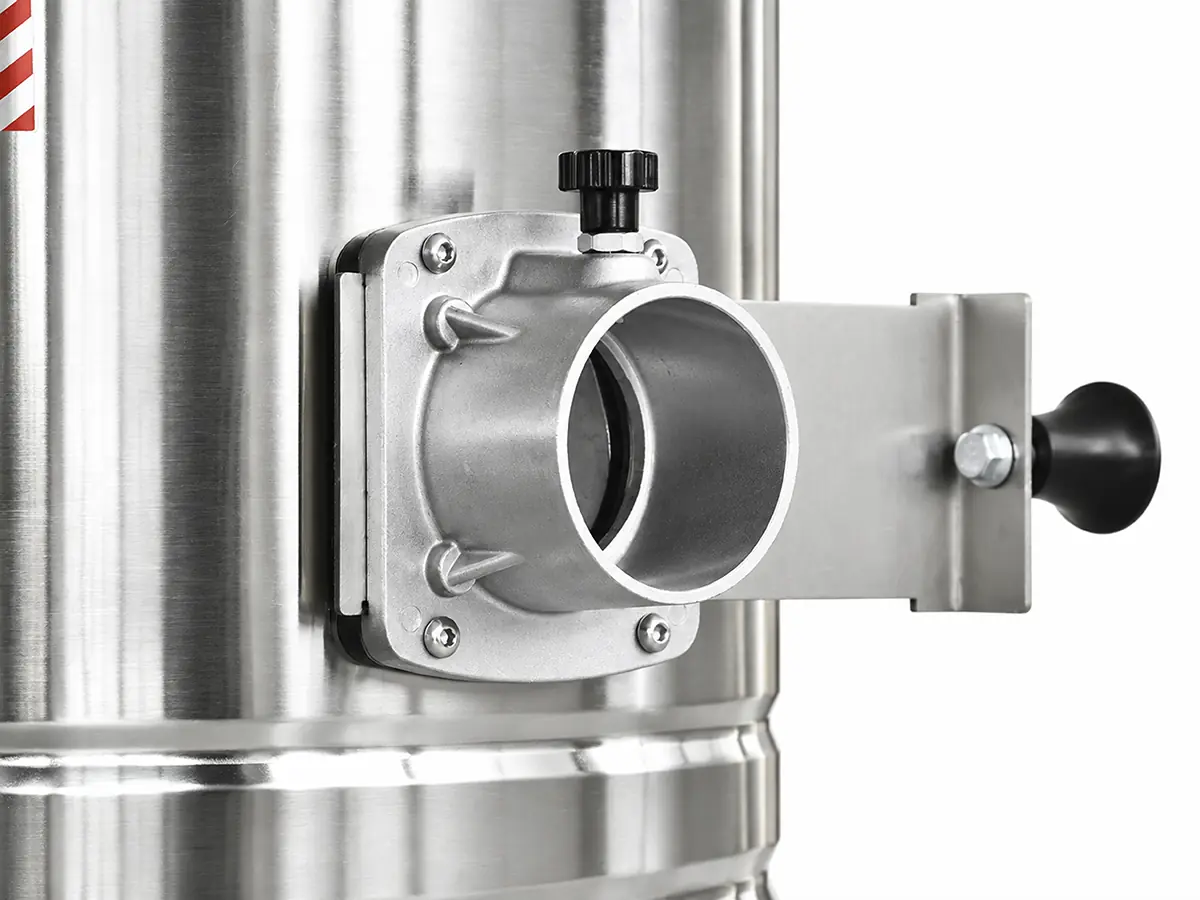

50 mm Cast Aluminum Inlet
Fits 50 mm suction kits and captures most solid particles without clogging.
Heavy-Duty Vacuum Motor
Copper-wound motor with high-temperature resistance and extended service life; noise level below 70 dB.

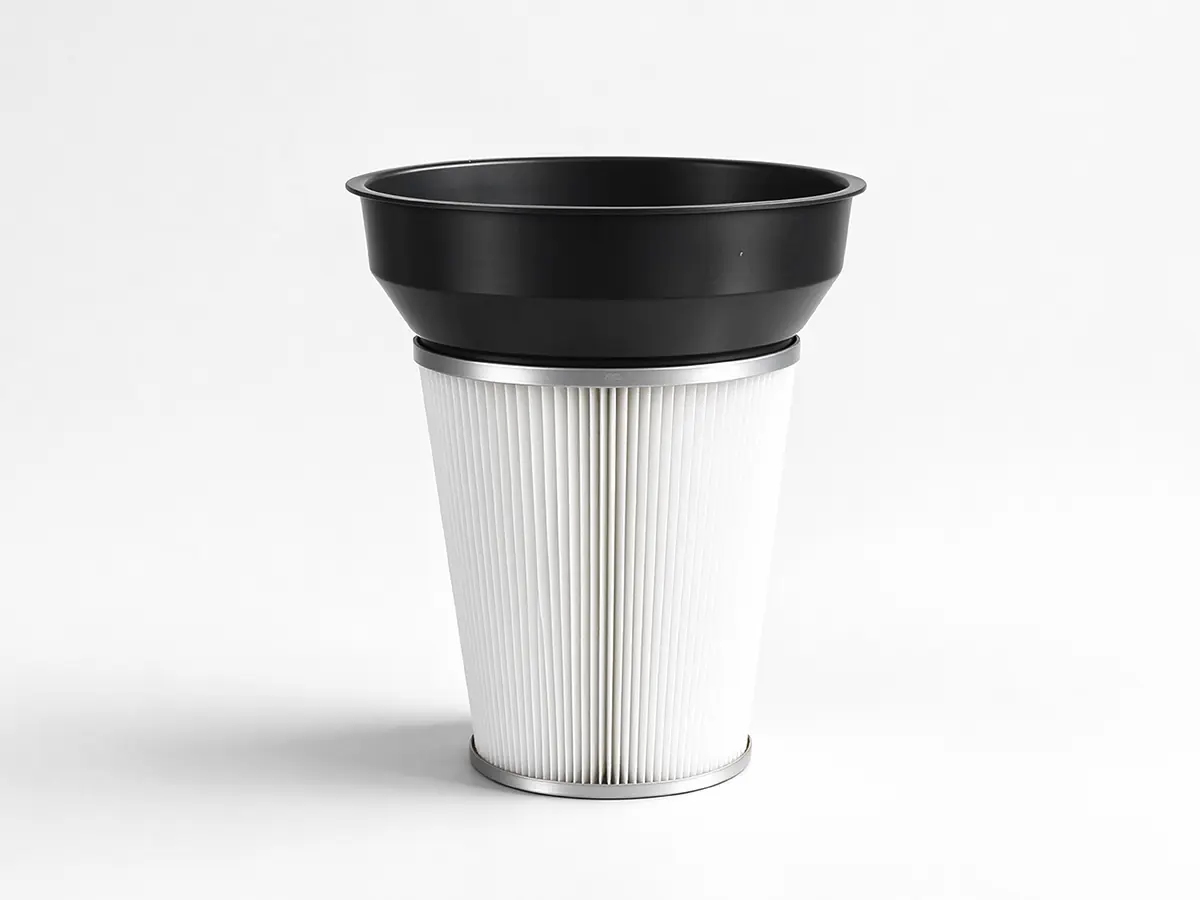

Filter Cartridge
This filter cartridge is not foldable. PTFE-coated polyester cartridge with 0.3 μm filtration accuracy and a 25,000 cm² filter area.

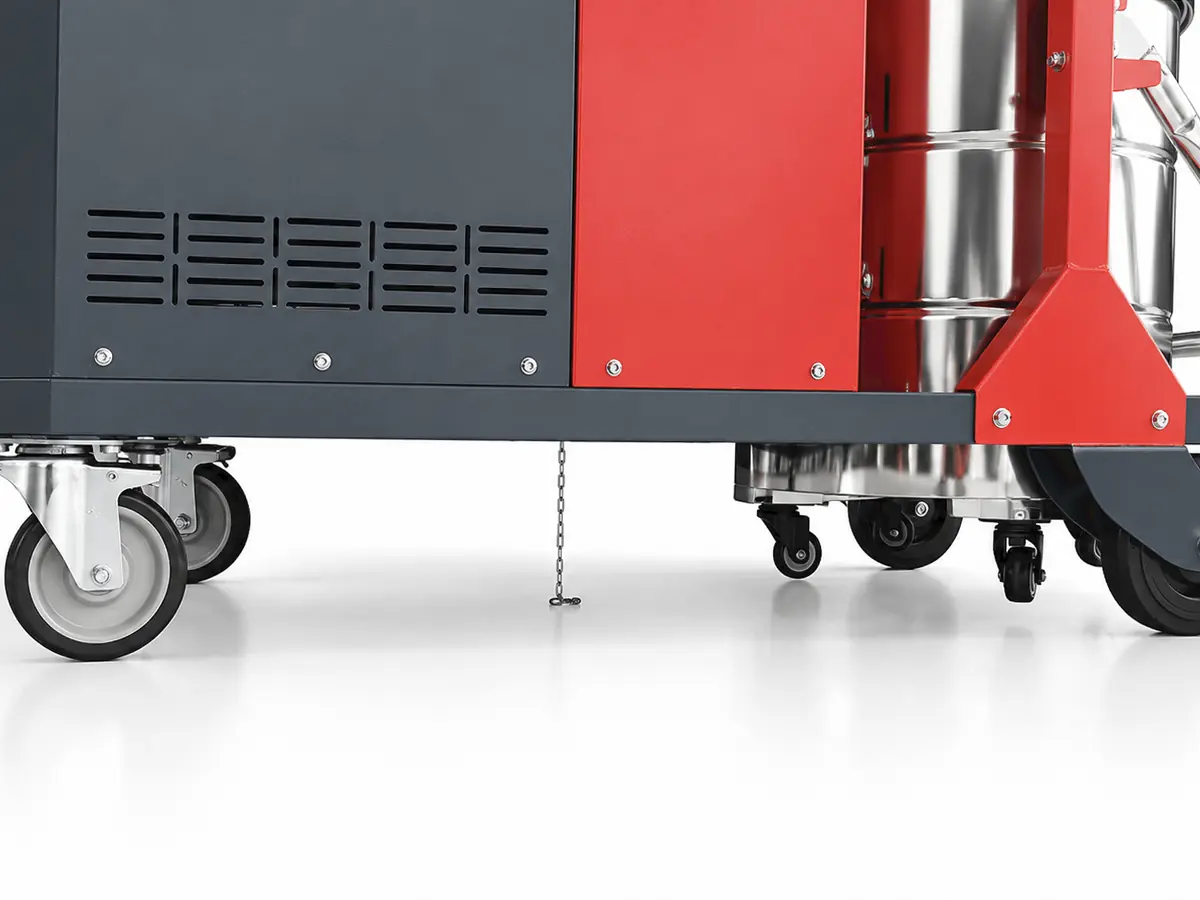

Casters and Base
Casters are fitted at the base to help position the machine in the work area.

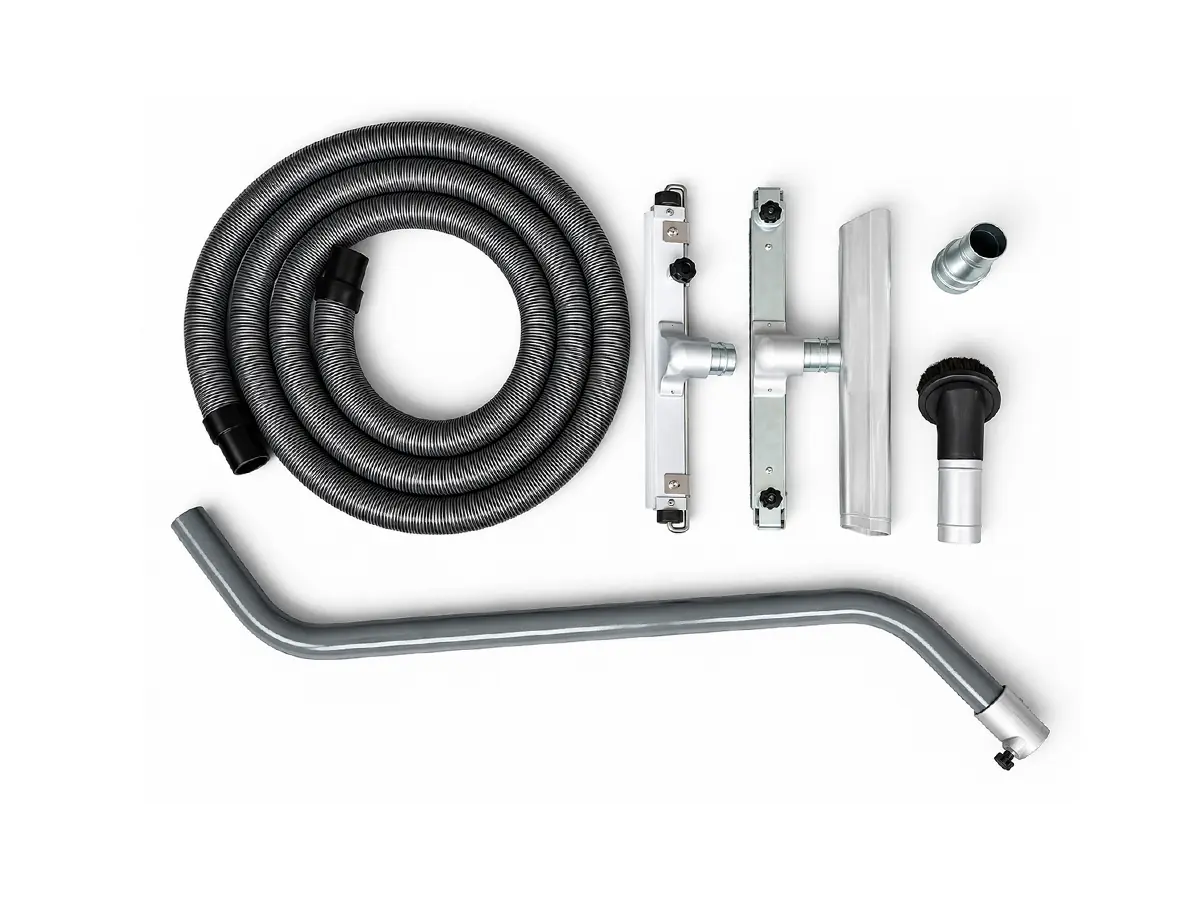

X8 Accessories
The image shows the hose and cleaning attachments for the X8. Confirm the supplied set and connection size for your order.
Typical applications
Manufacturing lines, workshops, warehouses and maintenance teams handling dust, chips, dry debris or compatible liquids for the selected configuration.
Configuration before ordering
Confirm the material, dust hazard, required airflow or vacuum, hose route, operating duration, voltage, collection method and accessories. Final specifications and accessories must be confirmed for the selected model and destination before ordering.
Download
Documents & compliance
Document scope varies by model and destination. Confirm the required files with export sales before ordering.
Product documentation
Product manual PDF
Download the product manual for this model or model family. The current files include bilingual covers and Chinese operating instructions.
