SHIWOSI X9 Industrial Vacuum | Automatic Pulse Cleaning
Industrial vacuum for high-dust workshops, using automatic pulse reverse-blow cleaning to maintain filter performance.
Get a Factory Quote
Configuration supportMachine selection based on your task
Export documentationConfirm documents by model and market
After-Sales & Spare Parts SupportMaintenance and spare-parts planning
Product information
Product Description
Industrial vacuum for high-dust workshops, using automatic pulse reverse-blow cleaning to maintain filter performance.
X9 Pro Configuration
The X9 Pro uses automatic pulse reverse-blow cleaning to remove dust from the filter during operation.
Technical data
Complete specifications
Values shown are for the available industrial vacuum configurations. Confirm the final model and voltage before ordering.
| Item | X9-2 | X9-3 | X9-4 | X9-5 | X9-7 | X9-9 | X9-11 | X9-12 | X9-15 |
|---|---|---|---|---|---|---|---|---|---|
| Machine Type | Industrial Dust Vacuum | ||||||||
| Rated Power | 2.2 kW | 3 kW | 4 kW | 5.5 kW | 7.5 kW | 7.5 kW | 9.5 kW | 12.5 kW | 15 kW |
| Max Air Flow | 318m3/h | 318m3/h | 420m3/h | 530m3/h | 530m3/h | 1050m3/h | 1050m3/h | 1050m3/h | 1050m3/h |
| Max Pressure | 210 mbar | 270 mbar | 290 mbar | 300 mbar | 320 mbar | 210 mbar | 280 mbar | 290 mbar | 320 mbar |
| Machine Weight | 95 kg | 100 kg | 110 kg | 125 kg | 135 kg | 172 kg | 180 kg | 180 kg | 180 kg |
| Voltage | 380/220 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V |
| Dust Cleaning Method | Automatic Pulse jet clean | ||||||||
| Filter Configuration | PTFE coated polyester cartridge | ||||||||
| Filtration Accuracy | 0.3um | ||||||||
| Filtration Area | 25000cm2 | ||||||||
| Container Capacity | 100 L | ||||||||
| Dimensions | 1350 x 590 x 1400 mm | 1450 x 630 x 1560 mm | |||||||
| Filter Cleaning | Automatic pulse reverse-blow | ||||||||
| Filtration | H-grade dust filtration | ||||||||
| Application | High-dust workshops | ||||||||
| Mobility | Swivel castors | ||||||||
Technical data
Complete specifications
Values apply to the listed configuration. Confirm final specifications before placing an order.
- Model
- X9
- Machine Type
- Industrial Dust Vacuum
- Model Options
- X9-2 / X9-3 / X9-4 / X9-5 / X9-7 / X9-9 / X9-11 / X9-12 / X9-15
- Rated Power
- X9-2: 2.2 kW; X9-3: 3 kW; X9-4: 4 kW; X9-5: 5.5 kW; X9-7: 7.5 kW; X9-9: 7.5 kW; X9-11: 9.5 kW; X9-12: 12.5 kW; X9-15: 15 kW
- Max Air Flow
- X9-2: 318m3/h; X9-3: 318m3/h; X9-4: 420m3/h; X9-5: 530m3/h; X9-7: 530m3/h; X9-9: 1050m3/h; X9-11: 1050m3/h; X9-12: 1050m3/h; X9-15: 1050m3/h
- Max Pressure
- X9-2: 210 mbar; X9-3: 270 mbar; X9-4: 290 mbar; X9-5: 300 mbar; X9-7: 320 mbar; X9-9: 210 mbar; X9-11: 280 mbar; X9-12: 290 mbar; X9-15: 320 mbar
- Machine Weight
- X9-2: 95 kg; X9-3: 100 kg; X9-4: 110 kg; X9-5: 125 kg; X9-7: 135 kg; X9-9: 172 kg; X9-11: 180 kg; X9-12: 180 kg; X9-15: 180 kg
- Voltage
- X9-2: 380/220 V; X9-3: 380 V; X9-4: 380 V; X9-5: 380 V; X9-7: 380 V; X9-9: 380 V; X9-11: 380 V; X9-12: 380 V; X9-15: 380 V
- Dust Cleaning Method
- X9-2: Automatic Pulse jet clean
- Filter Configuration
- X9-2: PTFE coated polyester cartridge
- Filtration Accuracy
- X9-2: 0.3um
- Filtration Area
- X9-2: 25000cm2
- Container Capacity
- X9-2: 100 L
- Dimensions
- X9-2: 1350 x 590 x 1400 mm; X9-3: 1450 x 630 x 1560 mm
- Filter Cleaning
- Automatic pulse reverse-blow
- Filtration
- H-grade dust filtration
- Application
- High-dust workshops
- Mobility
- Swivel castors
Product Highlights

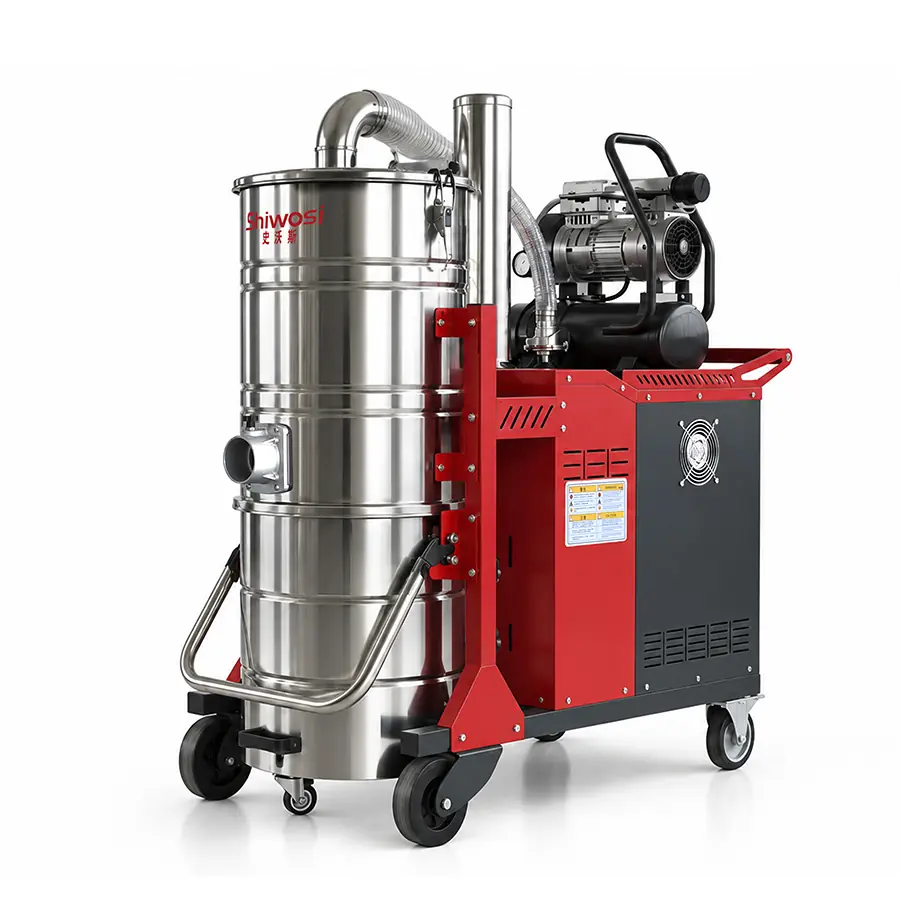

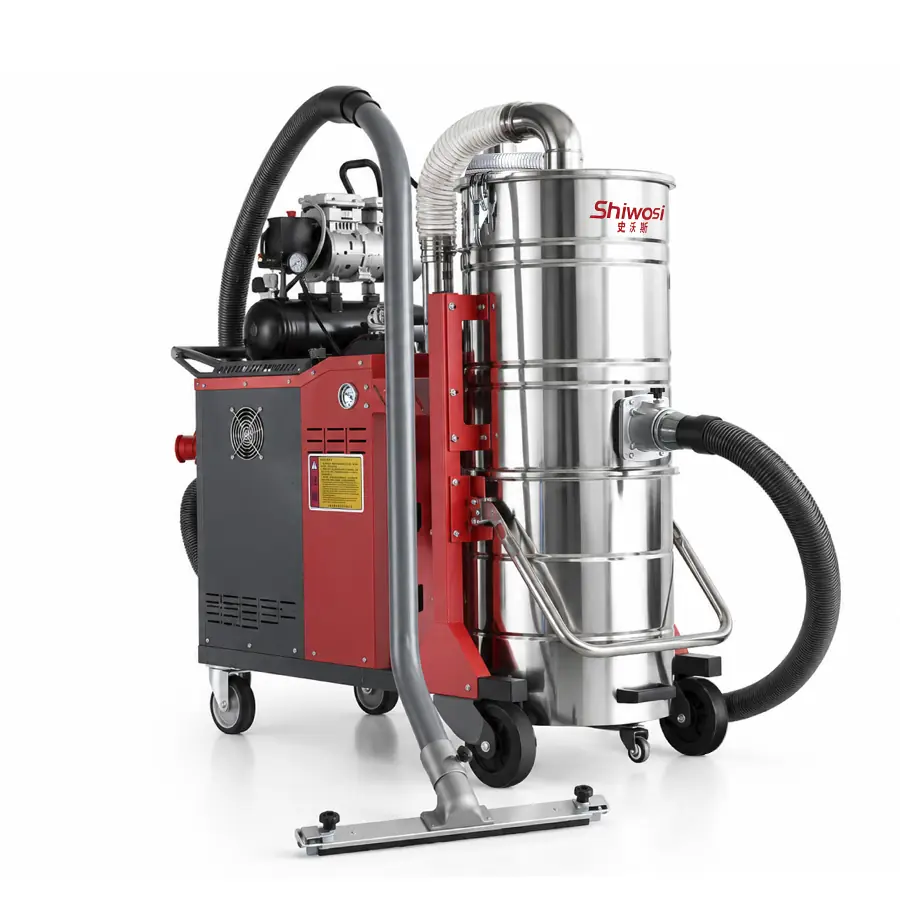

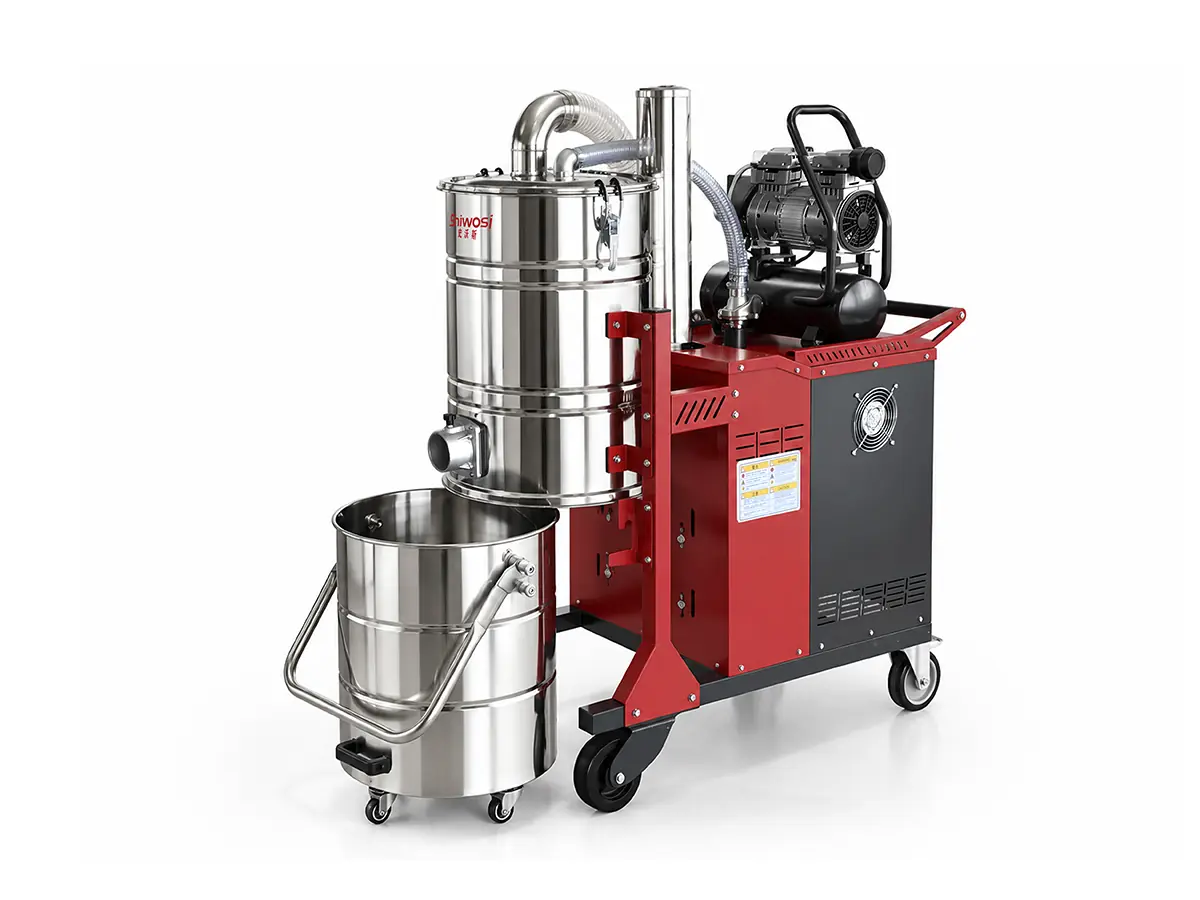

X9 Pro Machine View
Overall view of the X9 Pro and its vacuum and collection assemblies.

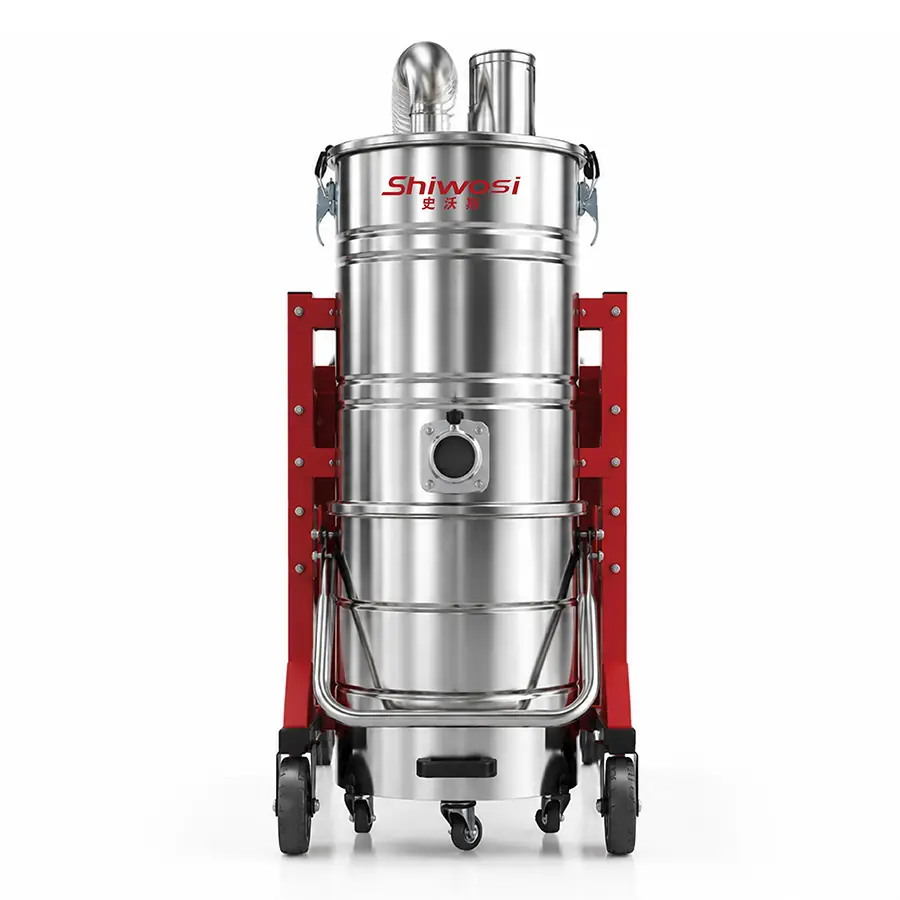

Collection Vessel and Frame
Collection vessel mounted on the mobile frame.

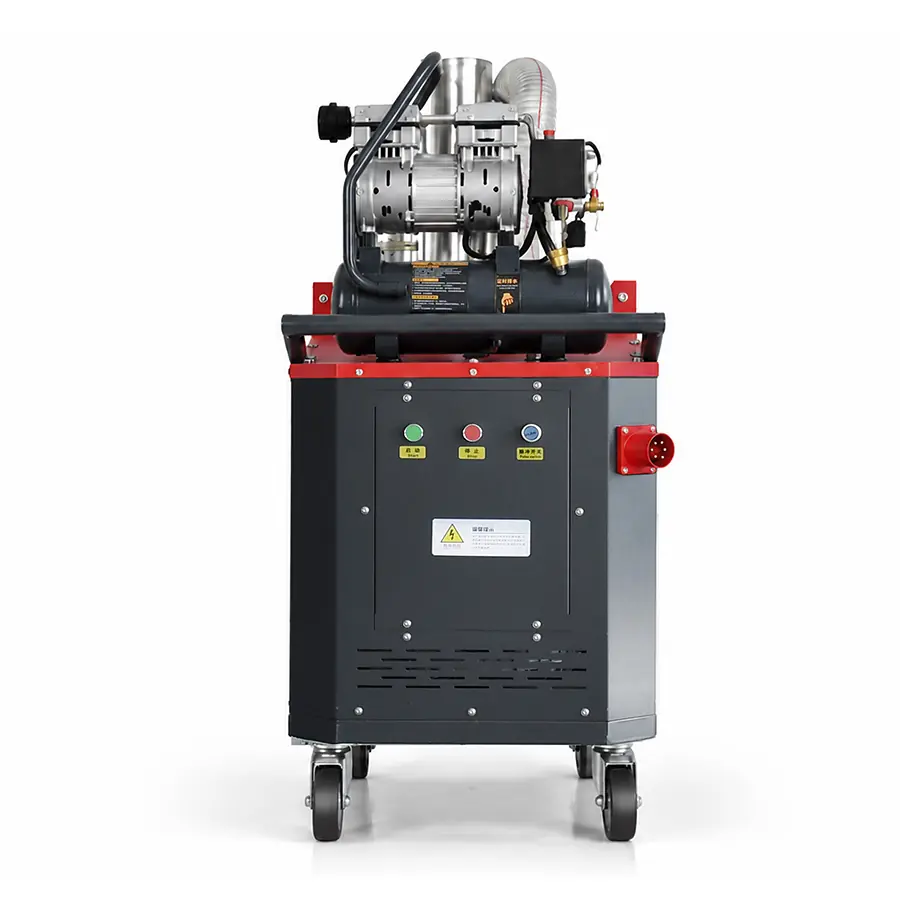

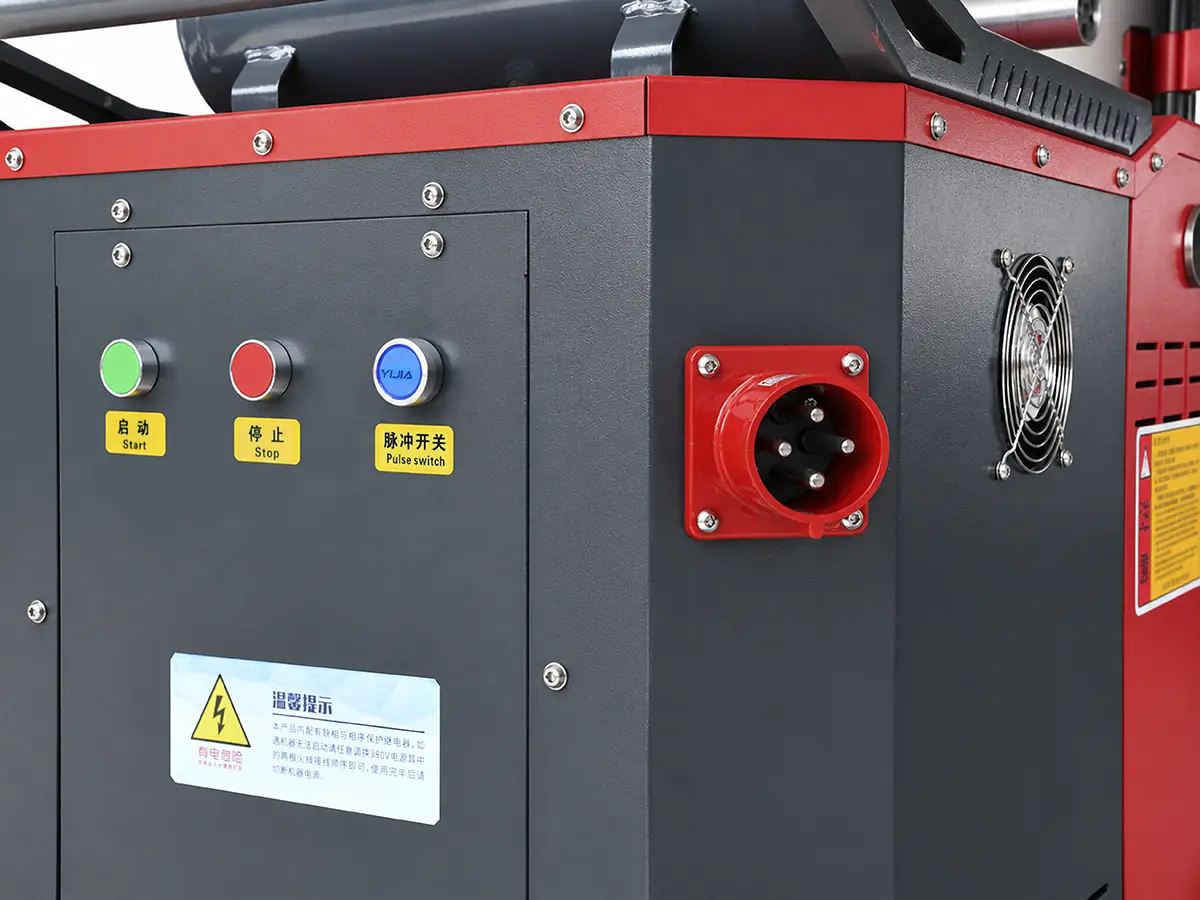

Control Panel
Operating controls are grouped on the rear panel.

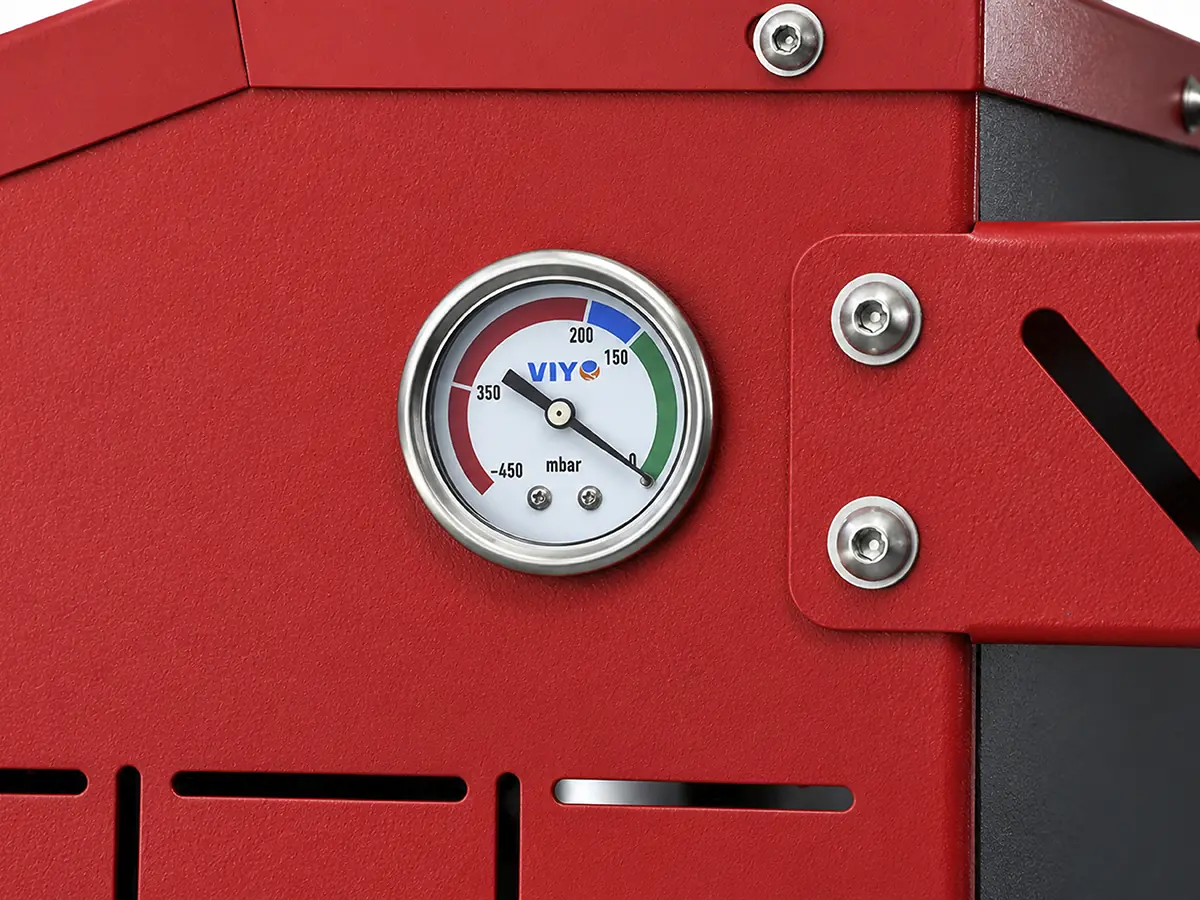

Vacuum Gauge
Gauge mounted on the housing.

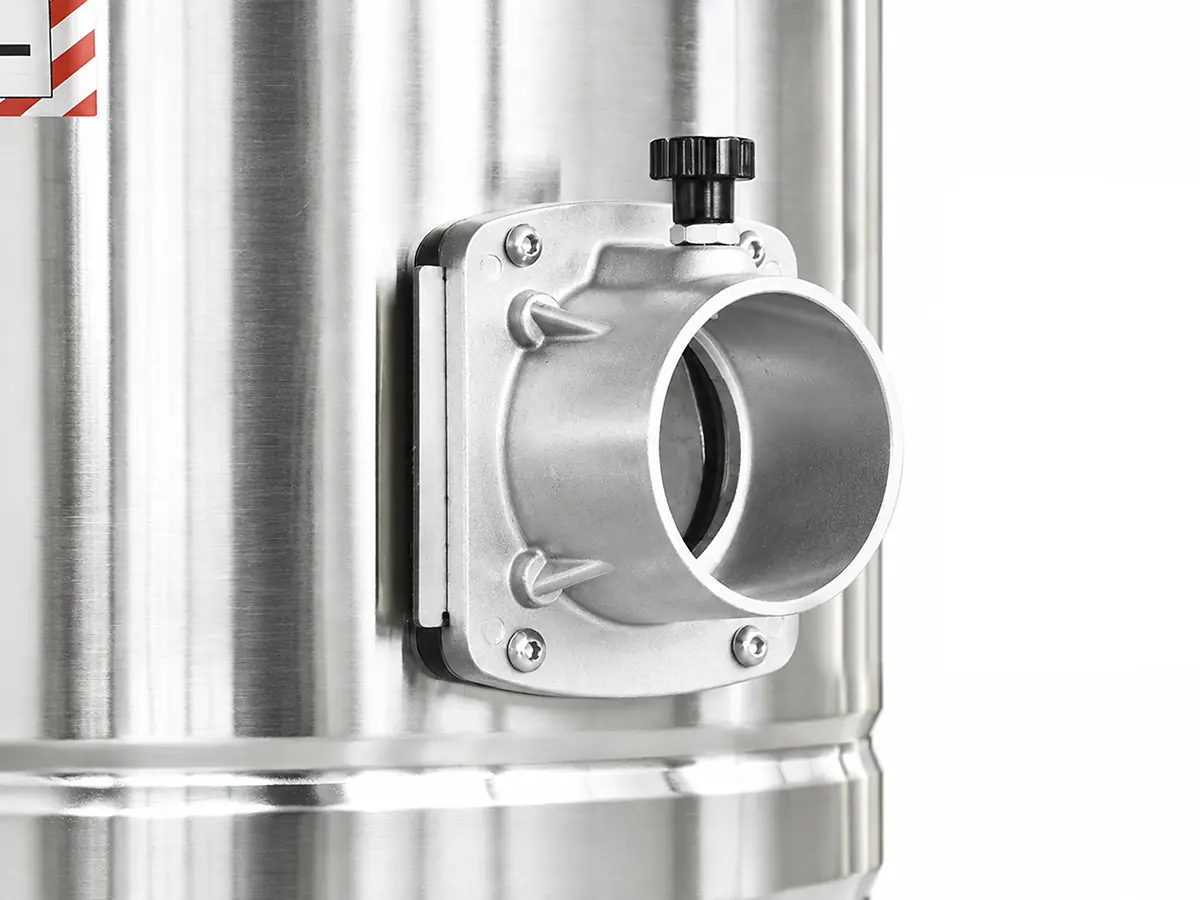

50 mm Cast Aluminum Inlet
Fits 50 mm suction kits and captures most solid particles without clogging.

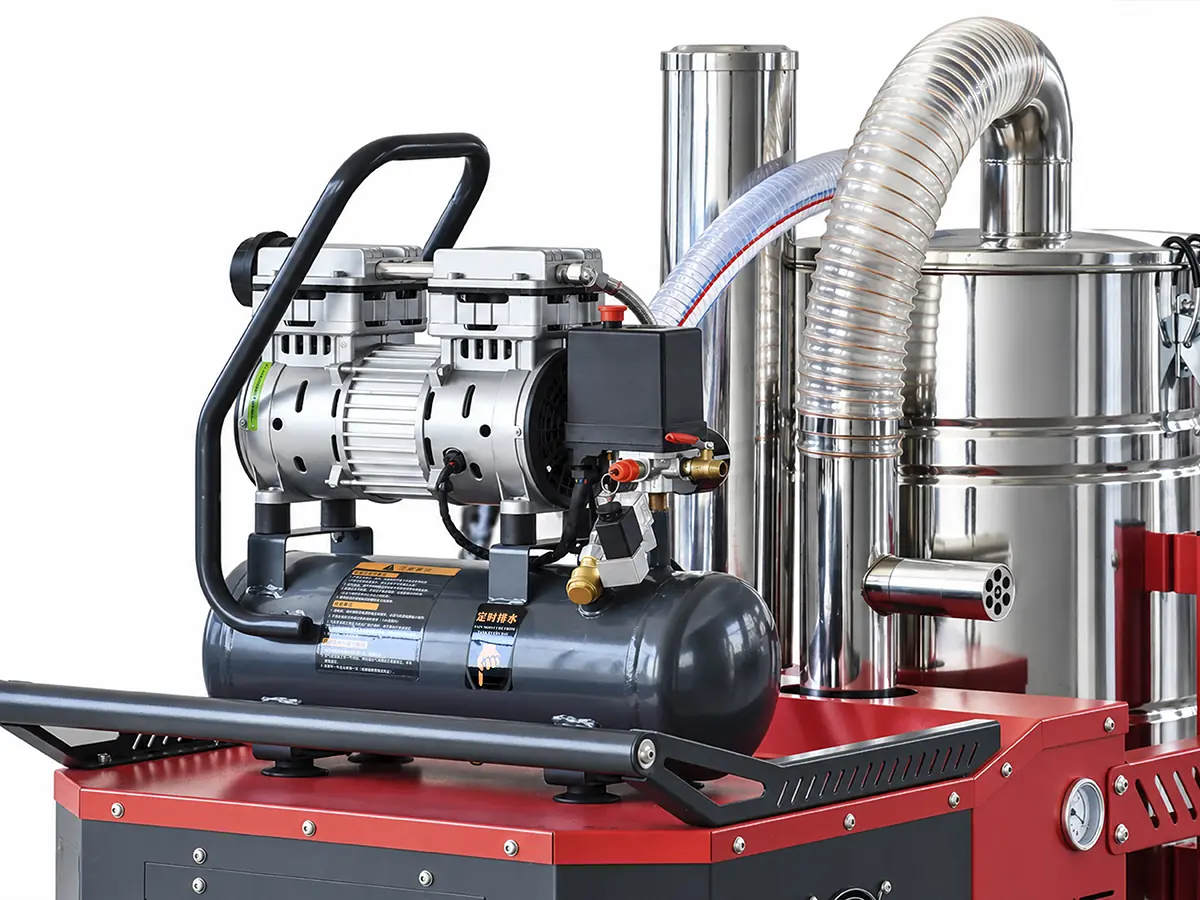

Vacuum Motor Assembly
Die-cast aluminum brushless turbine fan and copper-wound motors; specified noise level is below 68 dB.

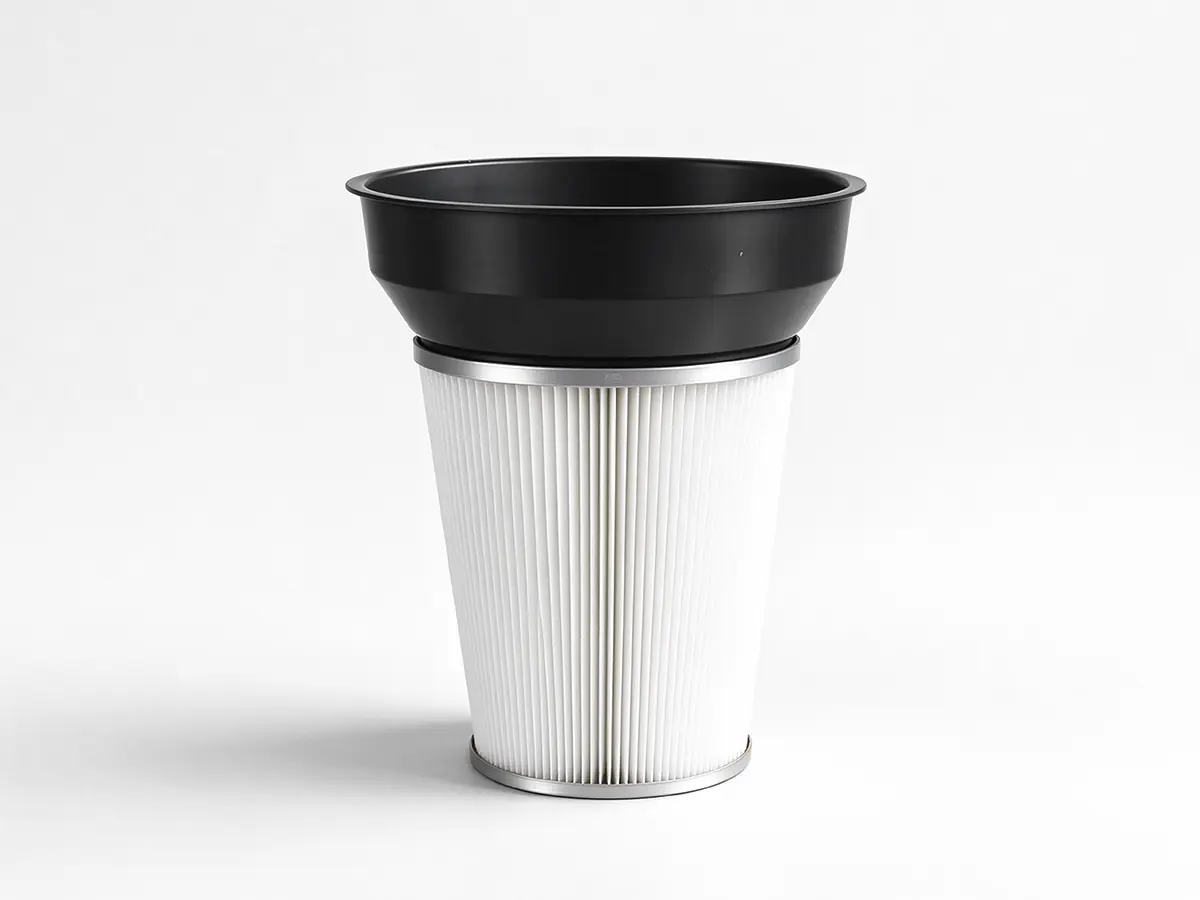

Filter Element
The X9 filter information specifies 0.3 μm filtration accuracy and a reusable, washable filter element.

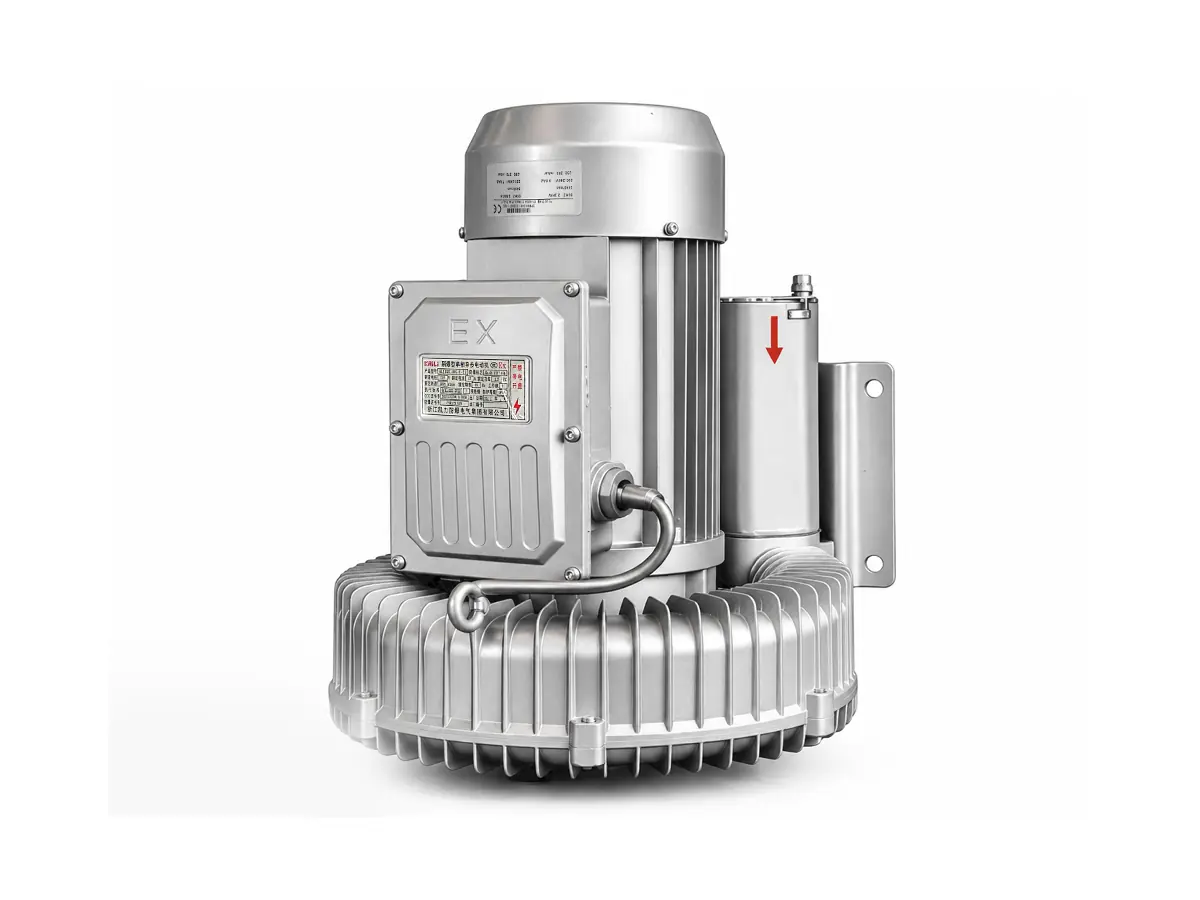

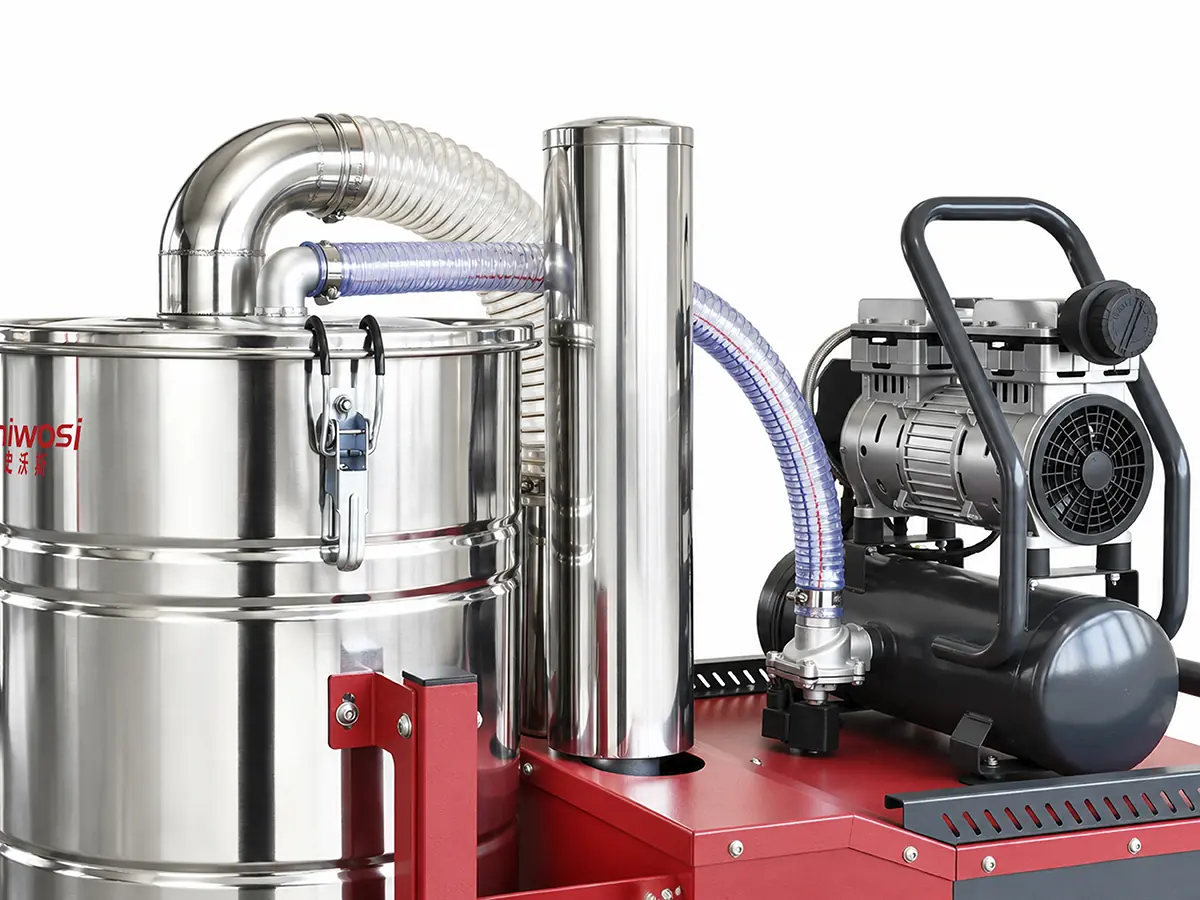

Turbine Vacuum Motor
Close-up of the turbine motor assembly.

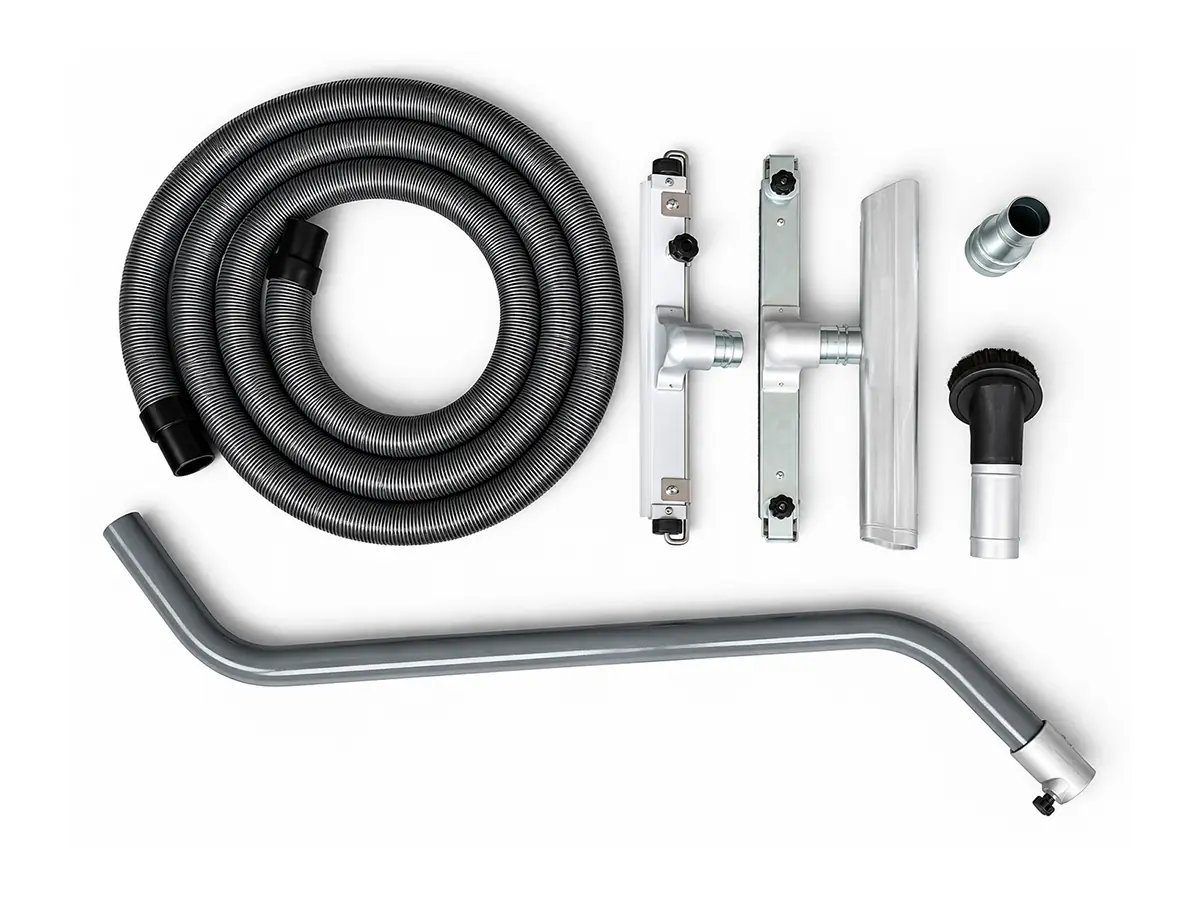

50 mm Suction Accessories
Hose and attachments for different pickup tasks. The front squeegee is optional.
Typical applications
Industrial vacuum for high-dust workshops, using automatic pulse reverse-blow cleaning to maintain filter performance.
Configuration before ordering
Confirm the material, dust type, required airflow or vacuum, operating duration, power supply, collection method and attachments for the selected model before ordering.
