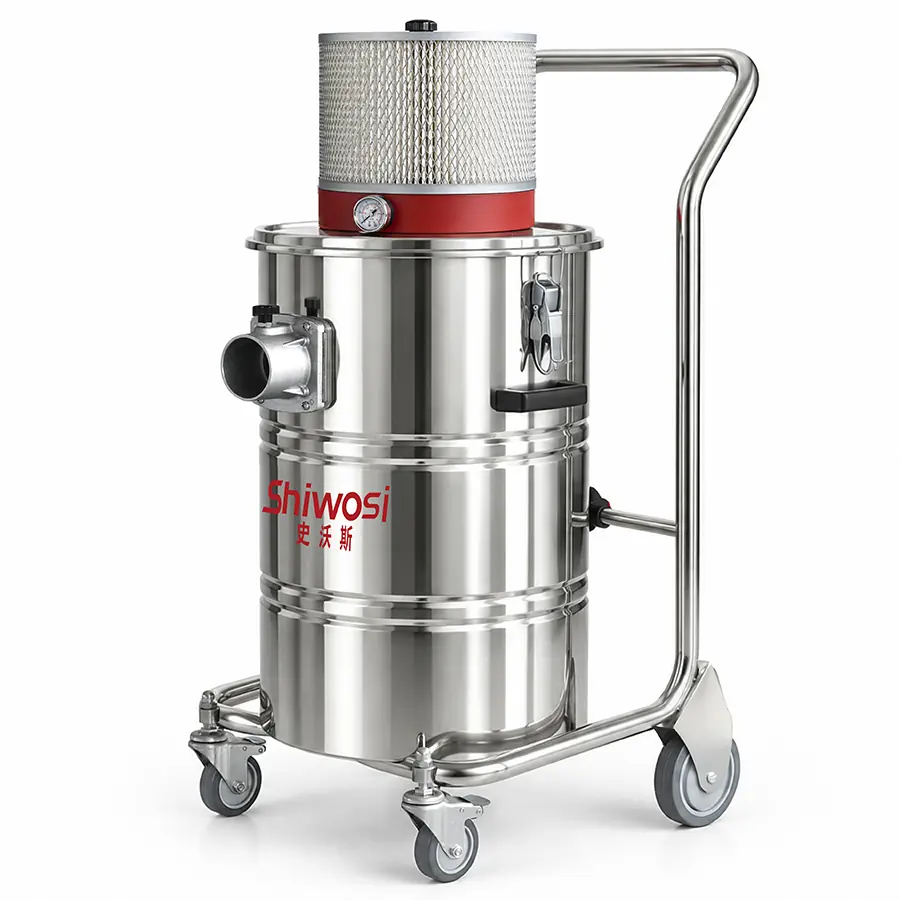

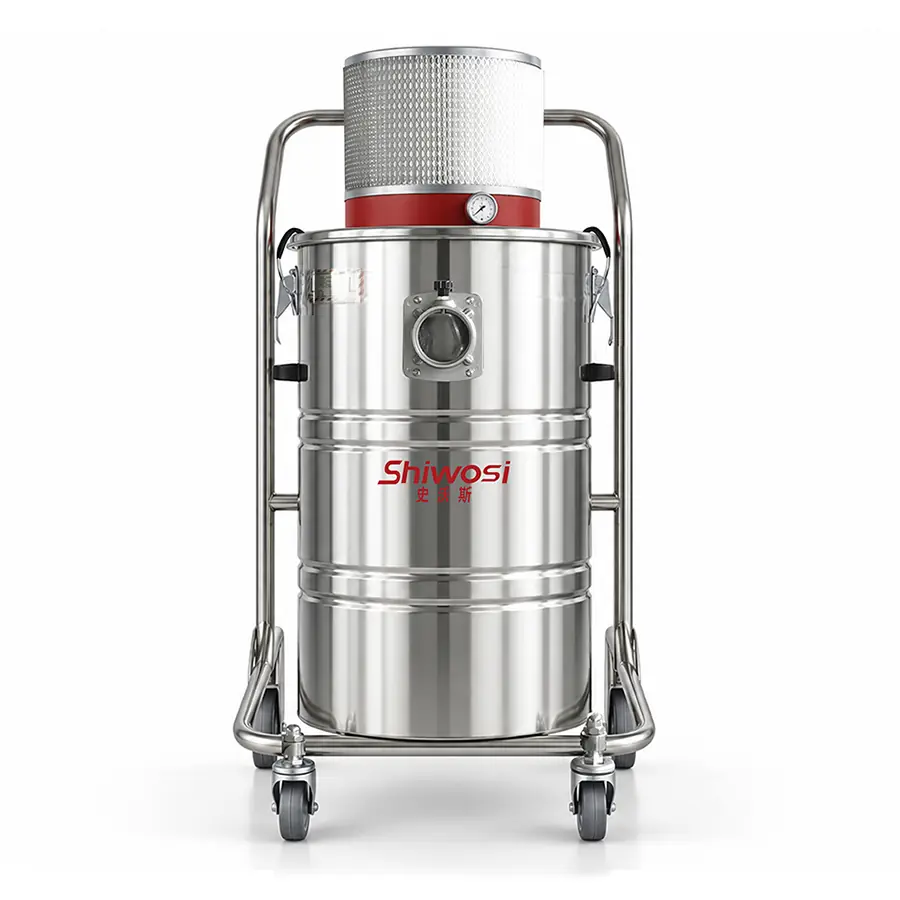

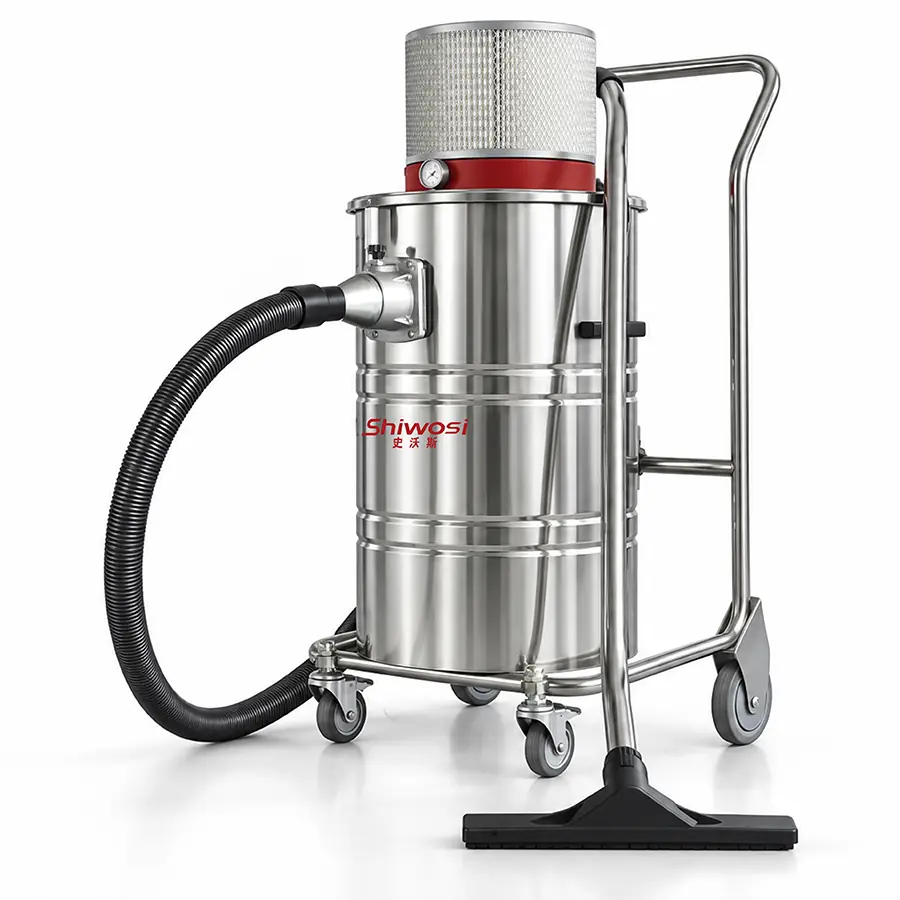

SHIWOSI Q Series Pneumatic Industrial Vacuum | Venturi Powered
Compressed-air industrial vacuum using the Venturi effect, with no electric motor or moving parts in the vacuum generator.
Get a Factory Quote
Configuration supportMachine selection based on your task
Export documentationConfirm documents by model and market
After-Sales & Spare Parts SupportMaintenance and spare-parts planning
Product information
Product Description
Compressed-air industrial vacuum using the Venturi effect, with no electric motor or moving parts in the vacuum generator.
Q Series Configuration
Compressed air powers the Venturi vacuum generator. The unit has no electric motor in the vacuum generator.
Technical data
Complete specifications
Values shown are for the available industrial vacuum configurations. Confirm the final model and voltage before ordering.
| Item | Q30 | Q80 | Q80pro-T |
|---|---|---|---|
| Machine Type | Pneumatic Industrial Vacuum | ||
| Drive Source | Air compression | ||
| Max Air Flow | 159 m3/h | 256 m3/h | 256 m3/h |
| Max Pressure | 230 mbar | 280 mbar | 280 mbar |
| Machine Weight | 11 kg | 27 kg | 28 kg |
| Sound Level | 71 dB | 73 dB | 73 dB |
| Dust Cleaning Method | Manual cleaning | reverse pulse dust cleaning | |
| Filter Configuration | Dust Barrier+HEPA filter | Polyester Fiber Coated Hepa Filter cartridge | |
| Filtration Accuracy | 0.3um | ||
| Filtration Area | 25000 cm2 | ||
| Container Capacity | 30 L | 80 L | |
| Dimensions | 400 x 400 x 780 mm | 600 x 650 x 1060 mm | |
| Power Source | Compressed air | ||
| Vacuum Principle | Venturi effect | ||
| Motor | No electric motor | ||
| Duty | Continuous-operation environments | ||
Technical data
Complete specifications
Values apply to the listed configuration. Confirm final specifications before placing an order.
- Model
- Q Series
- Machine Type
- Pneumatic Industrial Vacuum
- Model Options
- Q30 / Q80 / Q80pro-T
- Drive Source
- Q30: Air compression
- Max Air Flow
- Q30: 159 m3/h; Q80: 256 m3/h; Q80pro-T: 256 m3/h
- Max Pressure
- Q30: 230 mbar; Q80: 280 mbar; Q80pro-T: 280 mbar
- Machine Weight
- Q30: 11 kg; Q80: 27 kg; Q80pro-T: 28 kg
- Sound Level
- Q30: 71 dB; Q80: 73 dB; Q80pro-T: 73 dB
- Dust Cleaning Method
- Q30: Manual cleaning; Q80: reverse pulse dust cleaning
- Filter Configuration
- Q30: Dust Barrier+HEPA filter; Q80: Polyester Fiber Coated Hepa Filter cartridge
- Filtration Accuracy
- Q30: 0.3um
- Filtration Area
- Q30: 25000 cm2
- Container Capacity
- Q30: 30 L; Q80: 80 L
- Dimensions
- Q30: 400 x 400 x 780 mm; Q80: 600 x 650 x 1060 mm
- Power Source
- Compressed air
- Vacuum Principle
- Venturi effect
- Motor
- No electric motor
- Duty
- Continuous-operation environments
Product Highlights

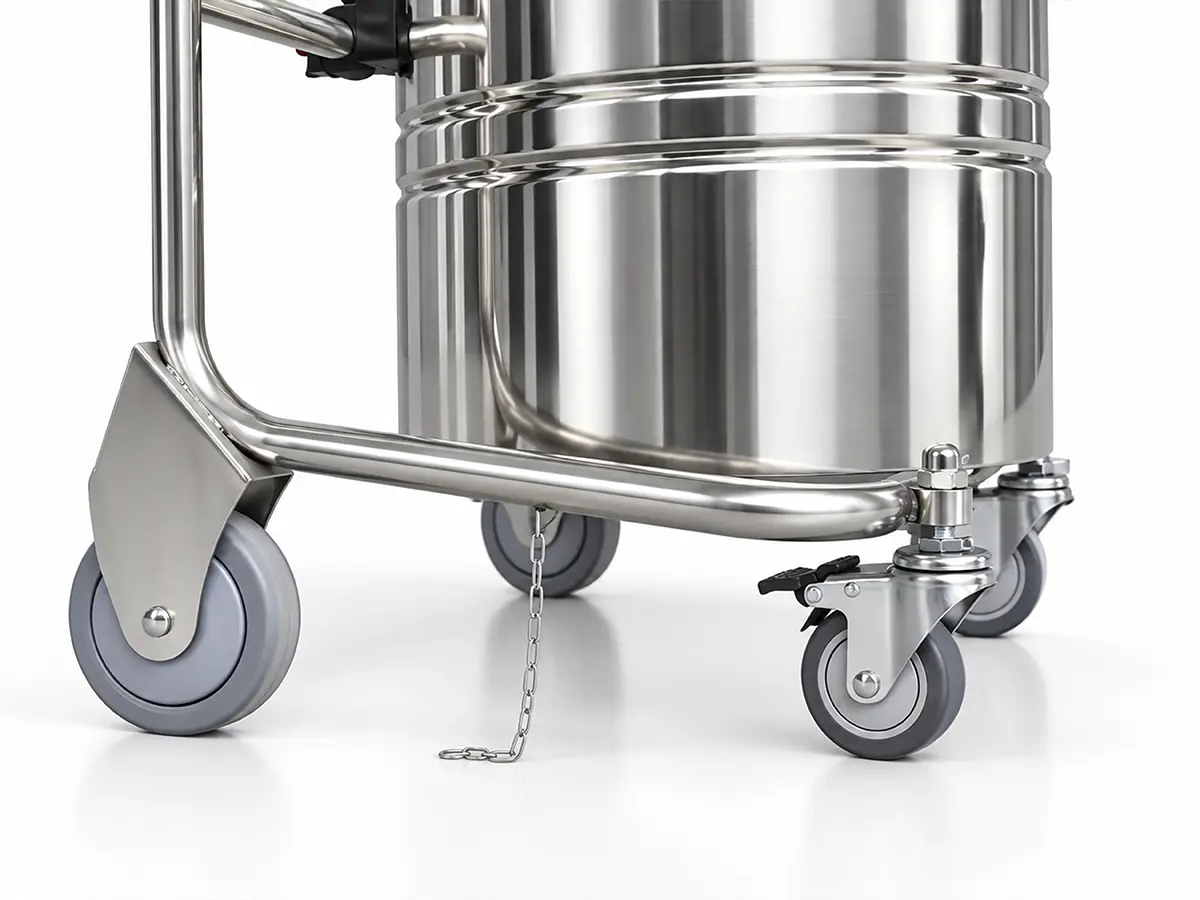

Caster with Wheel Stop
Caster and wheel-stop detail on the mobile base.

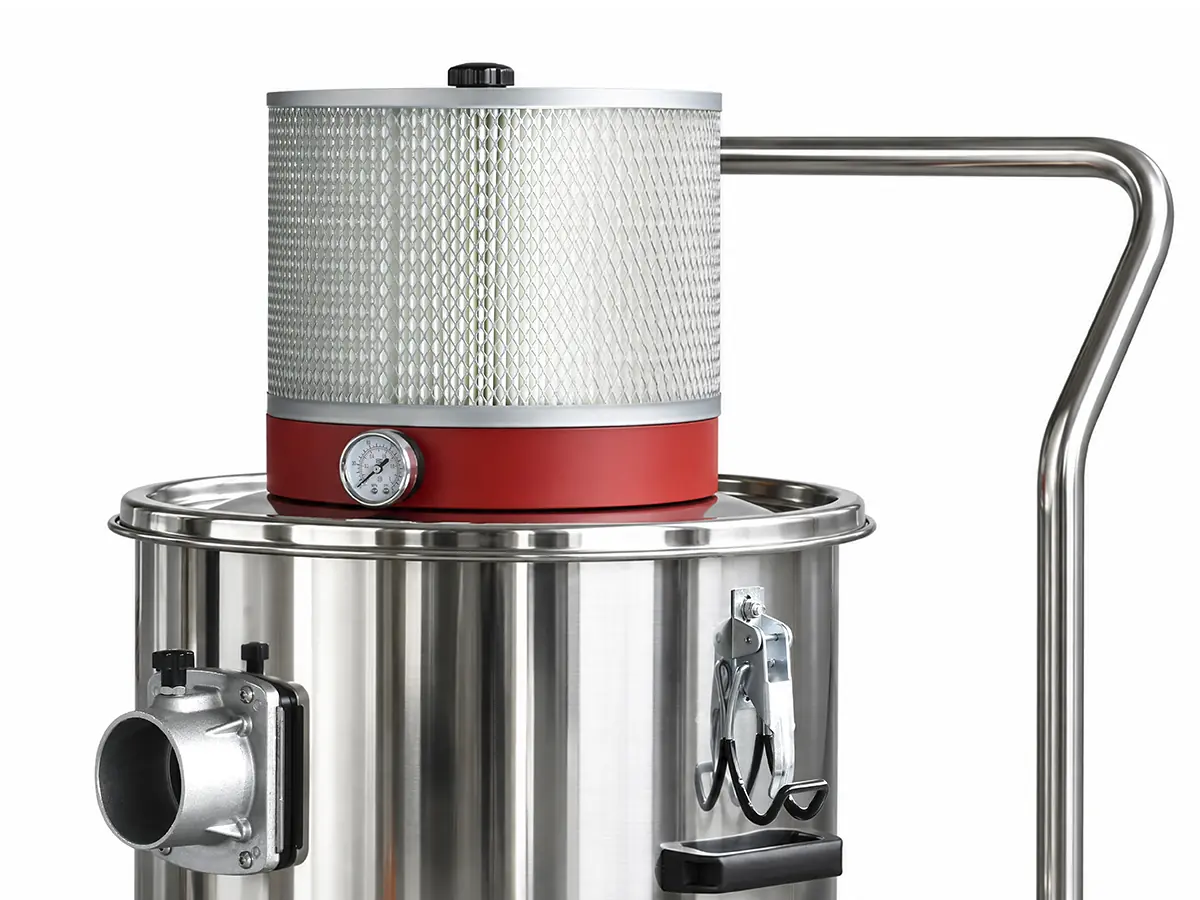

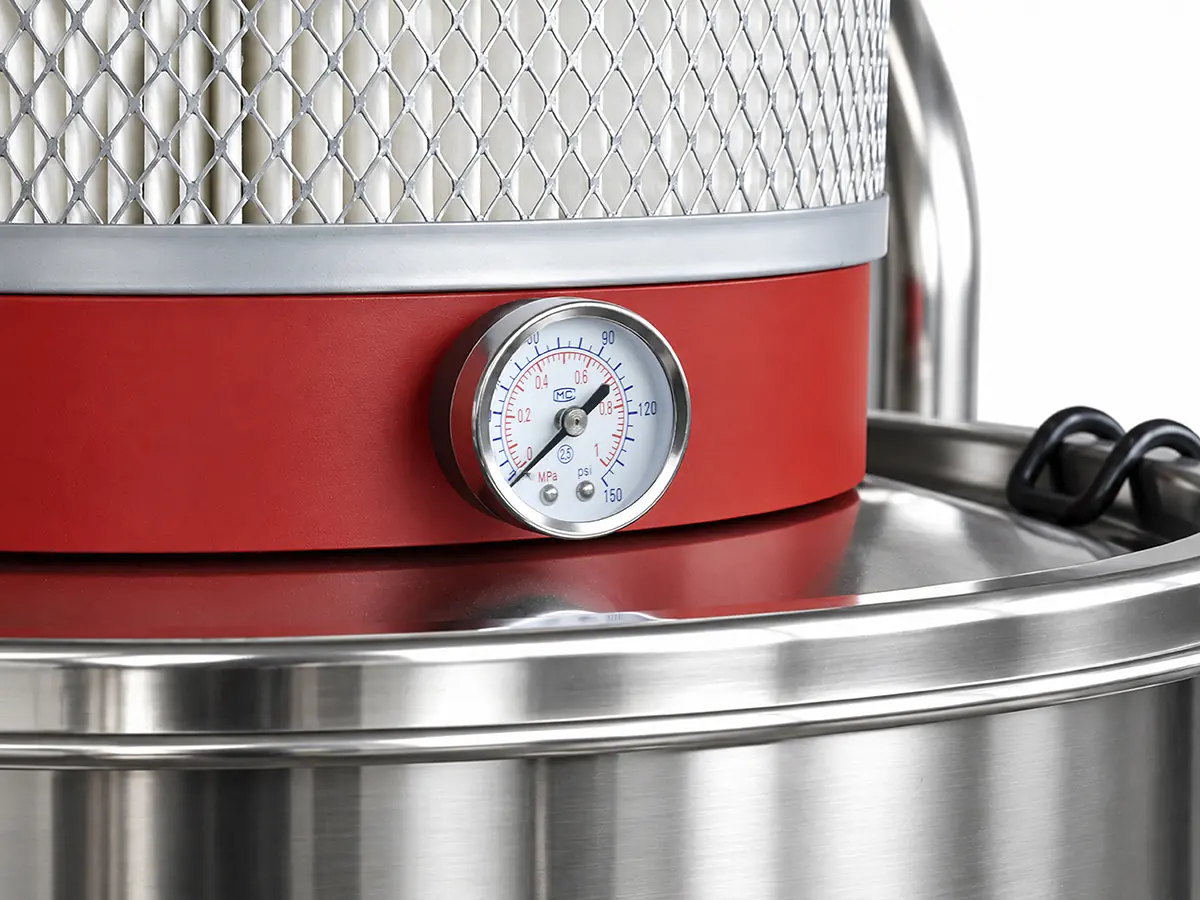

Filter Housing and Gauge
Close-up of the filter chamber and mounted pressure gauge.

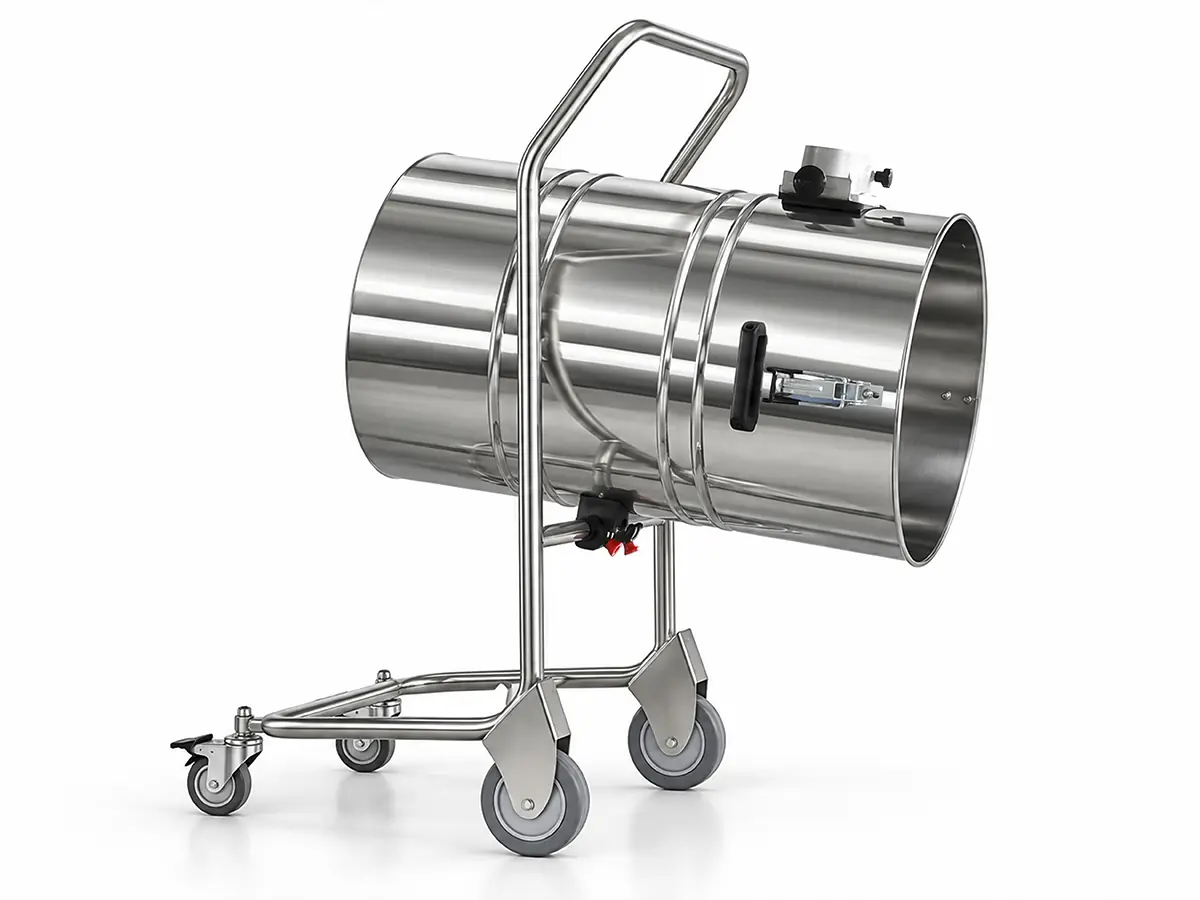

Collection Canister
Collection vessel shown on its handling frame.

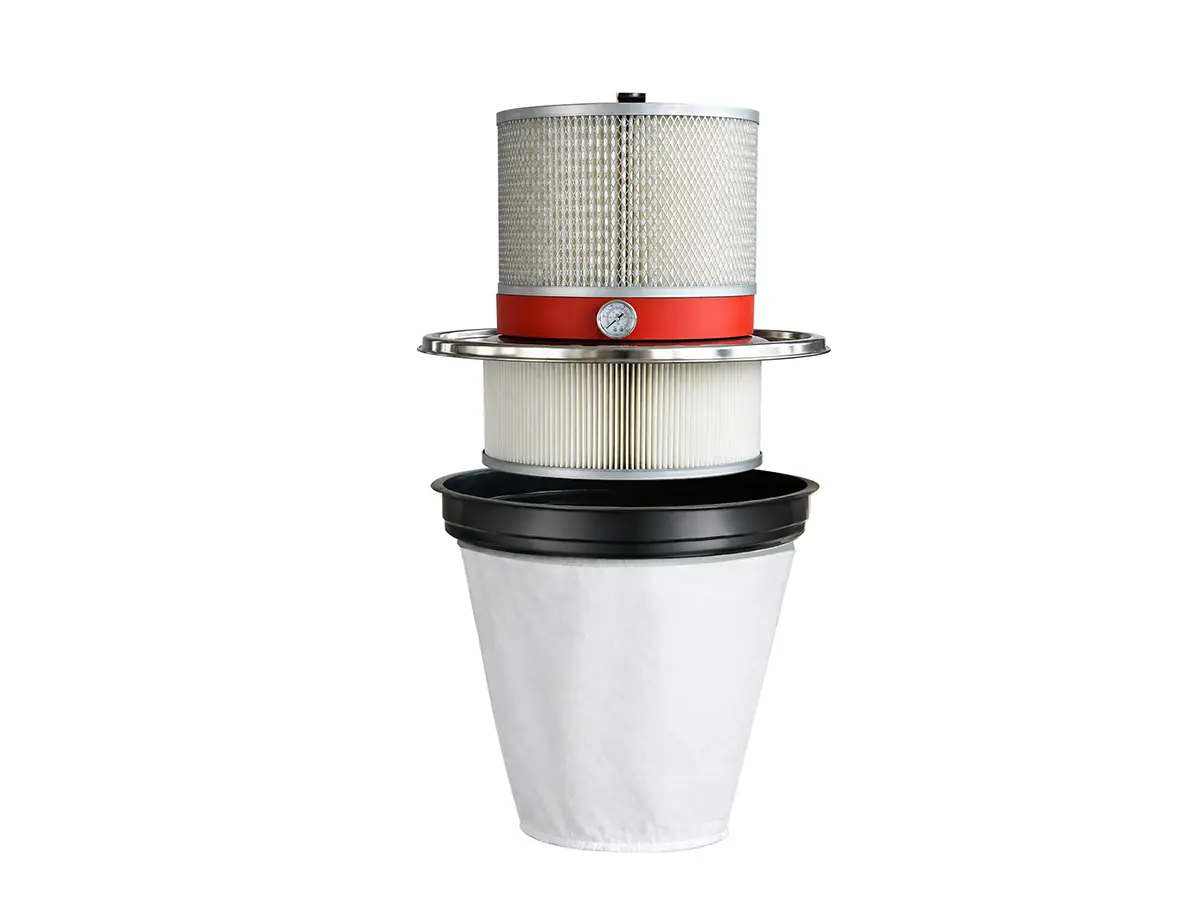

Collection Vessel Assembly
Top view of the vessel and filter assembly.
Filter Element
The Q Series specification lists 0.3 μm filtration accuracy; filter configuration varies by model.

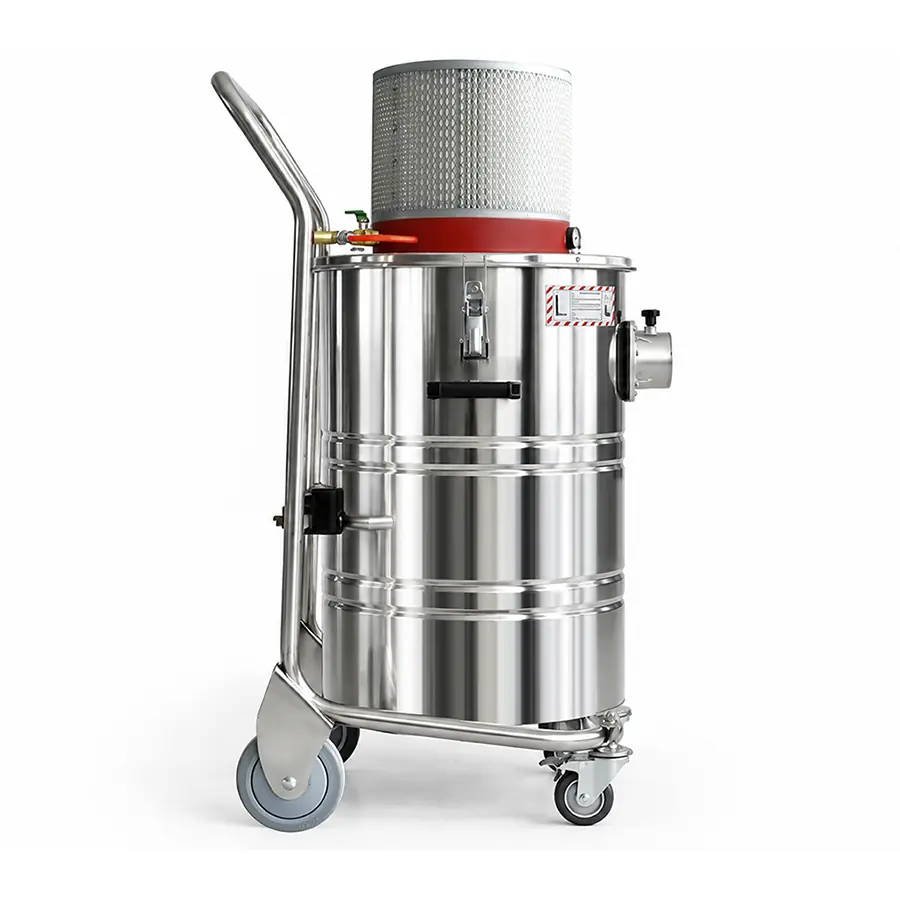

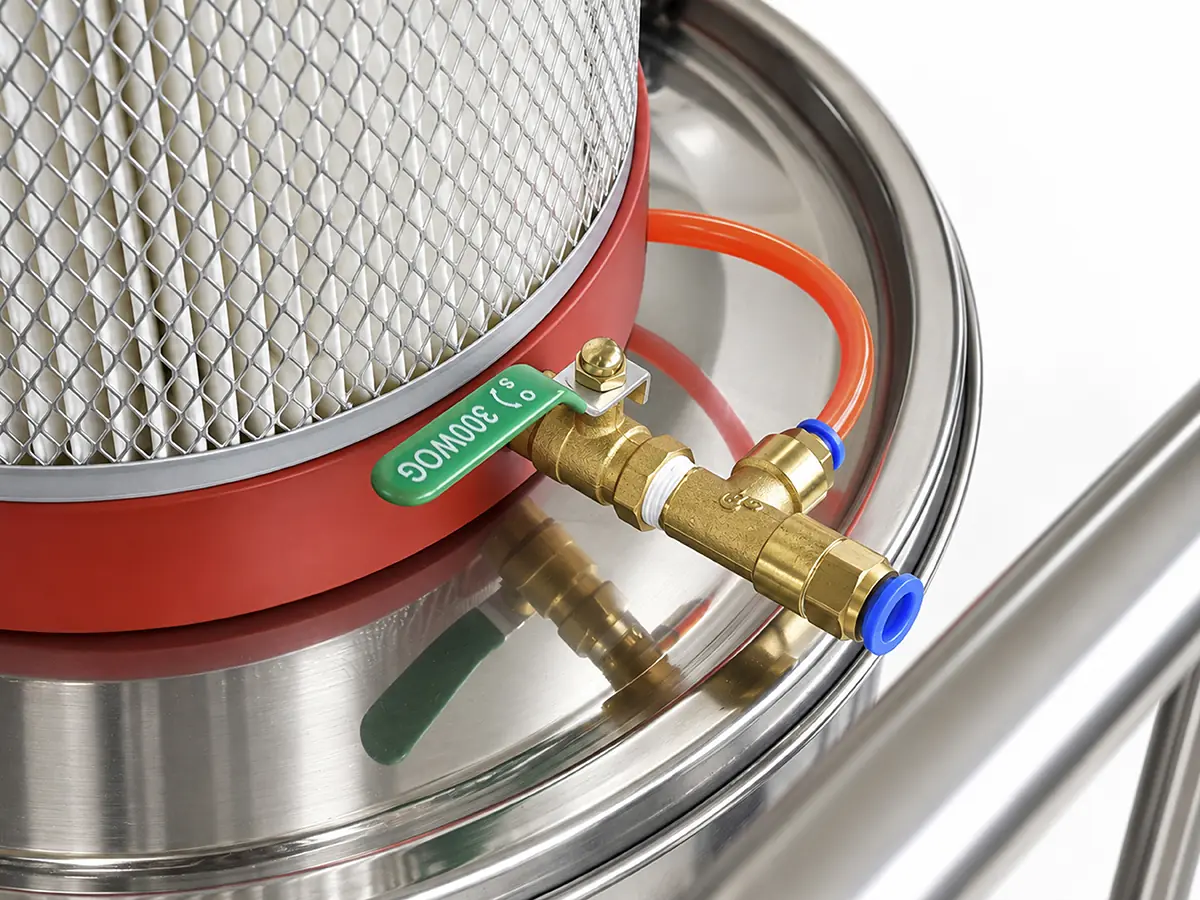

Compressed-Air Connection
Air-line fitting and valve detail for pneumatic operation.
Stainless-Steel Pickup Tool
Close-up of a stainless-steel pickup component.

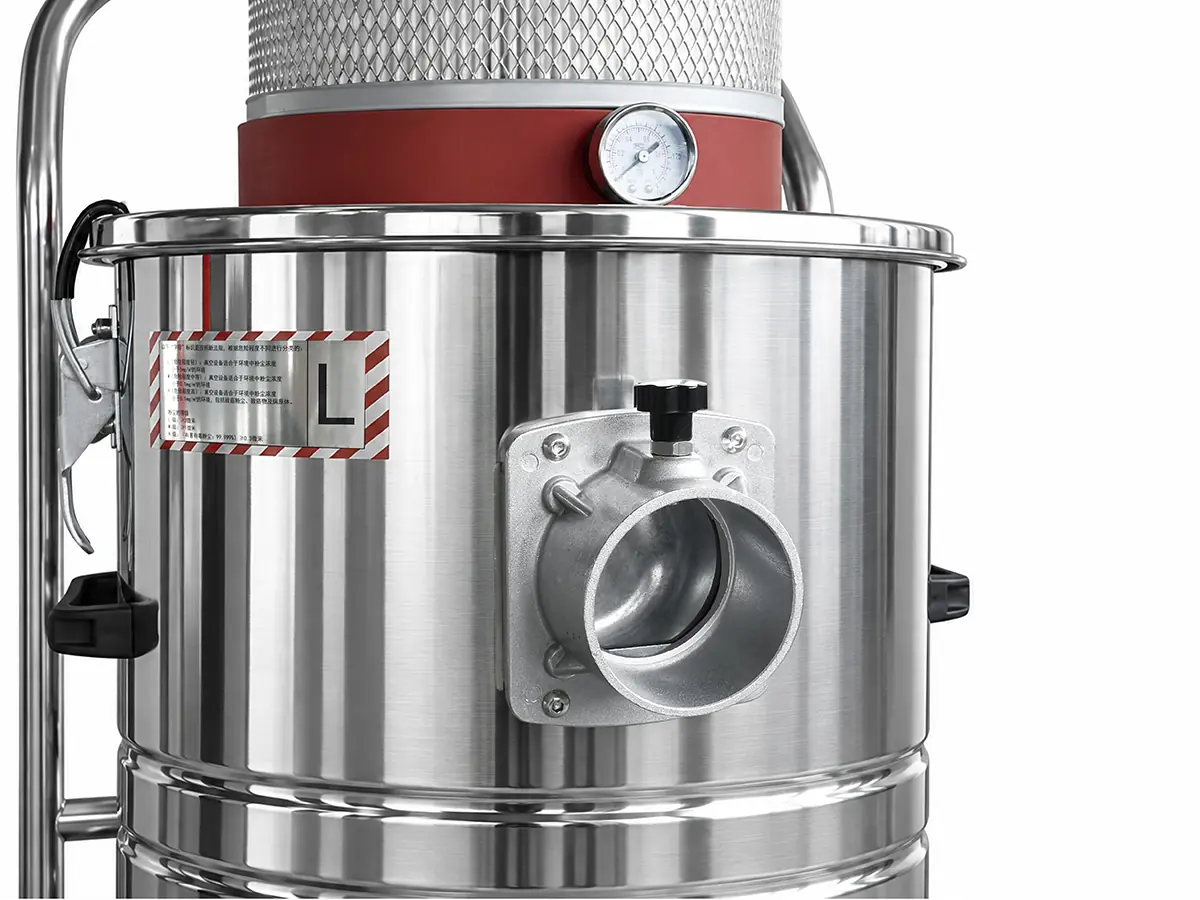

Vacuum Inlet Assembly
Side inlet and filter housing shown together.

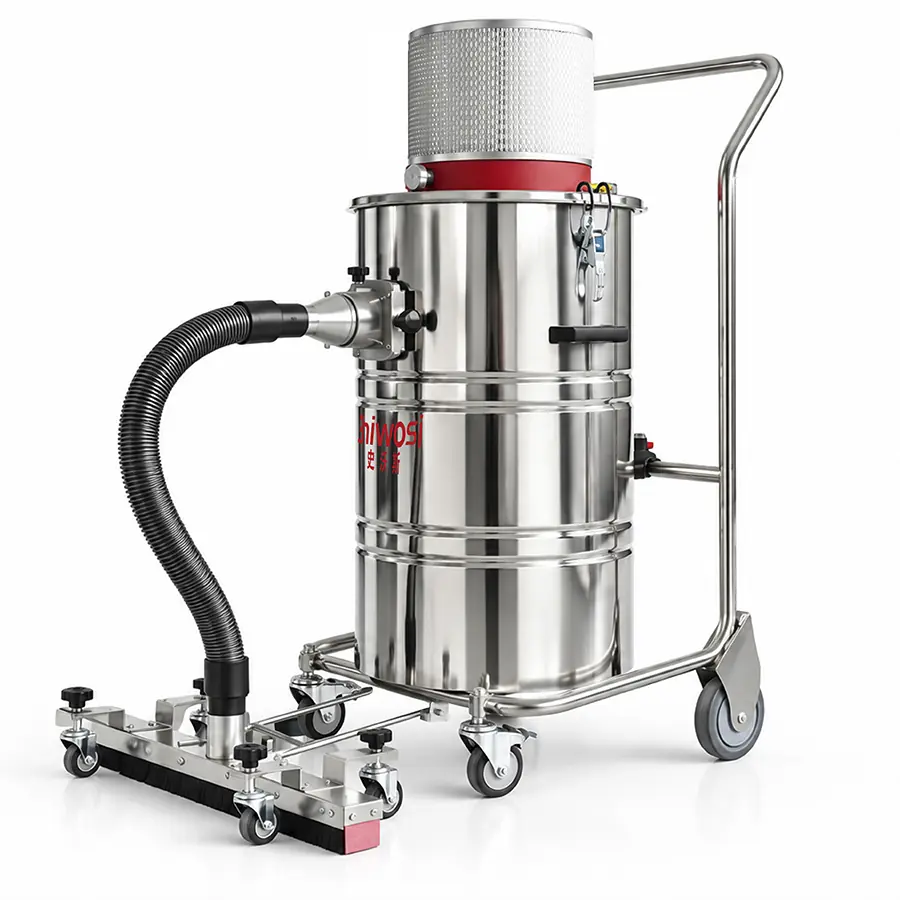

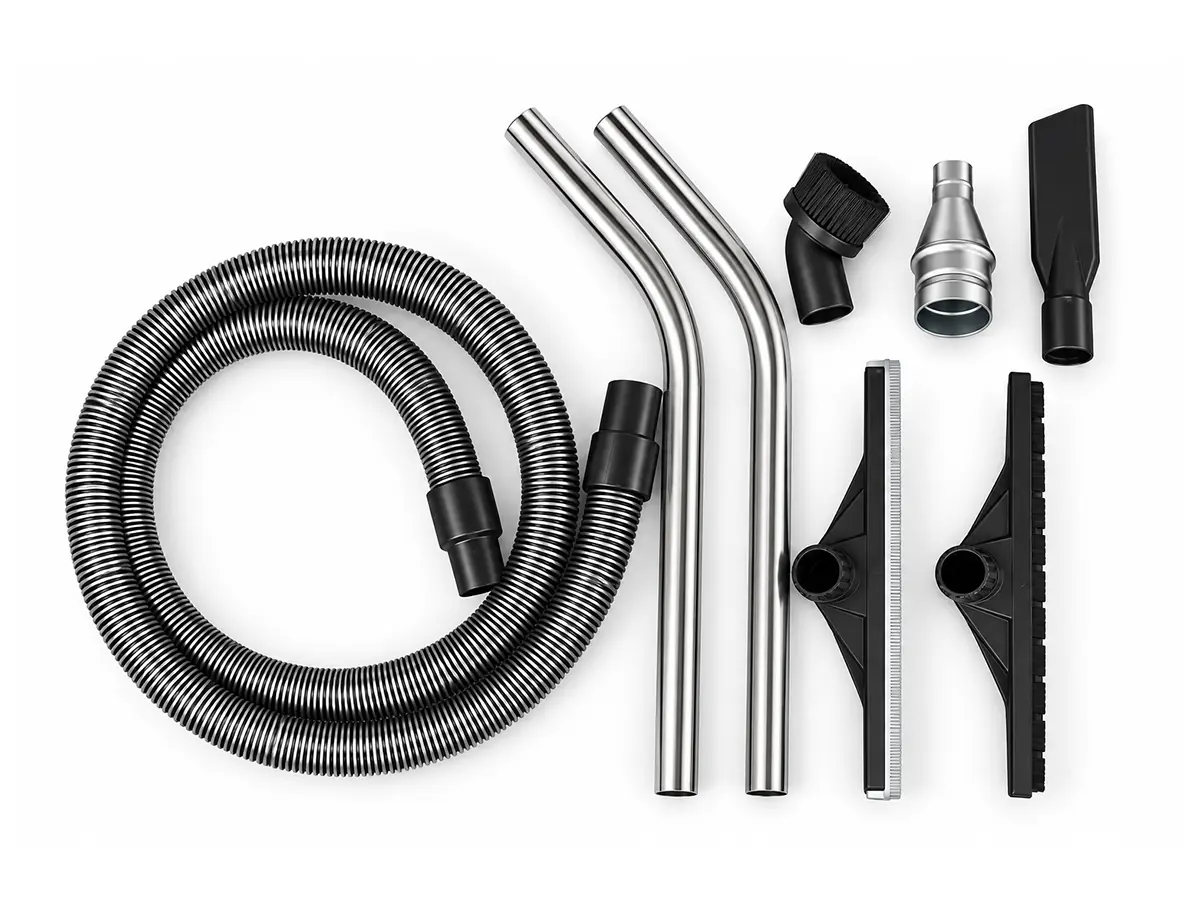

Hose and Suction Attachments
Hose, wand and cleaning tools shown. Confirm the supplied set for the selected Q Series model.
Typical applications
Compressed-air industrial vacuum using the Venturi effect, with no electric motor or moving parts in the vacuum generator.
Configuration before ordering
Confirm the material, dust type, required airflow or vacuum, operating duration, power supply, collection method and attachments for the selected model before ordering.
Download
Documents & compliance
Document scope varies by model and destination. Confirm the required files with export sales before ordering.
Product documentation
Product manual PDF
Download the product manual for this model or model family. The current files include bilingual covers and Chinese operating instructions.
