SHIWOSI X8-TB Continuous-Bag Industrial Vacuum | H-Class Filtration
Continuous-bag industrial vacuum for high-volume dust and fine particles, with H-class filtration and sealed bag disposal.
Get a Factory Quote
Configuration supportMachine selection based on your task
Export documentationConfirm documents by model and market
After-Sales & Spare Parts SupportMaintenance and spare-parts planning
Product information
Product Description
Continuous-bag industrial vacuum for high-volume dust and fine particles, with H-class filtration and sealed bag disposal.
X8-TB Configuration
The continuous bag system is designed for high-volume dust collection. Tie off and replace a filled bag to support dust-controlled disposal.
Technical data
Complete specifications
Values shown are for the available industrial vacuum configurations. Confirm the final model and voltage before ordering.
| Item | X8TB-2 | X8TB-3 | X8TB-4 | X8TB-5 | X8TB-7 | X8TB-9 | X8TB-11 | X8TB-12 | X8TB-15 |
|---|---|---|---|---|---|---|---|---|---|
| Machine Type | Continuous-Bag Industrial Vacuum | ||||||||
| Rated Power | 2.2 kW | 3 kW | 4 kW | 5.5 kW | 7.5 kW | 9.5 kW | 11 kW | 12.5 kW | 5 kW |
| Max Air Flow | 318m3/h | 318m3/h | 420m3/h | 530m3/h | 530m3/h | 1050m3/h | 1050m3/h | 1050m3/h | 1050m3/h |
| Max Pressure | 210 mbar | 270 mbar | 290 mbar | 300 mbar | 320 mbar | 210 mbar | 280 mbar | 290 mbar | 310 mbar |
| Machine Weight | 85 kg | 90 kg | 100 kg | 115 kg | 125 kg | 162 kg | 170 kg | 170 kg | 170 kg |
| Voltage | 380 V/220 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V |
| Dust Cleaning Method | One-click reverse blow cleaning | ||||||||
| Filter Configuration | PTFE coated polyester cartridge | ||||||||
| Filtration Accuracy | 0.3um | ||||||||
| Filtration Area | 25000 cm2 | ||||||||
| Container Capacity | 100 L | ||||||||
| Dimensions | 1350 x 590 x 1390 mm | 1450 x 630 x 1560 mm | |||||||
| Collection System | Long tubular plastic bag | ||||||||
| Filtration | H-class dust filtration | ||||||||
| Duty | Continuous operation | ||||||||
| Suitable Materials | High-volume dust and fine particles | ||||||||
Technical data
Complete specifications
Values apply to the listed configuration. Confirm final specifications before placing an order.
- Model
- X8-TB
- Machine Type
- Continuous-Bag Industrial Vacuum
- Model Options
- X8TB-2 / X8TB-3 / X8TB-4 / X8TB-5 / X8TB-7 / X8TB-9 / X8TB-11 / X8TB-12 / X8TB-15
- Rated Power
- X8TB-2: 2.2 kW; X8TB-3: 3 kW; X8TB-4: 4 kW; X8TB-5: 5.5 kW; X8TB-7: 7.5 kW; X8TB-9: 9.5 kW; X8TB-11: 11 kW; X8TB-12: 12.5 kW; X8TB-15: 15 kW
- Max Air Flow
- X8TB-2: 318m3/h; X8TB-3: 318m3/h; X8TB-4: 420m3/h; X8TB-5: 530m3/h; X8TB-7: 530m3/h; X8TB-9: 1050m3/h; X8TB-11: 1050m3/h; X8TB-12: 1050m3/h; X8TB-15: 1050m3/h
- Max Pressure
- X8TB-2: 210 mbar; X8TB-3: 270 mbar; X8TB-4: 290 mbar; X8TB-5: 300 mbar; X8TB-7: 320 mbar; X8TB-9: 210 mbar; X8TB-11: 280 mbar; X8TB-12: 290 mbar; X8TB-15: 310 mbar
- Machine Weight
- X8TB-2: 85 kg; X8TB-3: 90 kg; X8TB-4: 100 kg; X8TB-5: 115 kg; X8TB-7: 125 kg; X8TB-9: 162 kg; X8TB-11: 170 kg; X8TB-12: 170 kg; X8TB-15: 170 kg
- Voltage
- X8TB-2: 380 V/220 V; X8TB-3: 380 V; X8TB-4: 380 V; X8TB-5: 380 V; X8TB-7: 380 V; X8TB-9: 380 V; X8TB-11: 380 V; X8TB-12: 380 V; X8TB-15: 380 V
- Dust Cleaning Method
- X8TB-2: One-click reverse blow cleaning
- Filter Configuration
- X8TB-2: PTFE coated polyester cartridge
- Filtration Accuracy
- X8TB-2: 0.3um
- Filtration Area
- X8TB-2: 25000 cm2
- Container Capacity
- X8TB-2: 100 L
- Dimensions
- X8TB-2: 1350 x 590 x 1390 mm; X8TB-3: 1450 x 630 x 1560 mm
- Collection System
- Long tubular plastic bag
- Filtration
- H-class dust filtration
- Duty
- Continuous operation
- Suitable Materials
- High-volume dust and fine particles
Product Highlights

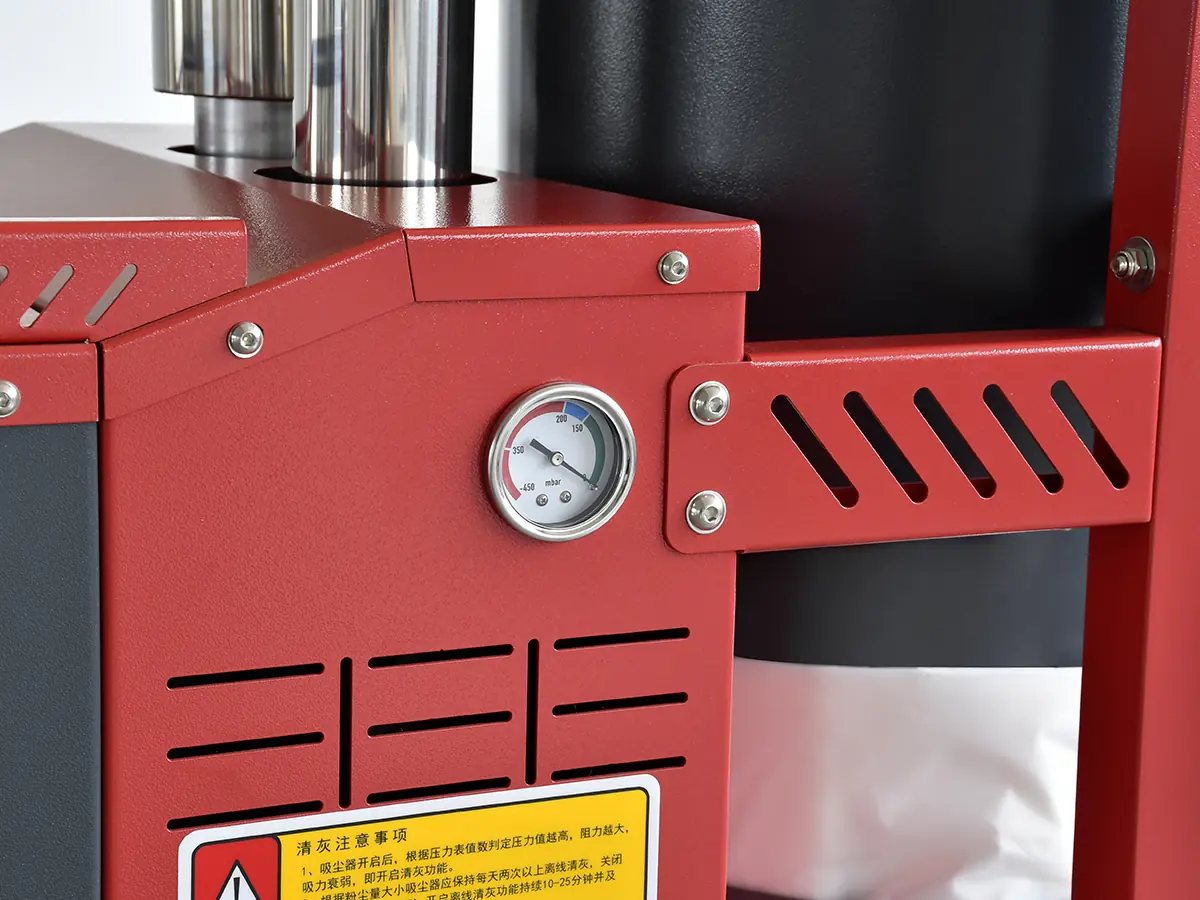

Vacuum Gauge and Housing
Gauge and warning label shown on the red machine housing.

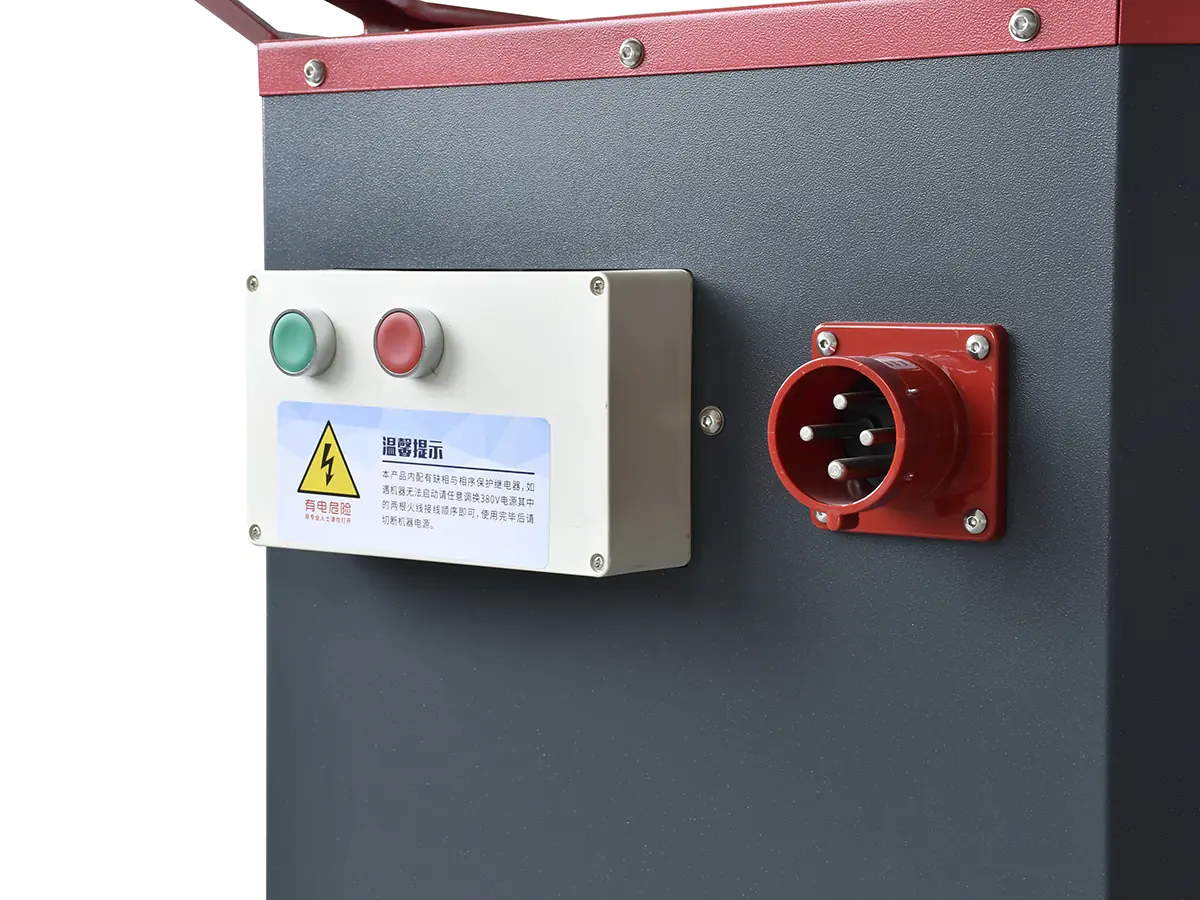

Electrical Control Panel
Control switches and power connector are grouped on the rear panel.

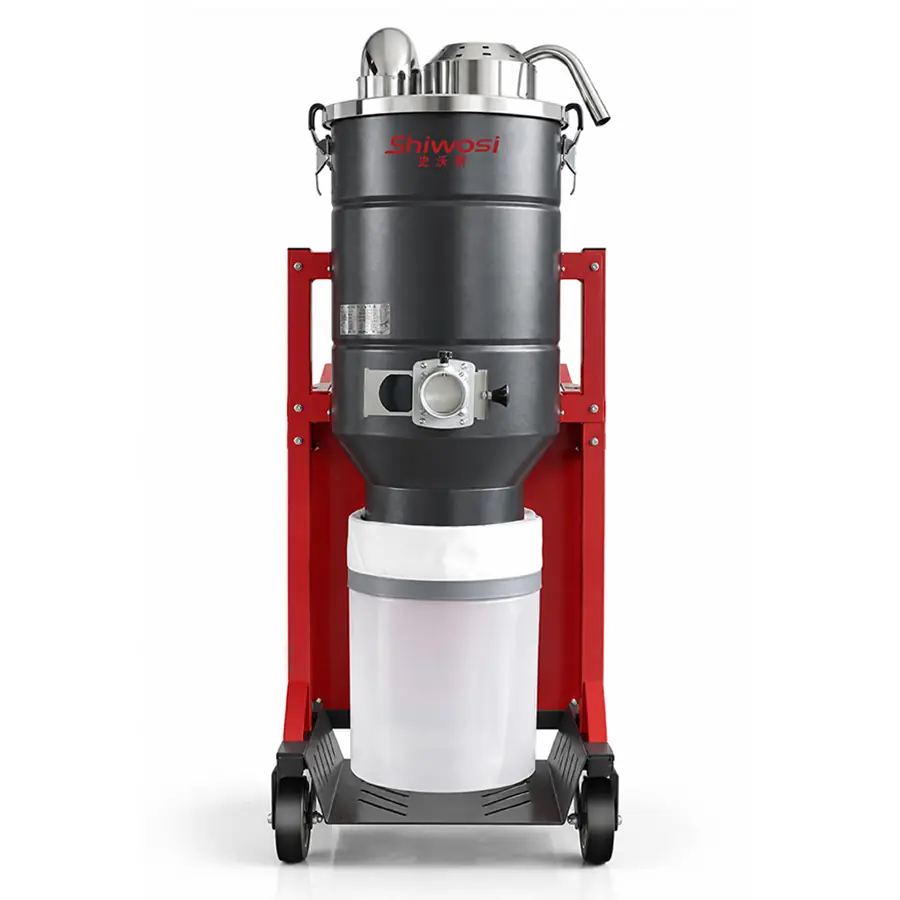

Collection Bag Assembly
The X8-TB uses a tubular collection bag for continuous dust collection.

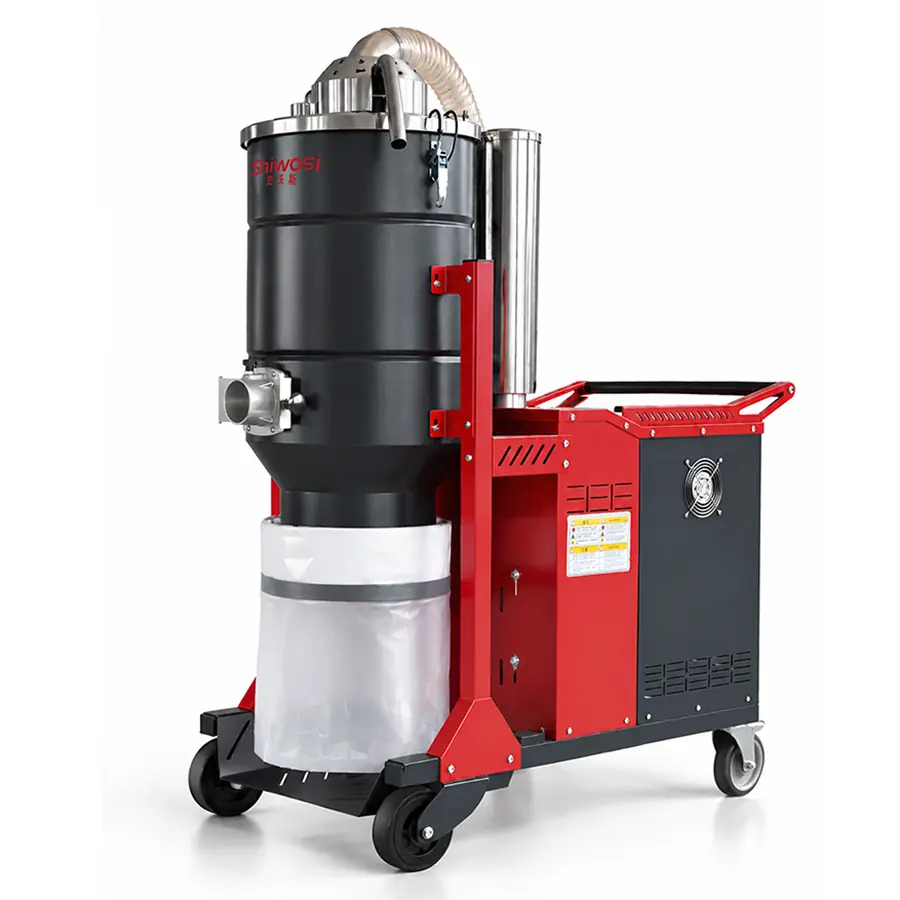

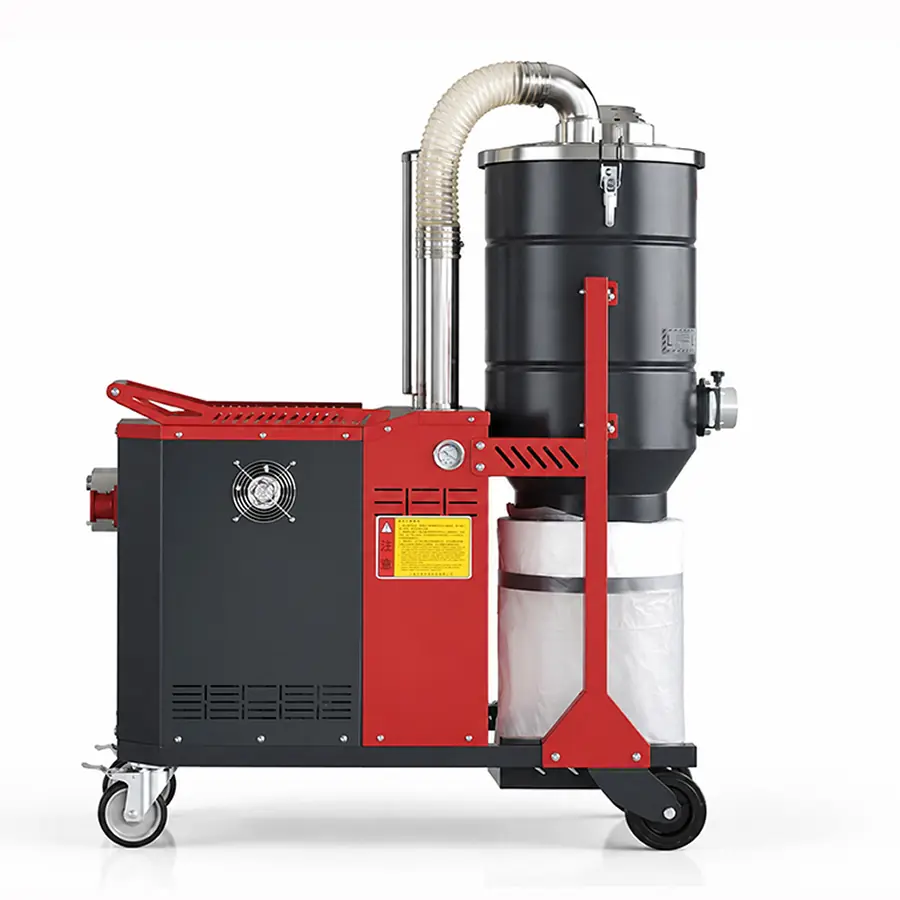

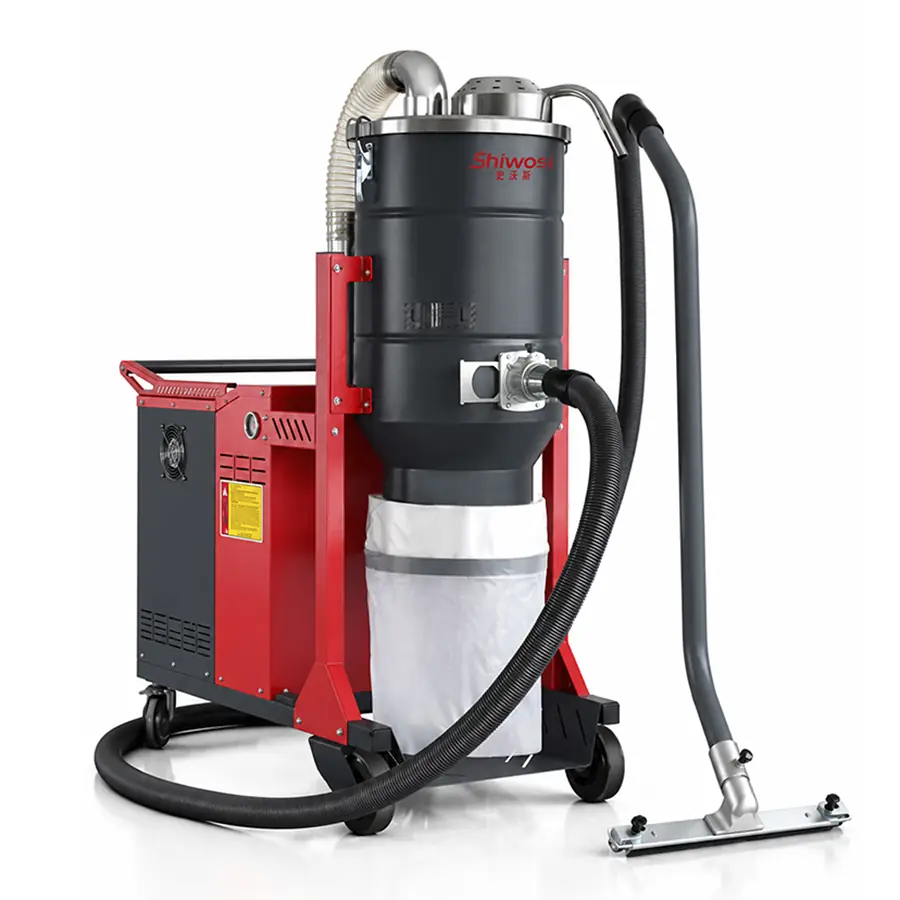

X8-TB Machine View
Overall view of the X8-TB vacuum and its collection assembly.

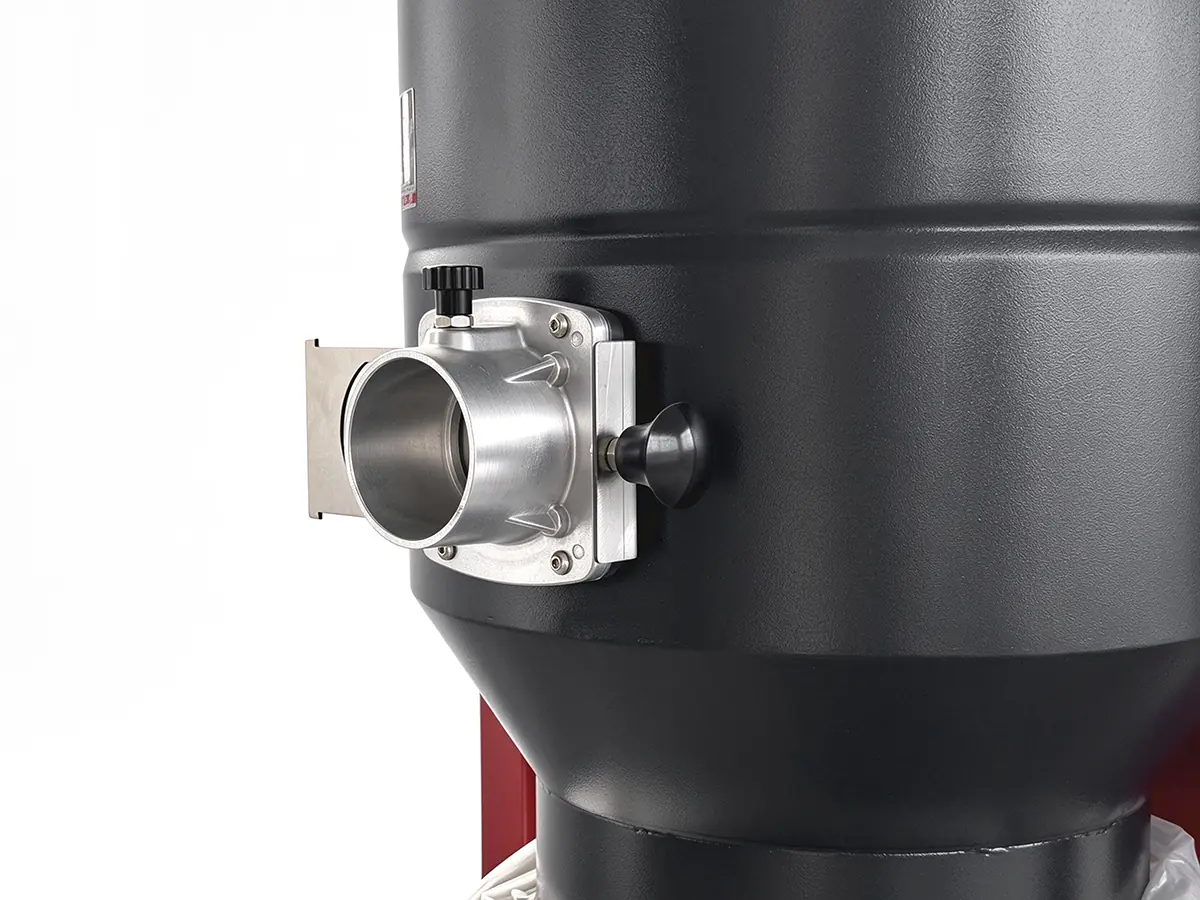

Collection Inlet
Side inlet connection on the collection system.

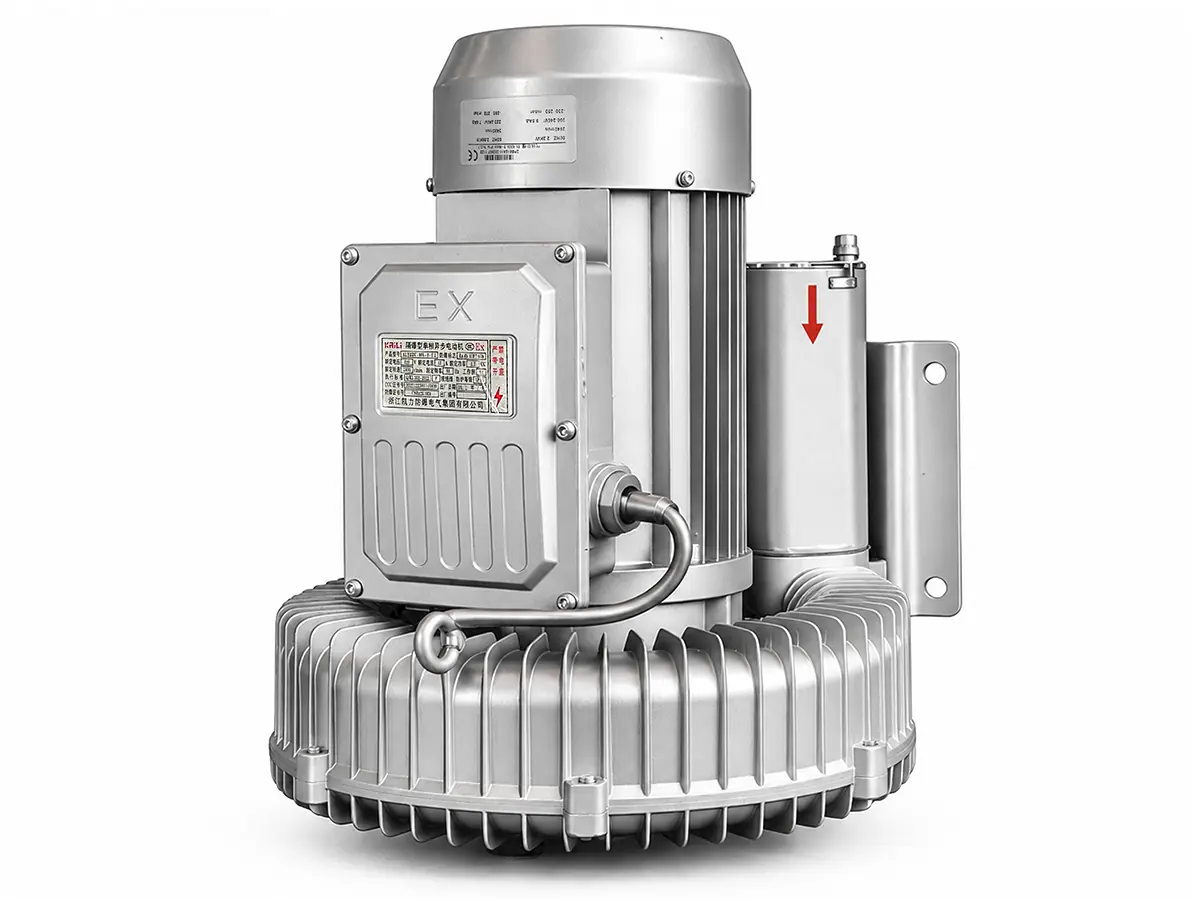

Vacuum Motor Assembly
Motor assembly shown on the rear of the machine.

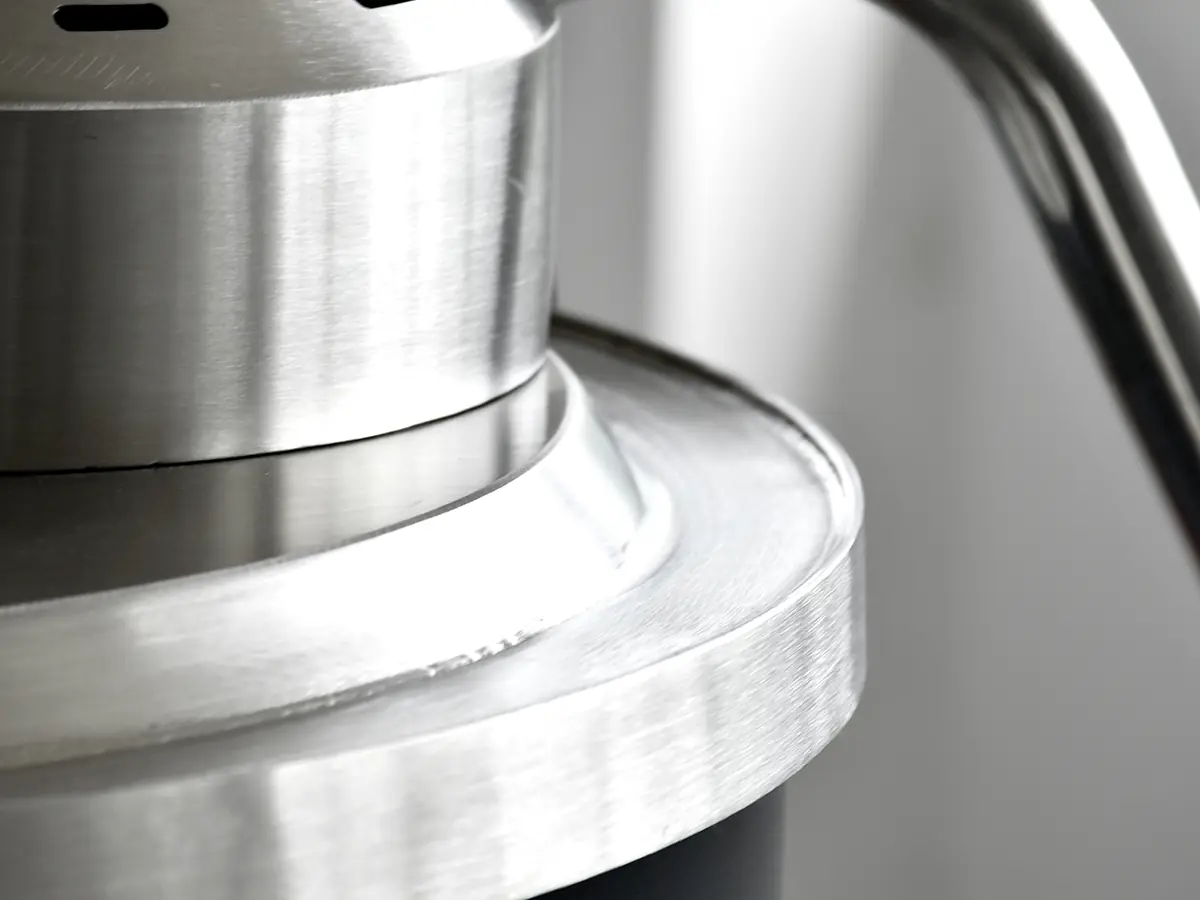

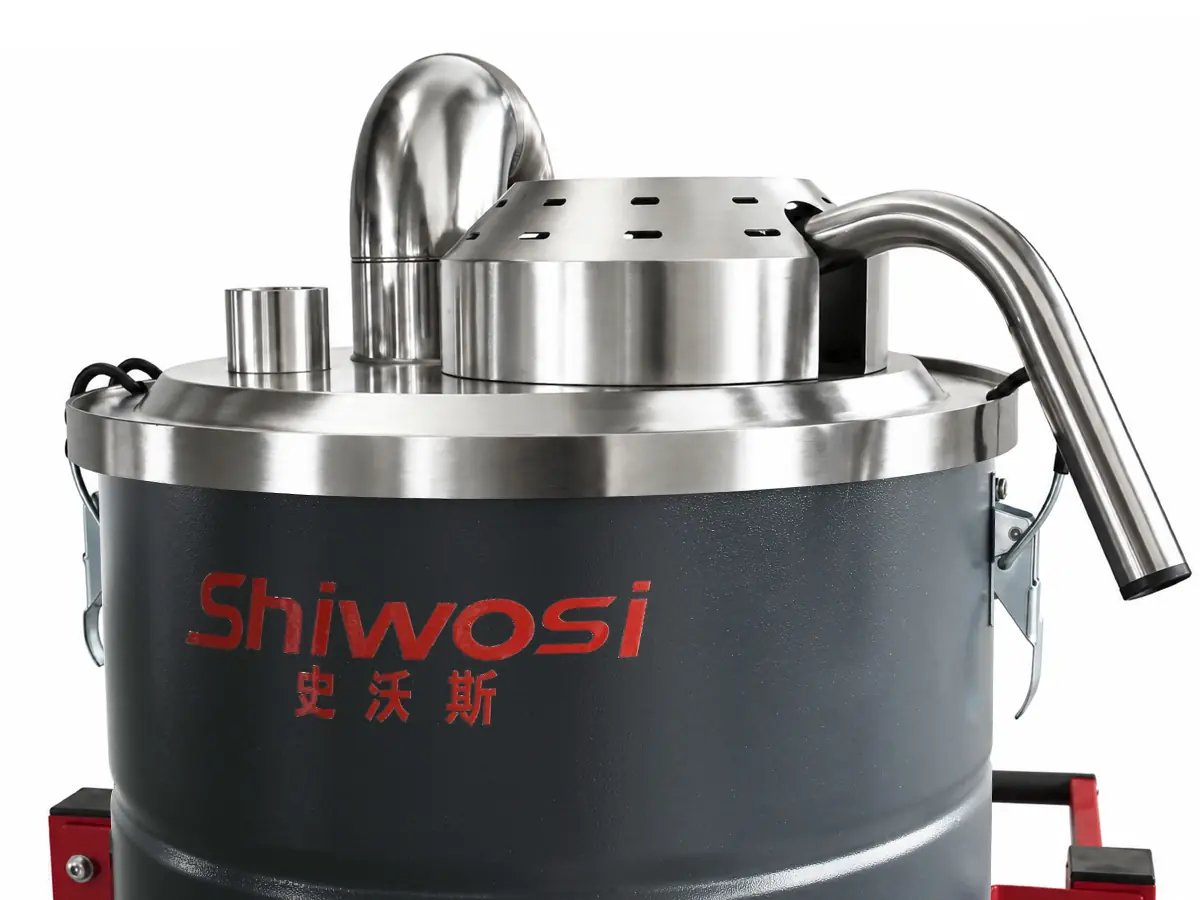

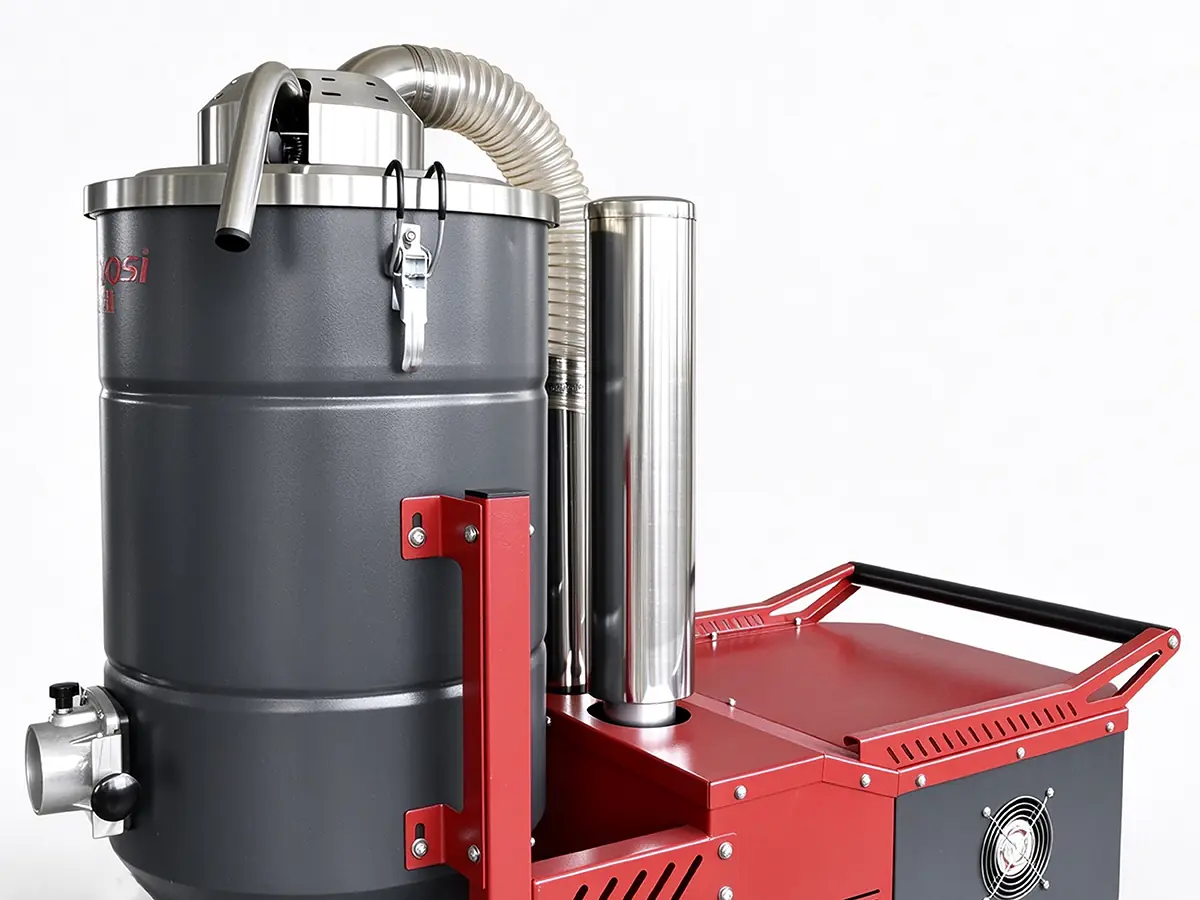

Tank Joint and Lid Detail
Close-up of the collection vessel joint and upper assembly.

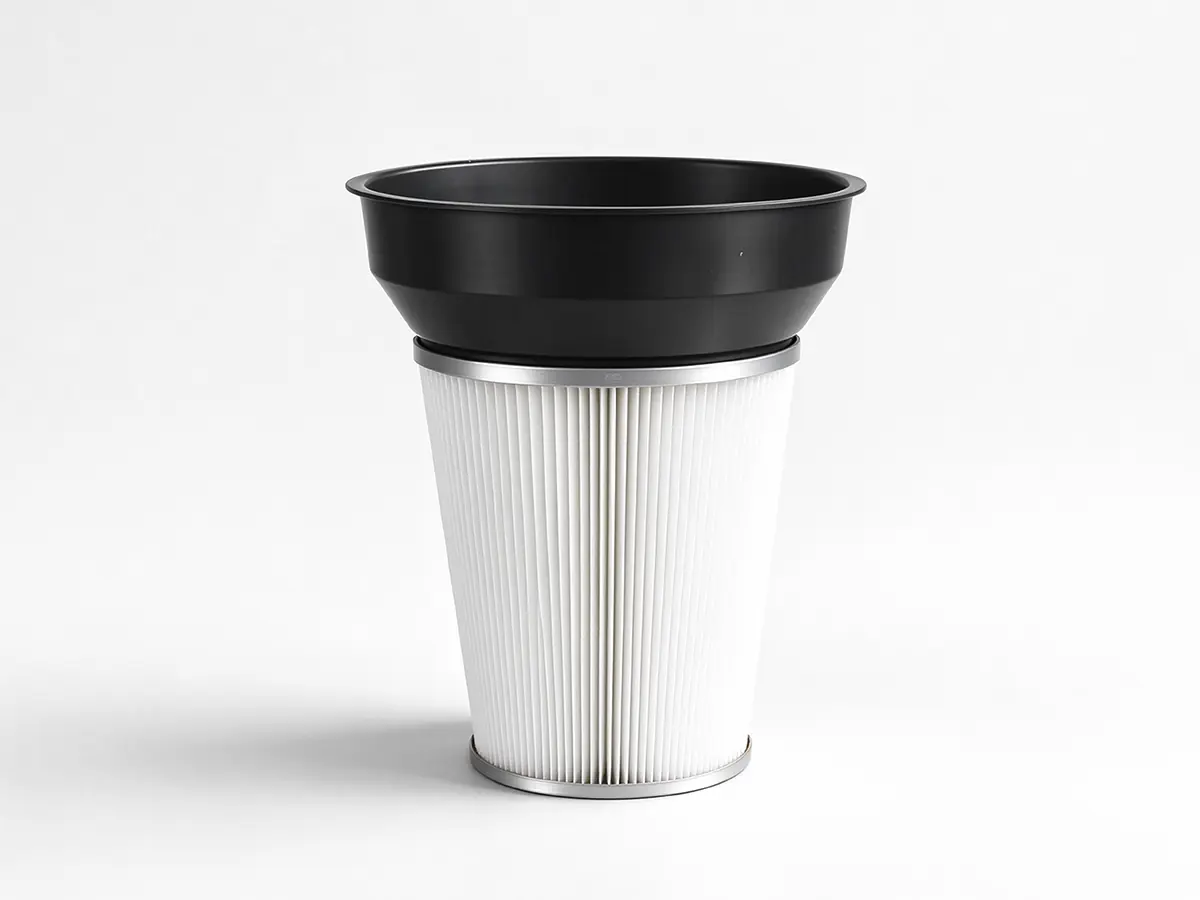

Filter Cartridge
The X8-TB specification lists a PTFE-coated polyester cartridge and 0.3 μm filtration accuracy.

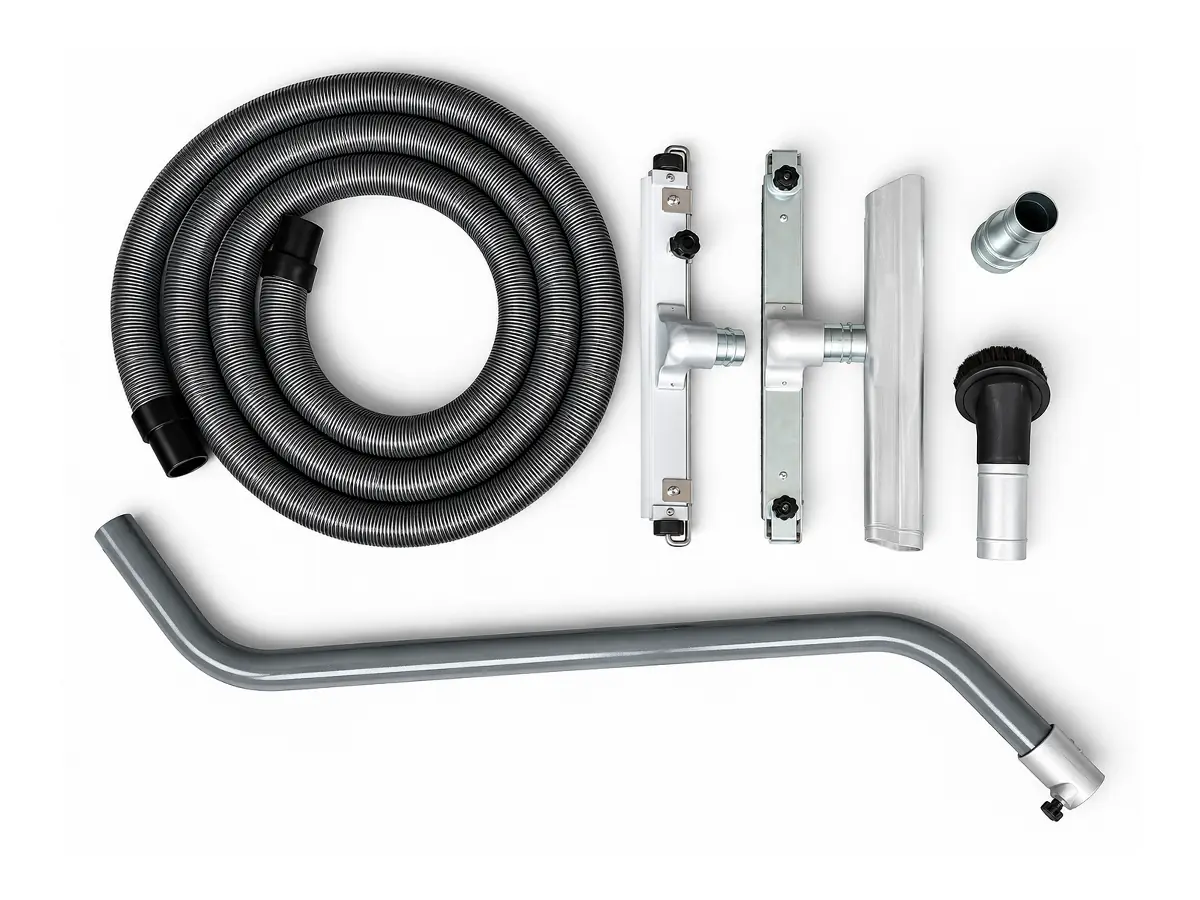

50 mm Suction Accessories
Hose and attachments for different pickup tasks. The front squeegee is optional.
Typical applications
Continuous-bag industrial vacuum for high-volume dust and fine particles, with H-class filtration and sealed bag disposal.
Configuration before ordering
Confirm the material, dust type, required airflow or vacuum, operating duration, power supply, collection method and attachments for the selected model before ordering.
Download
Documents & compliance
Document scope varies by model and destination. Confirm the required files with export sales before ordering.
Product documentation
Product manual PDF
Download the product manual for this model or model family. The current files include bilingual covers and Chinese operating instructions.
