SHIWOSI EX7 Explosion-Proof Industrial Vacuum | 100 L Tank
Stainless-steel industrial vacuum developed for hazardous dust and controlled-risk work areas, with a 100 L collection tank.
Get a Factory Quote
Configuration supportMachine selection based on your task
Export documentationConfirm documents by model and market
After-Sales & Spare Parts SupportMaintenance and spare-parts planning
Product information
Product Description
Stainless-steel industrial vacuum developed for hazardous dust and controlled-risk work areas, with a 100 L collection tank.
EX7 Configuration
The EX7 combines a stainless-steel collection vessel with an enclosed electrical control box for the specified hazardous-area configuration.
Technical data
Complete specifications
Values shown are for the available industrial vacuum configurations. Confirm the final model and voltage before ordering.
| Item | EX-7.2 | EX-7.3 | EX-7.4 | EX-7.5 | EX-7.7 | EX-7.9 | EX-7.11 | EX-7.12 | EX-7.15 |
|---|---|---|---|---|---|---|---|---|---|
| Machine Type | Explosion-Proof Industrial Vacuum | ||||||||
| Rated Power | 2.2 kW | 3 kW | 4 kW | 5.5 kW | 7.5 kW | 9.5 kW | 11 kW | 12.5 kW | 15 kW |
| Max Air Flow | 318m3/h | 318m3/h | 420m3/h | 530m3/h | 530m3/h | 1050m3/h | 1050m3/h | 1050m3/h | 1050m3/h |
| Max Pressure | 210 mbar | 270 mbar | 290 mbar | 300 mbar | 320 mbar | 210 mbar | 280 mbar | 290 mbar | 320 mbar |
| Machine Weight | 85 kg | 90 kg | 100 kg | 115 kg | 125 kg | 162 kg | 170 kg | 170 kg | 170 kg |
| Voltage | 220 V/380 V | 380 V | |||||||
| Dust Cleaning Method | Manual reverse blowing | ||||||||
| Filter Configuration | PTEF coated polyester cartridge | ||||||||
| Filtration Accuracy | 0.3um | ||||||||
| Filtration Area | 25000 cm2 | ||||||||
| Container Capacity | 100 L | ||||||||
| Dimensions | 540 x 1120 x 1500 mm | 1450 x 630 x 1560 mm | |||||||
| Body Material | Stainless steel | ||||||||
| Power Options | Multiple voltage and power configurations | ||||||||
| Application | Hazardous dust and controlled-risk areas | ||||||||
| Certification | Confirm exact model and destination scope | ||||||||
Technical data
Complete specifications
Values apply to the listed configuration. Confirm final specifications before placing an order.
- Model
- EX7
- Machine Type
- Explosion-Proof Industrial Vacuum
- Model Options
- EX-7.2 / EX-7.3 / EX-7.4 / EX-7.5 / EX-7.7 / EX-7.9 / EX-7.11 / EX-7.12 / EX-7.15
- Rated Power
- EX-7.2: 2.2 kW; EX-7.3: 3 kW; EX-7.4: 4 kW; EX-7.5: 5.5 kW; EX-7.7: 7.5 kW; EX-7.9: 9.5 kW; EX-7.11: 11 kW; EX-7.12: 12.5 kW; EX-7.15: 15 kW
- Max Air Flow
- EX-7.2: 318m3/h; EX-7.3: 318m3/h; EX-7.4: 420m3/h; EX-7.5: 530m3/h; EX-7.7: 530m3/h; EX-7.9: 1050m3/h; EX-7.11: 1050m3/h; EX-7.12: 1050m3/h; EX-7.15: 1050m3/h
- Max Pressure
- EX-7.2: 210 mbar; EX-7.3: 270 mbar; EX-7.4: 290 mbar; EX-7.5: 300 mbar; EX-7.7: 320 mbar; EX-7.9: 210 mbar; EX-7.11: 280 mbar; EX-7.12: 290 mbar; EX-7.15: 320 mbar
- Machine Weight
- EX-7.2: 85 kg; EX-7.3: 90 kg; EX-7.4: 100 kg; EX-7.5: 115 kg; EX-7.7: 125 kg; EX-7.9: 162 kg; EX-7.11: 170 kg; EX-7.12: 170 kg; EX-7.15: 170 kg
- Voltage
- EX-7.2: 220 V/380 V; EX-7.3: 380 V
- Dust Cleaning Method
- EX-7.2: Manual reverse blowing
- Filter Configuration
- EX-7.2: PTEF coated polyester cartridge
- Filtration Accuracy
- EX-7.2: 0.3um
- Filtration Area
- EX-7.2: 25000 cm2
- Container Capacity
- EX-7.2: 100 L
- Dimensions
- EX-7.2: 540 x 1120 x 1500 mm; EX-7.3: 1450 x 630 x 1560 mm
- Body Material
- Stainless steel
- Power Options
- Multiple voltage and power configurations
- Application
- Hazardous dust and controlled-risk areas
- Certification
- Confirm exact model and destination scope
Product Highlights

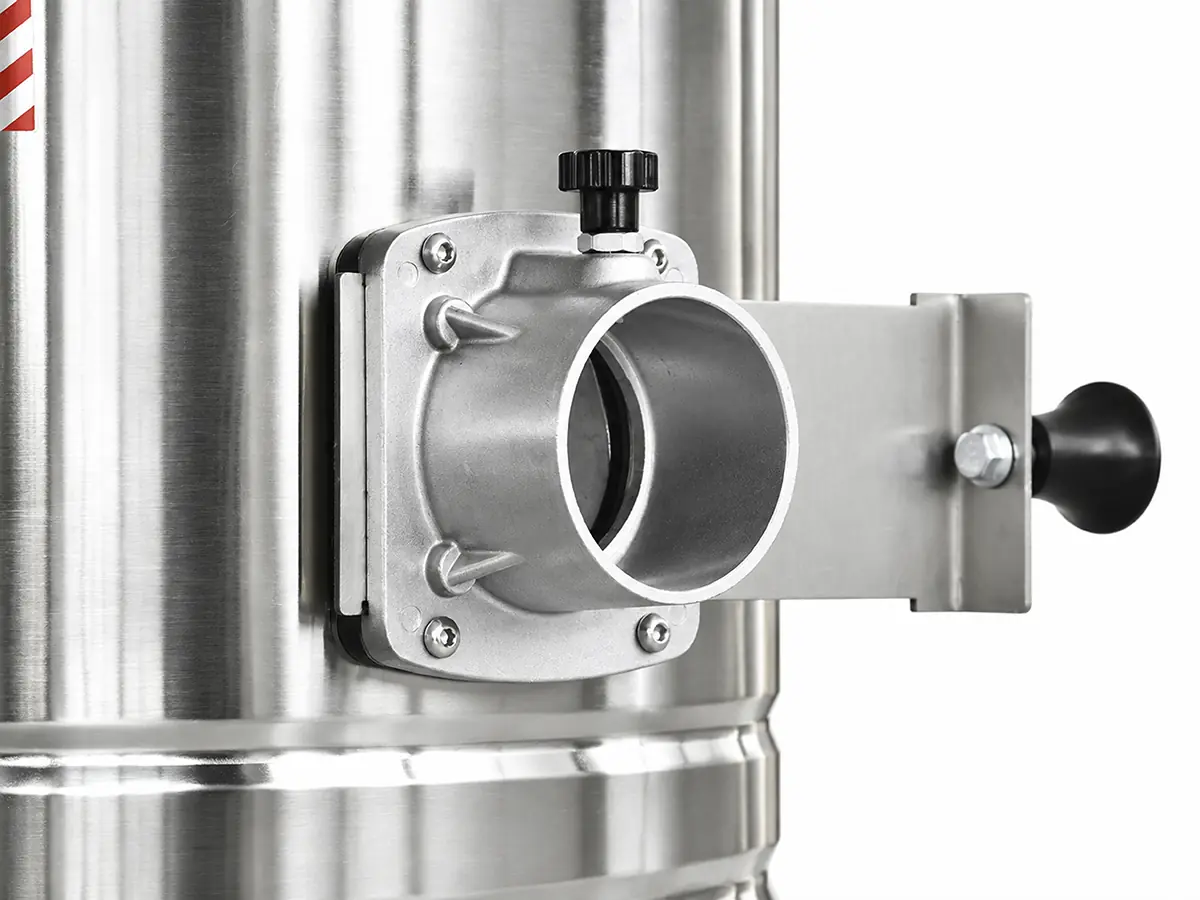

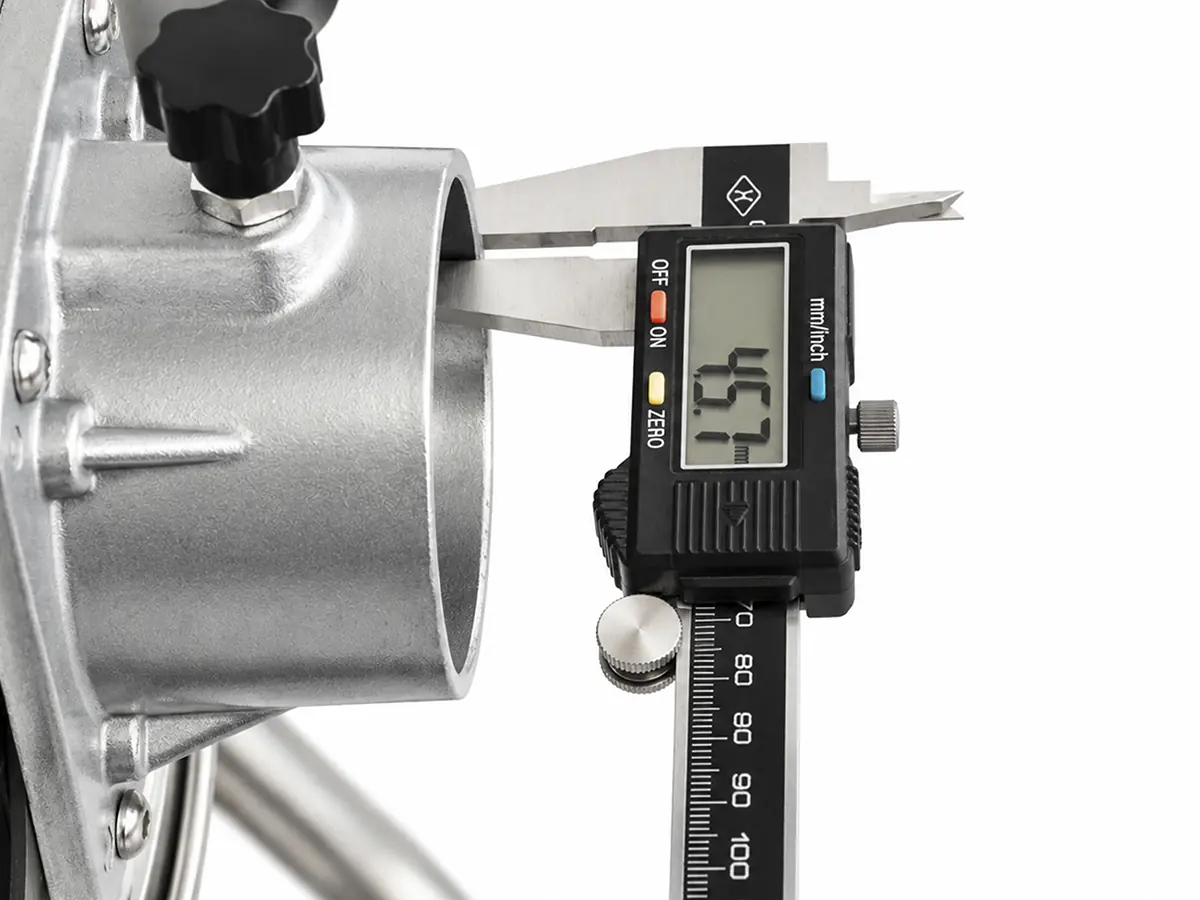

50 mm Cast Aluminum Inlet
Fits 50 mm suction kits and captures most solid particles without clogging.

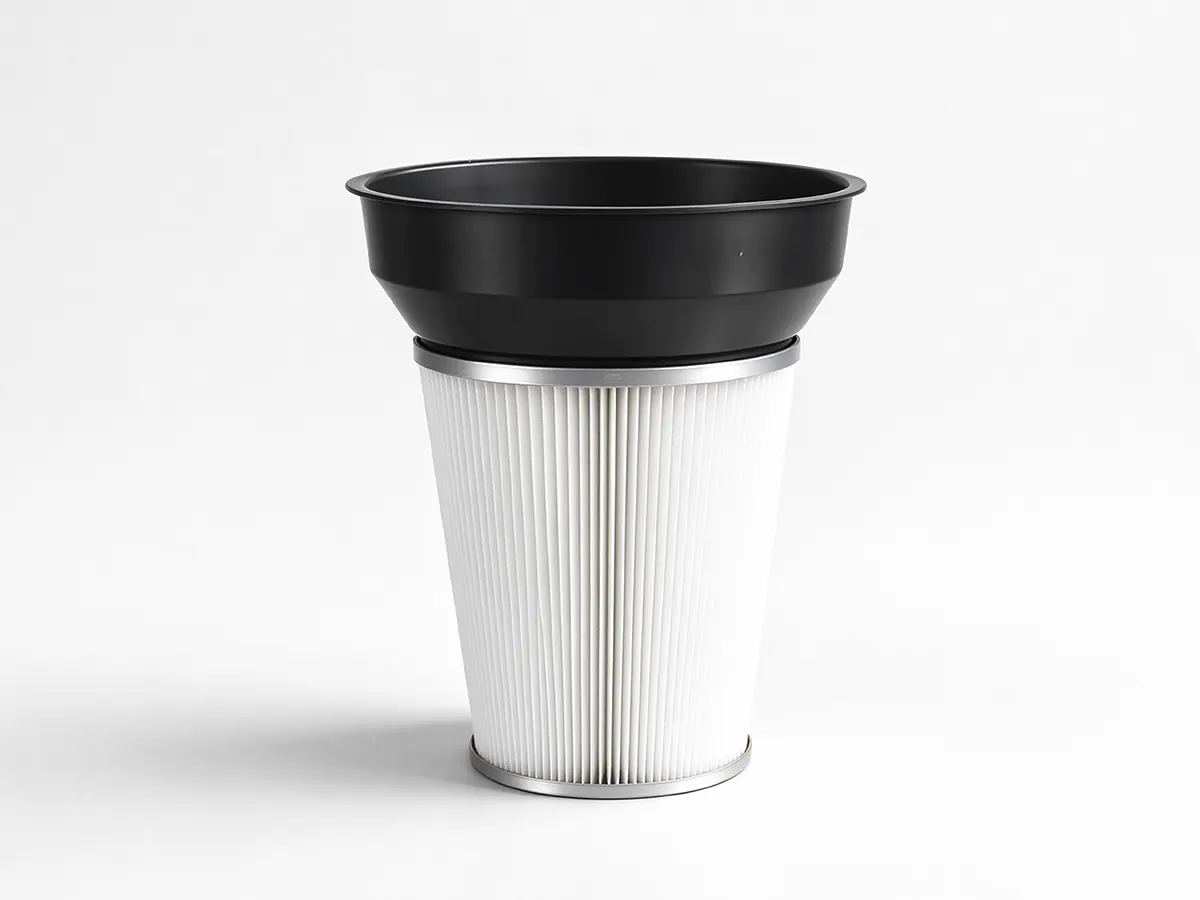

Filter Cartridge
PTFE-coated polyester filter cartridge with 0.3 μm filtration accuracy.

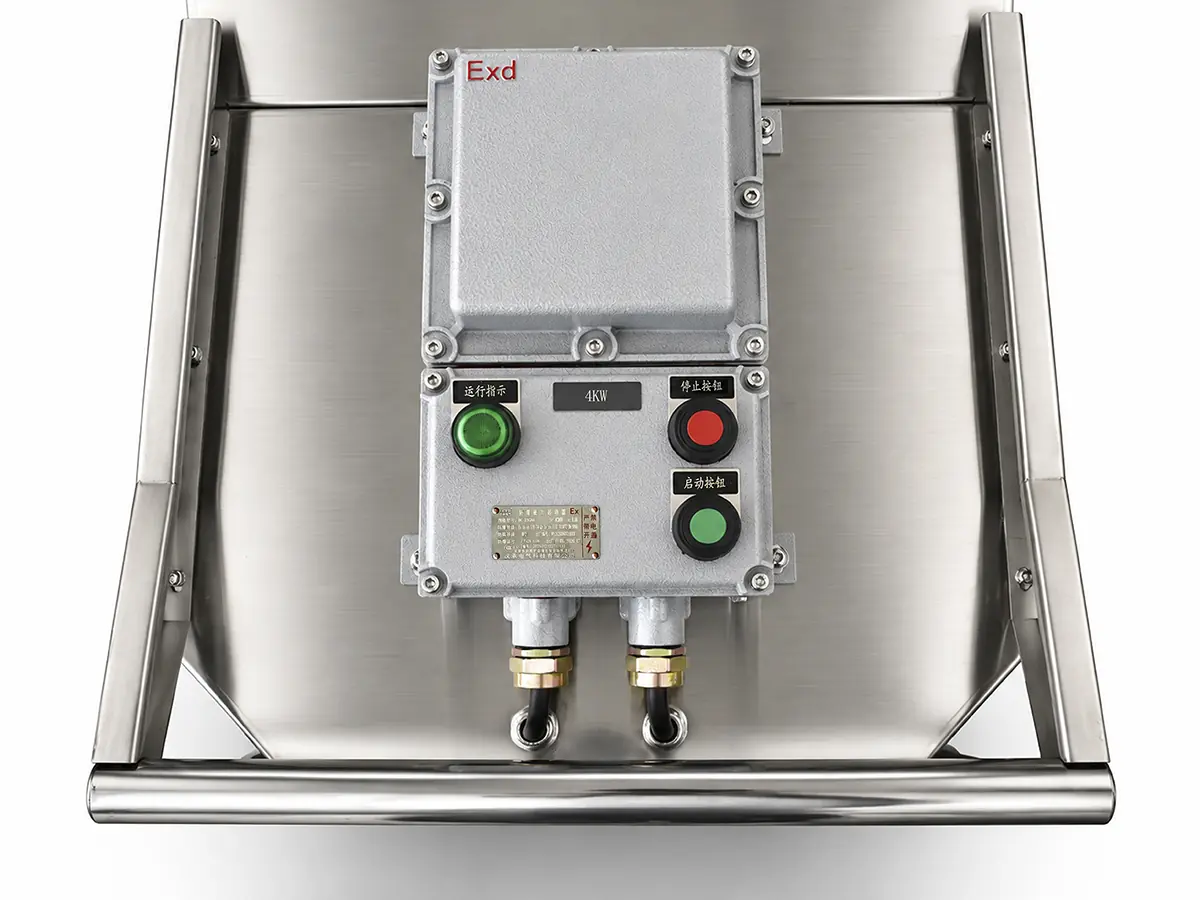

Enclosed Control Box
Electrical control box shown within the EX7 protective enclosure.

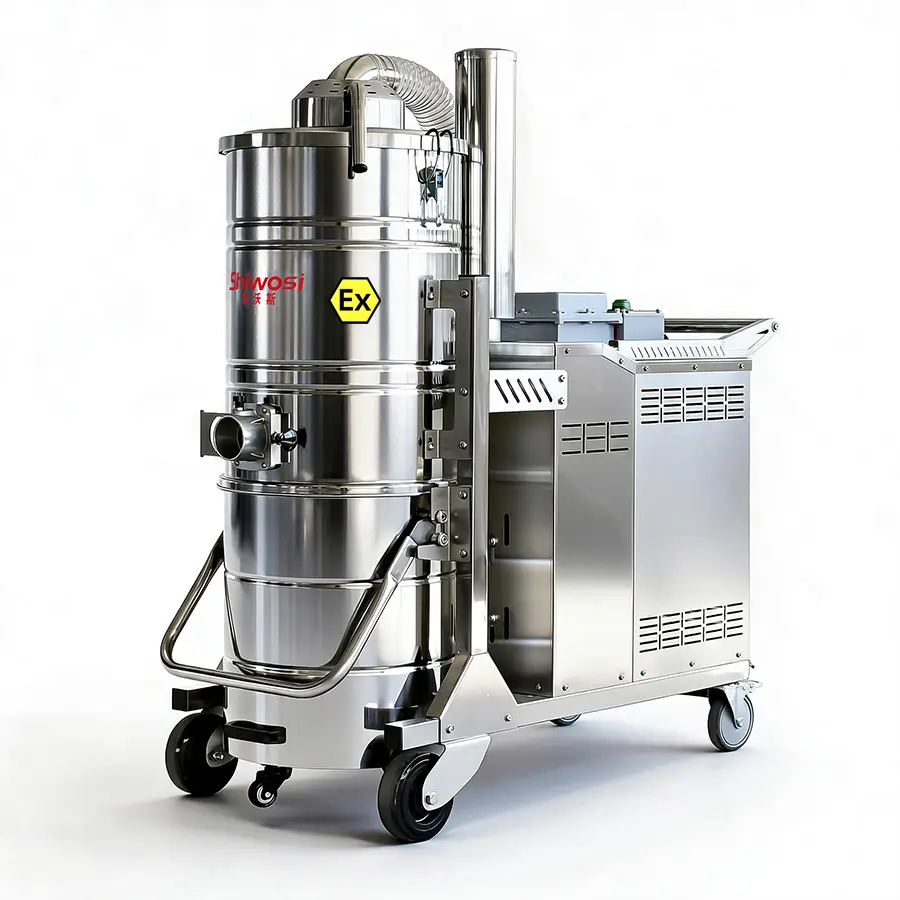

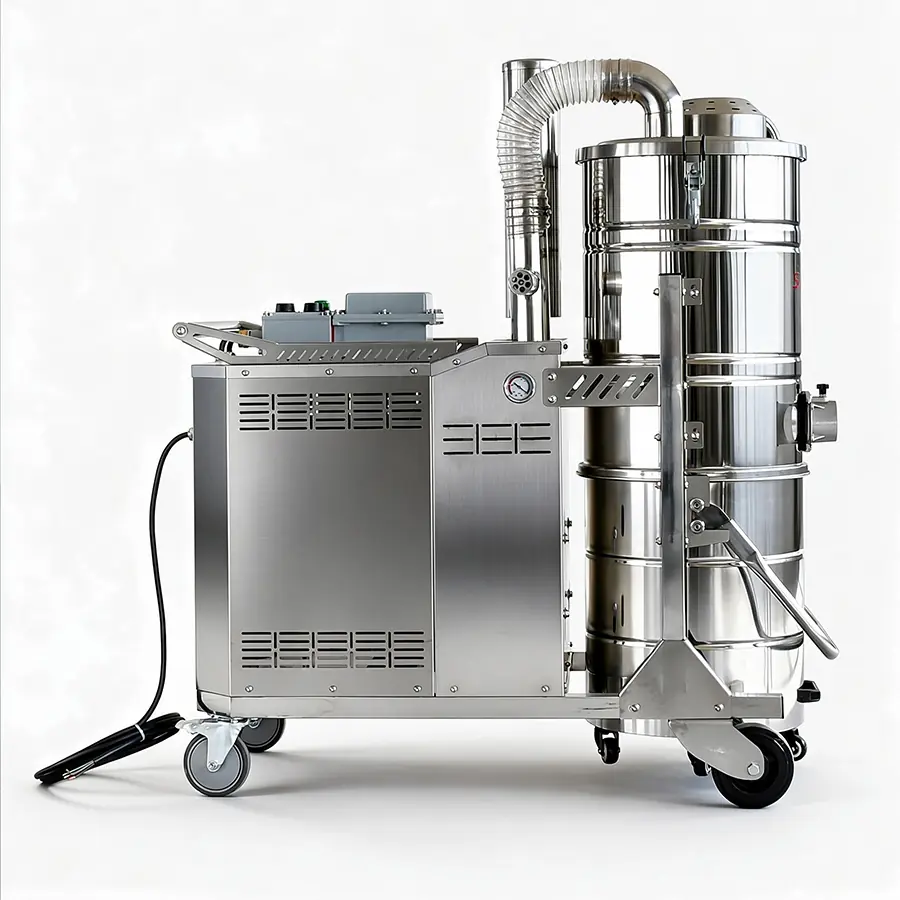

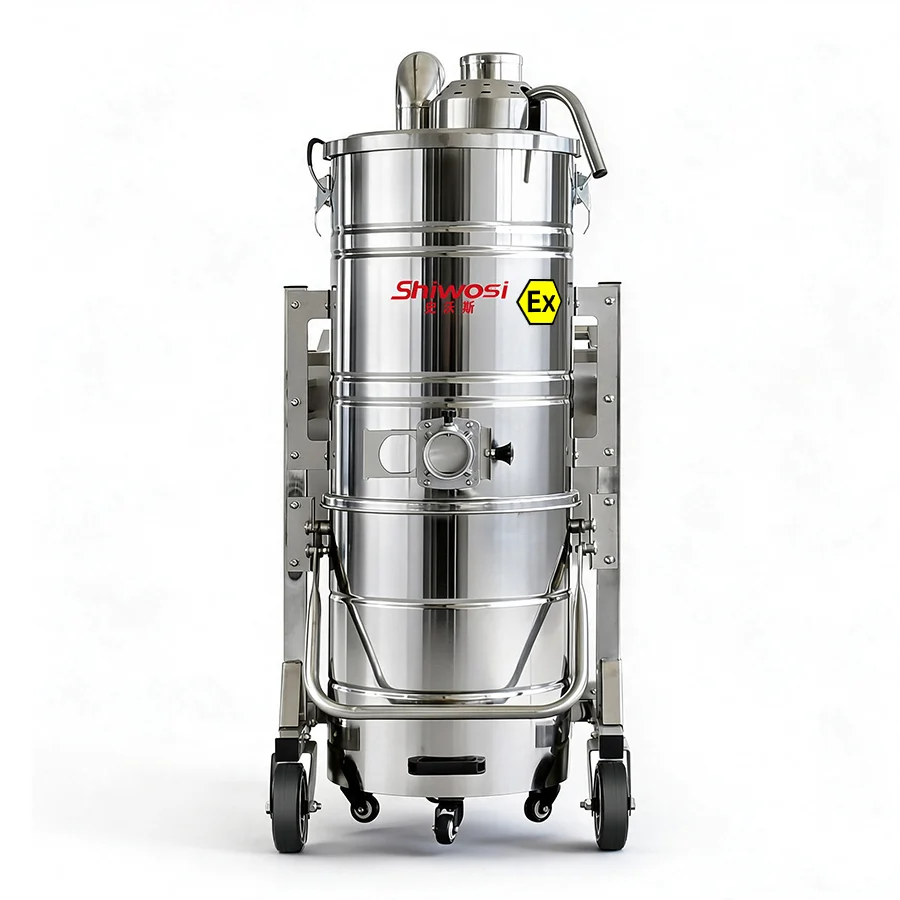

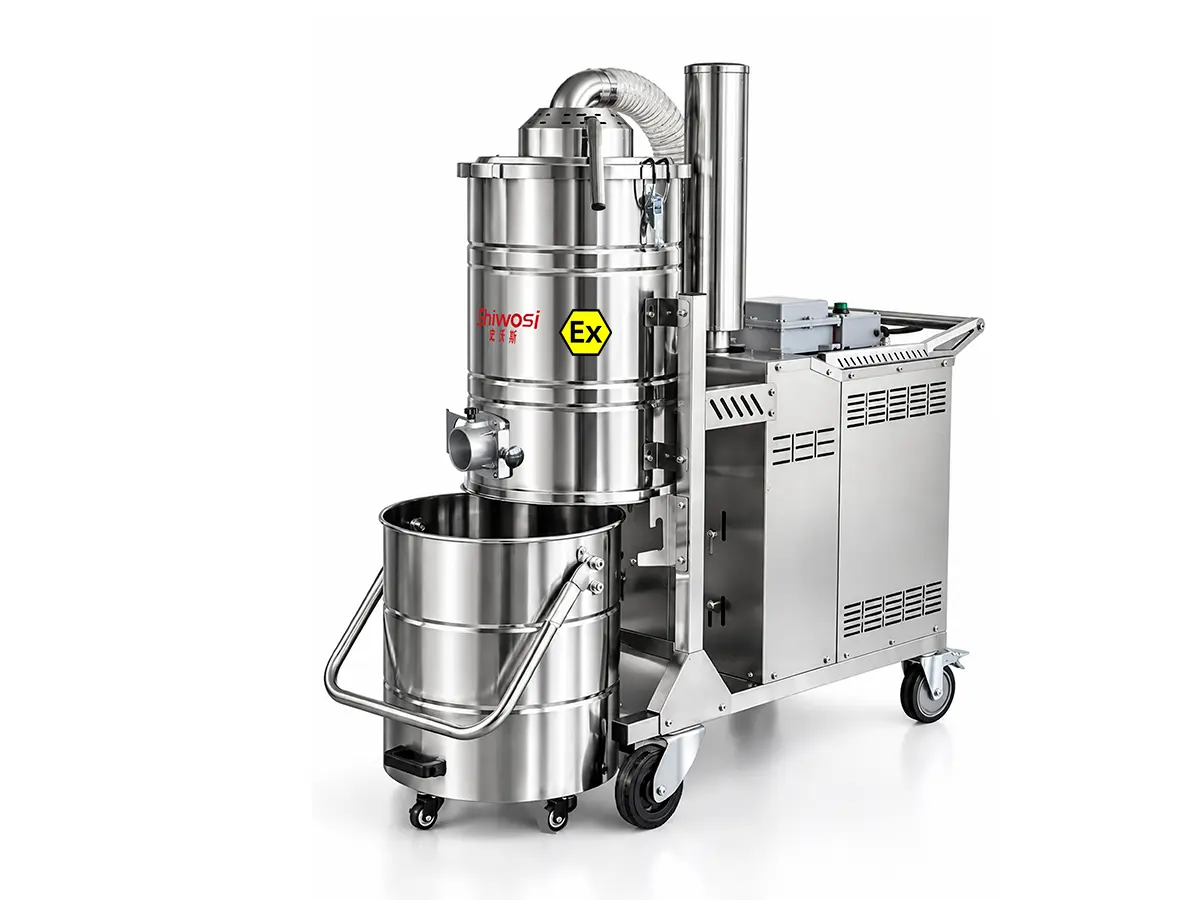

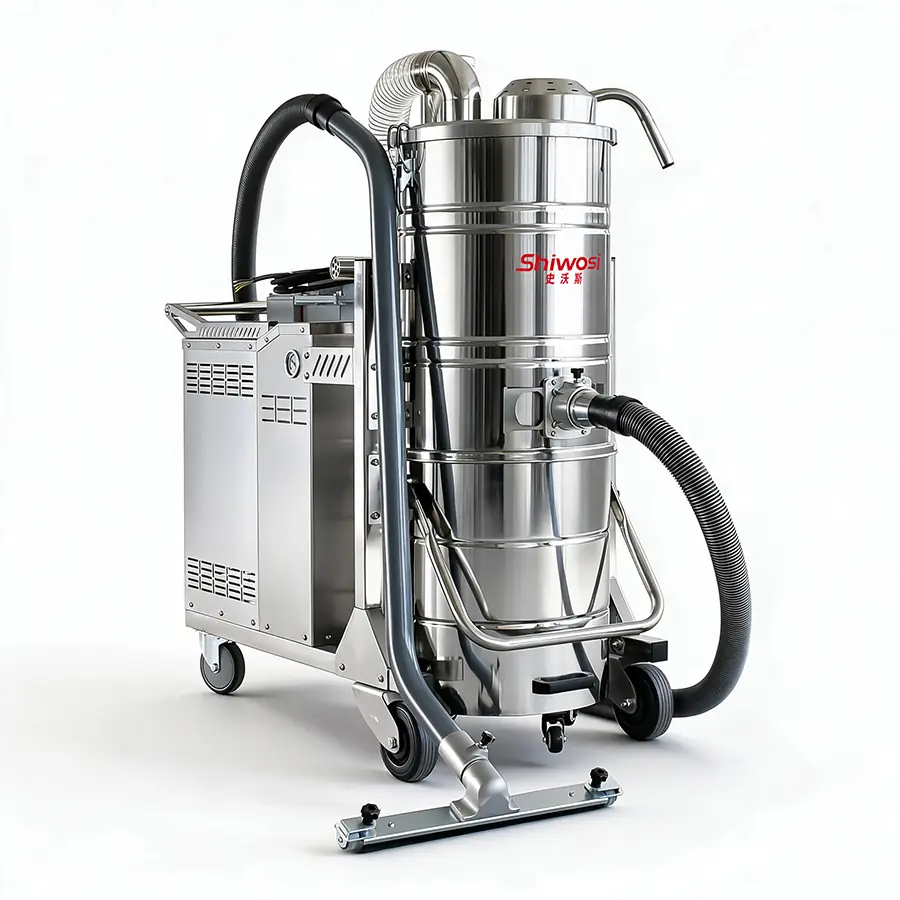

EX7 Machine View
Overall view of the stainless-steel EX7 vacuum and collection vessel.

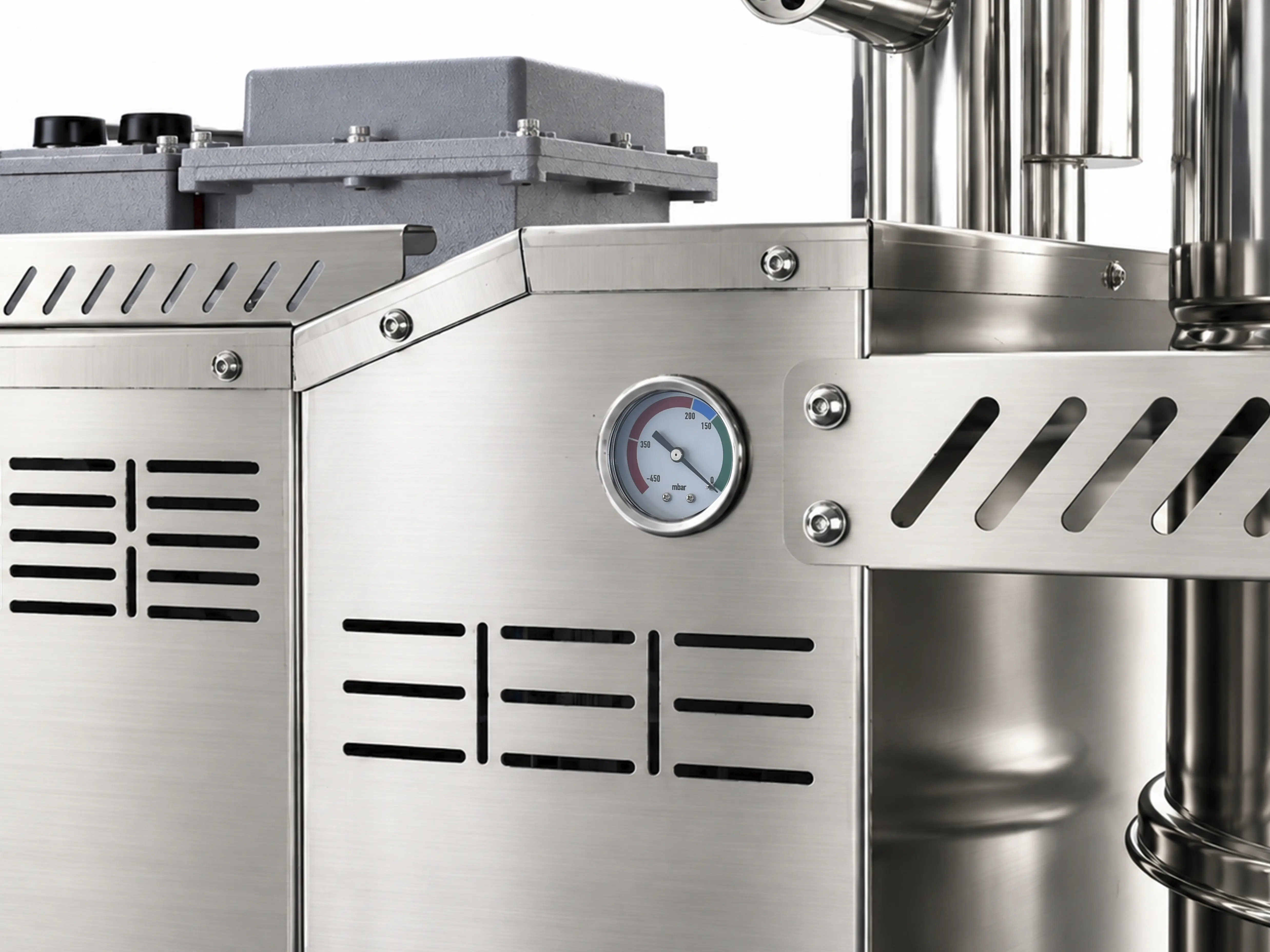

Vacuum Gauge
Gauge mounted on the machine housing.

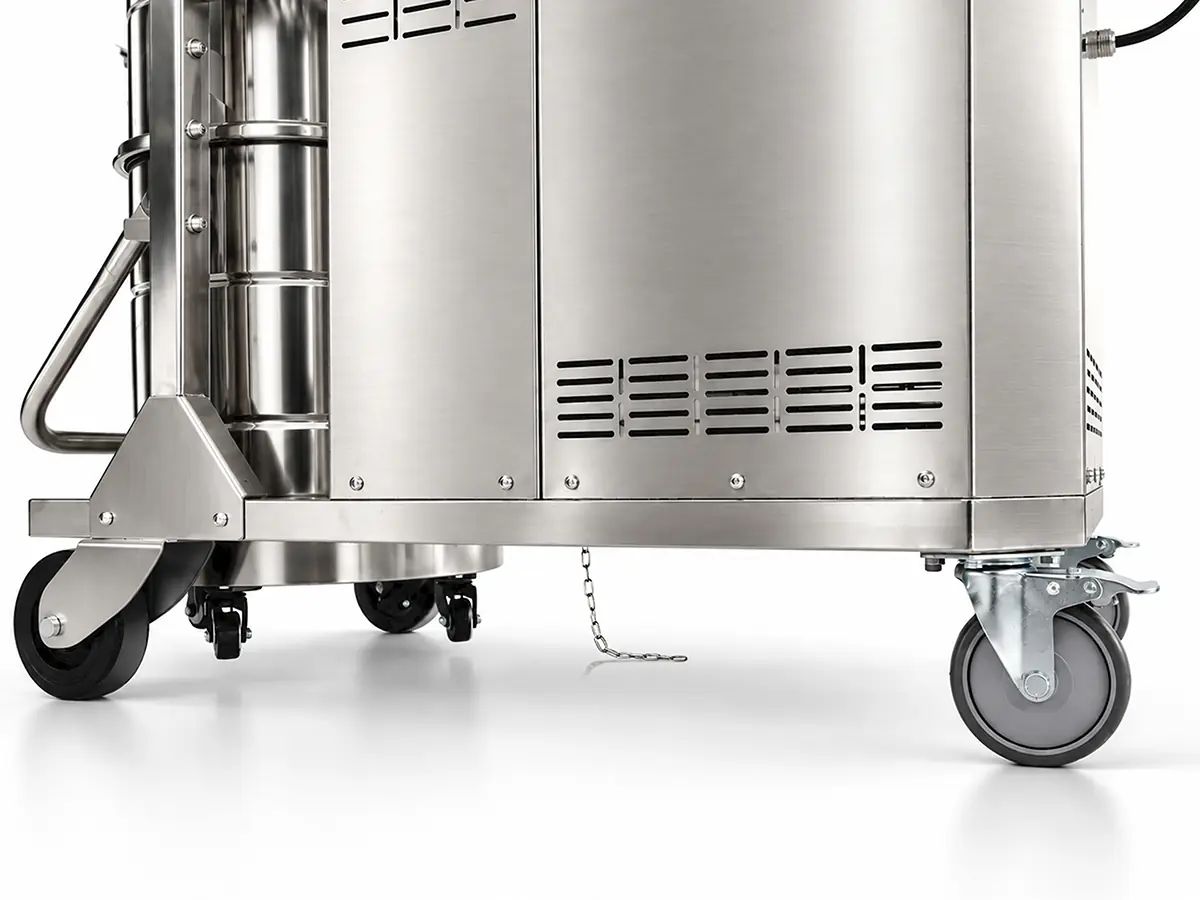

Caster Wheels with Stops
Heavy-duty wheels with wheel stops, as specified for the EX7.

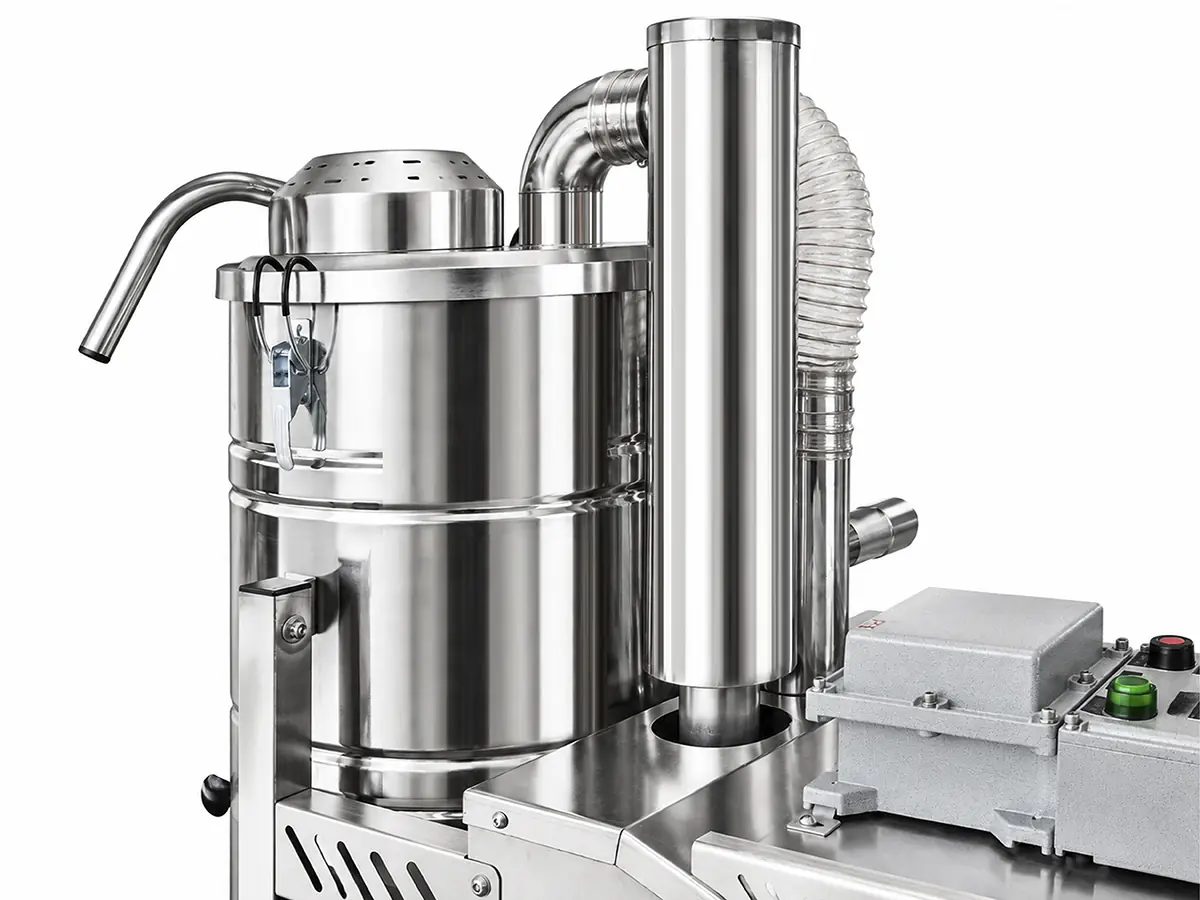

Collection and Vacuum Assembly
The image shows the collection vessel and upper vacuum assembly.
Digital Pressure Display
Digital display mounted at the vacuum inlet.

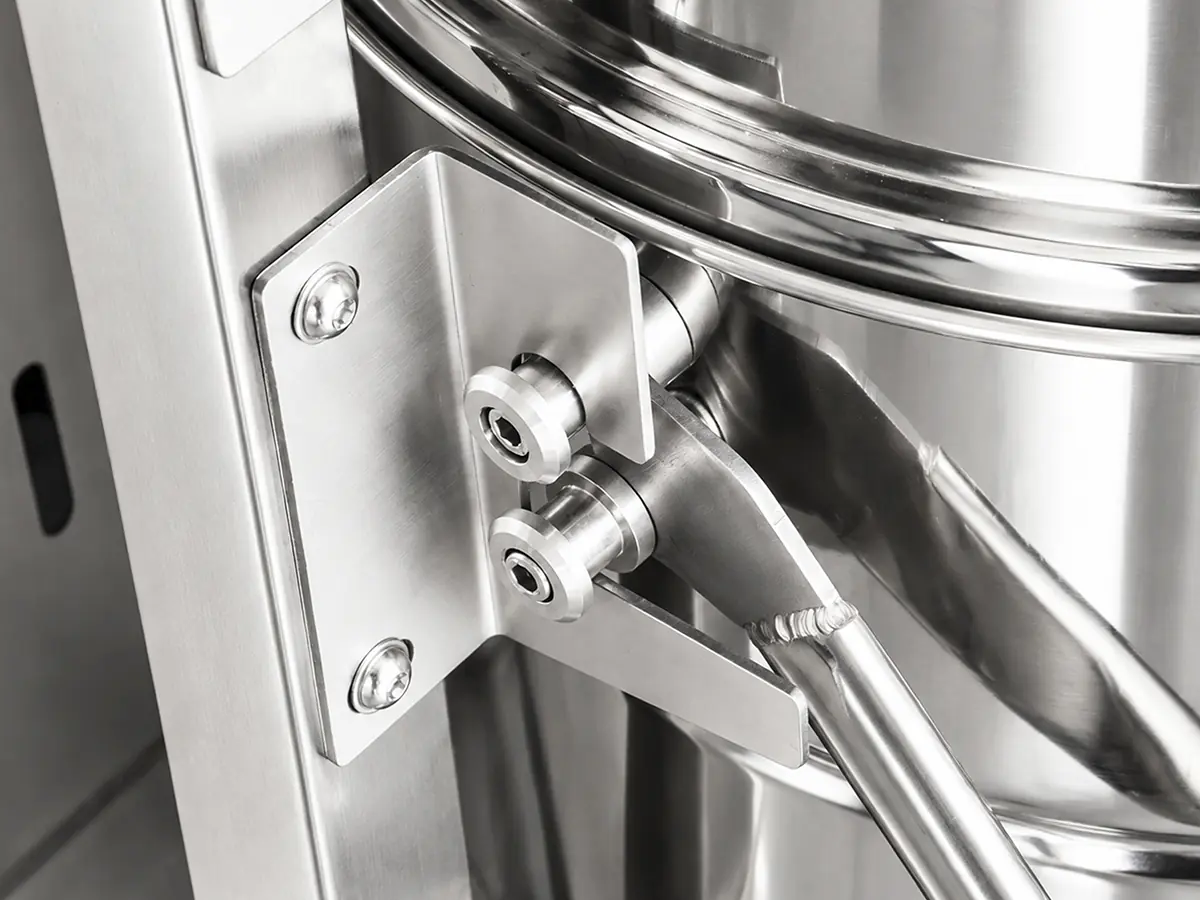

Collection Bin Clamp
Clamp and connection detail on the collection vessel.
Typical applications
Stainless-steel industrial vacuum developed for hazardous dust and controlled-risk work areas, with a 100 L collection tank.
Configuration before ordering
Confirm the material, dust type, required airflow or vacuum, operating duration, power supply, collection method and attachments for the selected model before ordering.
Download
Documents & compliance
Document scope varies by model and destination. Confirm the required files with export sales before ordering.
Product documentation
Product manual PDF
Download the product manual for this model or model family. The current files include bilingual covers and Chinese operating instructions.
